FANUC R-2000iD /100FH
Robot details

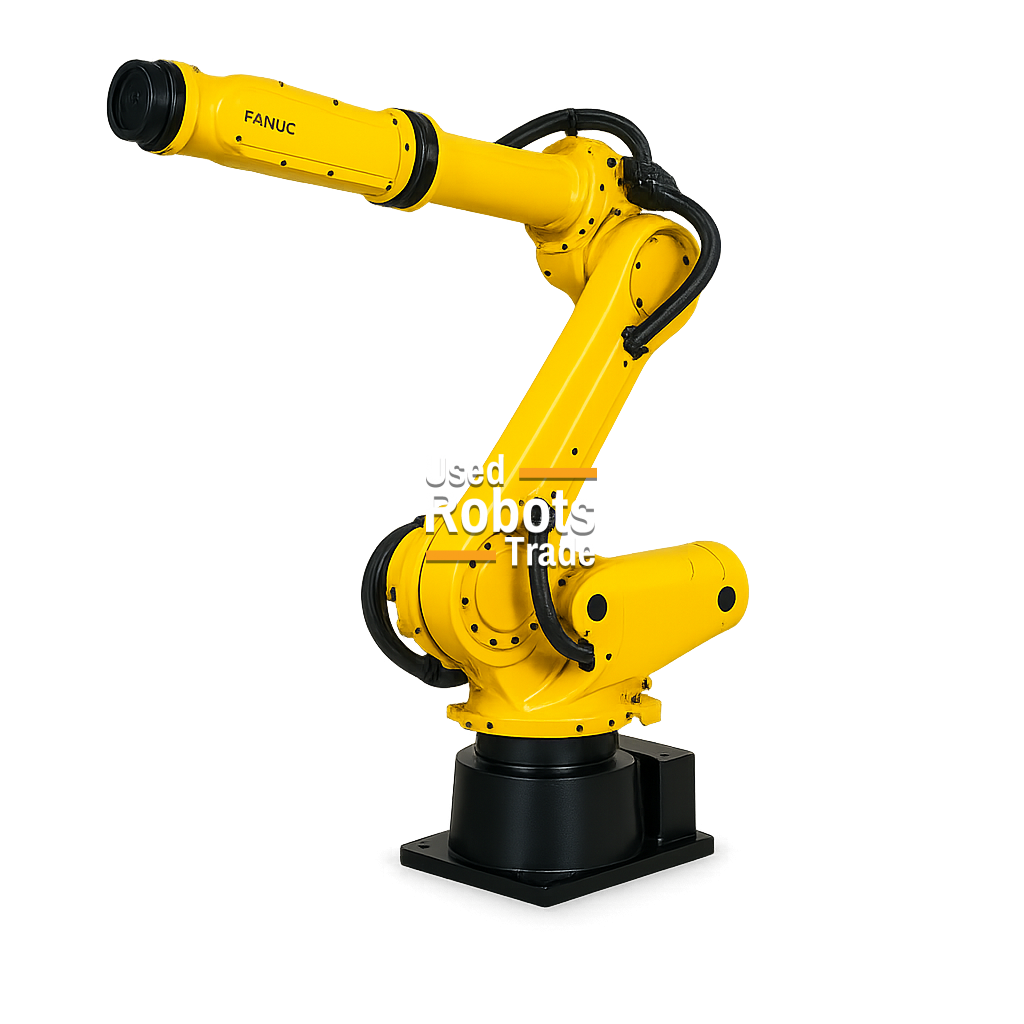

The FANUC R-2000iD/100FH industrial robot is a high-performance, heavy-duty solution designed for precision handling, spot welding, and material removal applications. Engineered for maximum efficiency and reliability, this 6-axis robot offers exceptional speed, payload capacity, and repeatability, making it ideal for demanding production environments.
Equipped with the advanced FANUC R-30iB Plus controller, the system ensures intelligent motion control, improved cycle times, and seamless integration into automated manufacturing lines. Its compact wrist design allows access to tight spaces, while its robust structure guarantees long-term durability even in harsh industrial conditions.
The R-2000iD/100FH stands out for its versatility, energy efficiency, and proven FANUC reliability, making it a top choice for automotive, metalworking, and general industry applications.
Il FANUC R-30iB Plus controller rappresenta una delle più evolute piattaforme di controllo per robot industriali, progettata per massimizzare prestazioni, precisione e facilità di integrazione nei moderni ambienti di produzione automatizzata.
The R-30iB Plus controller combines:
- High speed
- High precision
- Advanced connectivity
- Integrated safety
- Ease of use
making it an ideal choice for modern industrial applications focused on intelligent automation.
Robot applications
Technical Specifications
- Model: FANUC R-2000iD/100FH
- Axes: 6
- Maximum Payload: 100 kg
- Reach: 2230 mm
- Repeatability: ±0.05 mm
- Mounting Options: Floor, inverted, or angle mounting
- Controller: FANUC R-30iB Plus
- Protection Rating: IP67 wrist, IP54 body
- Weight: approx. 1250 kg
Motor Speeds
- J1 Axis Speed: 120°/s
- J2 Axis Speed: 120°/s
- J3 Axis Speed: 120°/s
- J4 Axis Speed: 190°/s
- J5 Axis Speed: 180°/s
- J6 Axis Speed: 260°/s
