Robot details

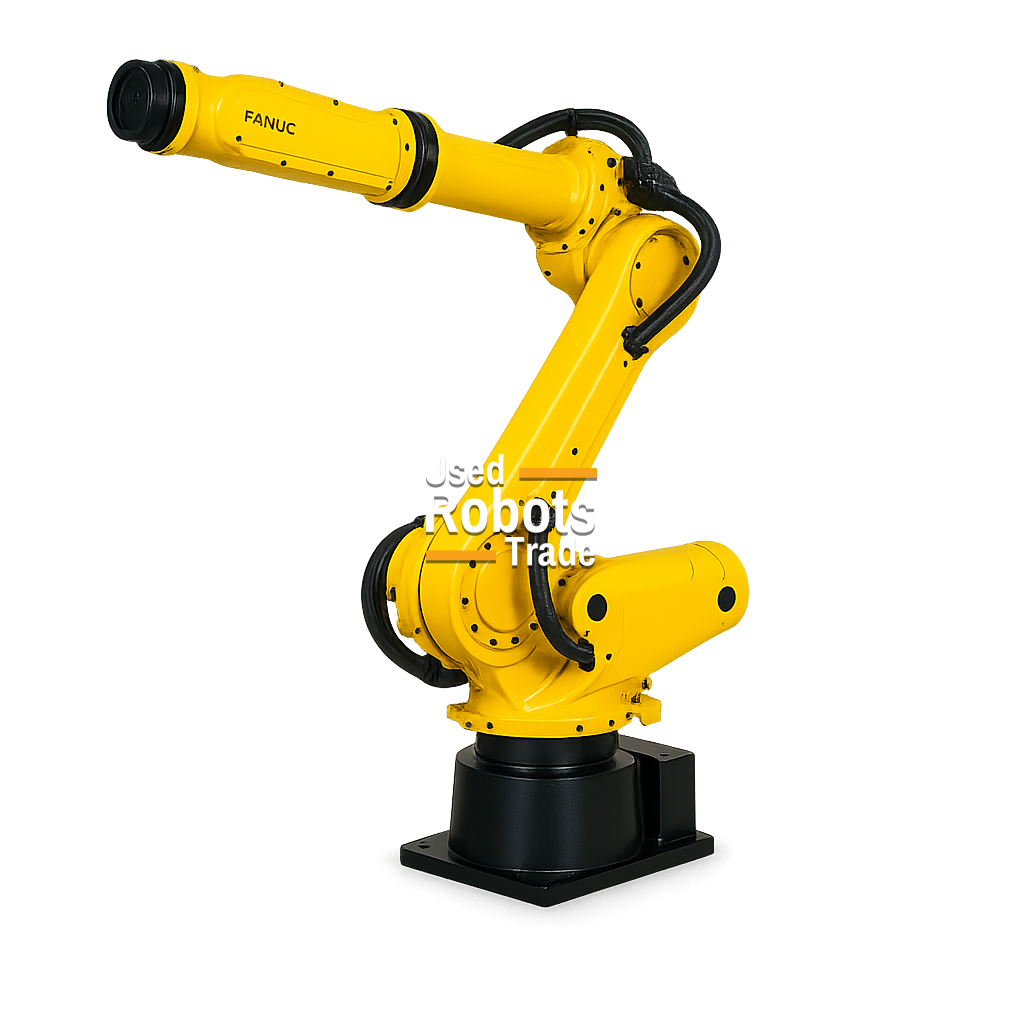

The FANUC R-2000iC/125L industrial robot is a high-performance 6-axis solution specifically designed for long-reach applications requiring precision, flexibility, and reliability. With a payload capacity of 125 kg and an extended reach, this robot is ideal for handling large parts, spot welding, palletizing, and machine tending operations.

Thanks to its elongated arm design, the R-2000iC/125L can cover a wide working area, reducing the need for additional robots and improving overall production efficiency. Its rigid structure ensures stable and repeatable motion, even at maximum reach.

Equipped with the advanced FANUC R-30iB Plus controller, this robot guarantees intelligent motion control, seamless connectivity, and optimized cycle times, making it a perfect fit for modern Industry 4.0 manufacturing environments.

The R-30iB Plus controller combines:

• High speed
• High precision
• Advanced connectivity
• Integrated safety
• Ease of use

making it an ideal solution for modern industrial applications focused on intelligent automation.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Arc welding
• Spotwelding
• Palletising
• Measurement

Technical Specifications

• Model: FANUC R-2000iC/125L
• Axes: 6
• Maximum Payload: 125 kg
• Reach: 3100 mm
• Repeatability: ±0.05 mm
• Mounting Options: Floor, inverted
• Controller: FANUC R-30iB Plus
• Protection Rating: IP67 wrist, IP54 body
• Robot Weight: approx. 1200 kg

Motor Speeds

• J1 Axis Speed: 100°/s
• J2 Axis Speed: 90°/s
• J3 Axis Speed: 100°/s
• J4 Axis Speed: 170°/s
• J5 Axis Speed: 170°/s
• J6 Axis Speed: 240°/s
