FANUC R1000iA /80F
Robot details

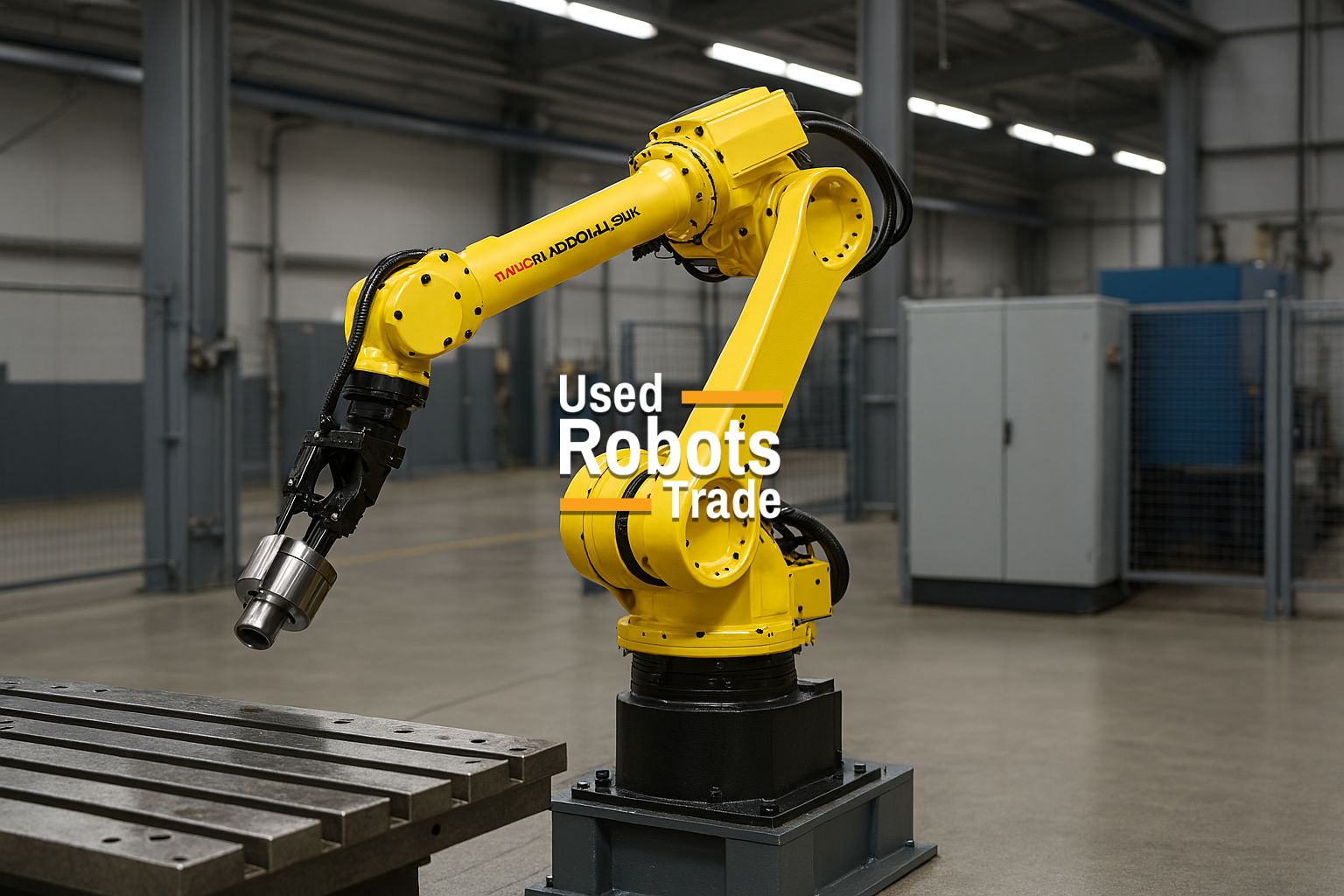

The FANUC R-1000iA/80F is a high-performance 6-axis industrial robot designed for medium payload applications up to 80 kg. Part of the R‑1000 series, it combines high speed, compact design, and exceptional reliability, making it ideal for modern automated production environments.
This robot features a slim and compact arm structure, which allows easy integration into dense robotic cells while minimizing interference with surrounding equipment. Despite its compact footprint, it provides a large working envelope with a reach of 2230 mm, ensuring flexibility in various applications.
One of its key strengths is its high acceleration and fast motion performance, which significantly reduces cycle times and improves productivity. It is particularly suited for demanding operations such as material handling, spot welding, and palletizing.
The robot is built for harsh environments, featuring IP67 protection on the wrist and J3 arm, ensuring resistance to water and dust and long operational life even in challenging industrial conditions.
It is powered by the FANUC R‑30iB / R‑30iB Plus controller, which provides advanced motion control, high processing power, and easy-to-use programming tools. The system supports integration with vision systems, sensors, and industrial networks.
The robot can be mounted on the floor or inverted (ceiling-mounted), offering high flexibility in cell design and layout
Robot applications
✅ General Specifications
- Robot type: 6-axis articulated robot
- Payload: 80 kg
- Reach: 2230 mm
- Repeatability: ±0.03 mm
- Robot weight: approx. 620 kg
- Mounting options: Floor / Inverted
- Protection rating:
- Body: IP54–IP56
- Wrist & J3 arm: IP67
Axis Speeds (Motor Speeds)
- J1: 170°/s
- J2: 140°/s
- J3: 160°/s
- J4: 230°/s
- J5: 230°/s
- J6: 350°/s
