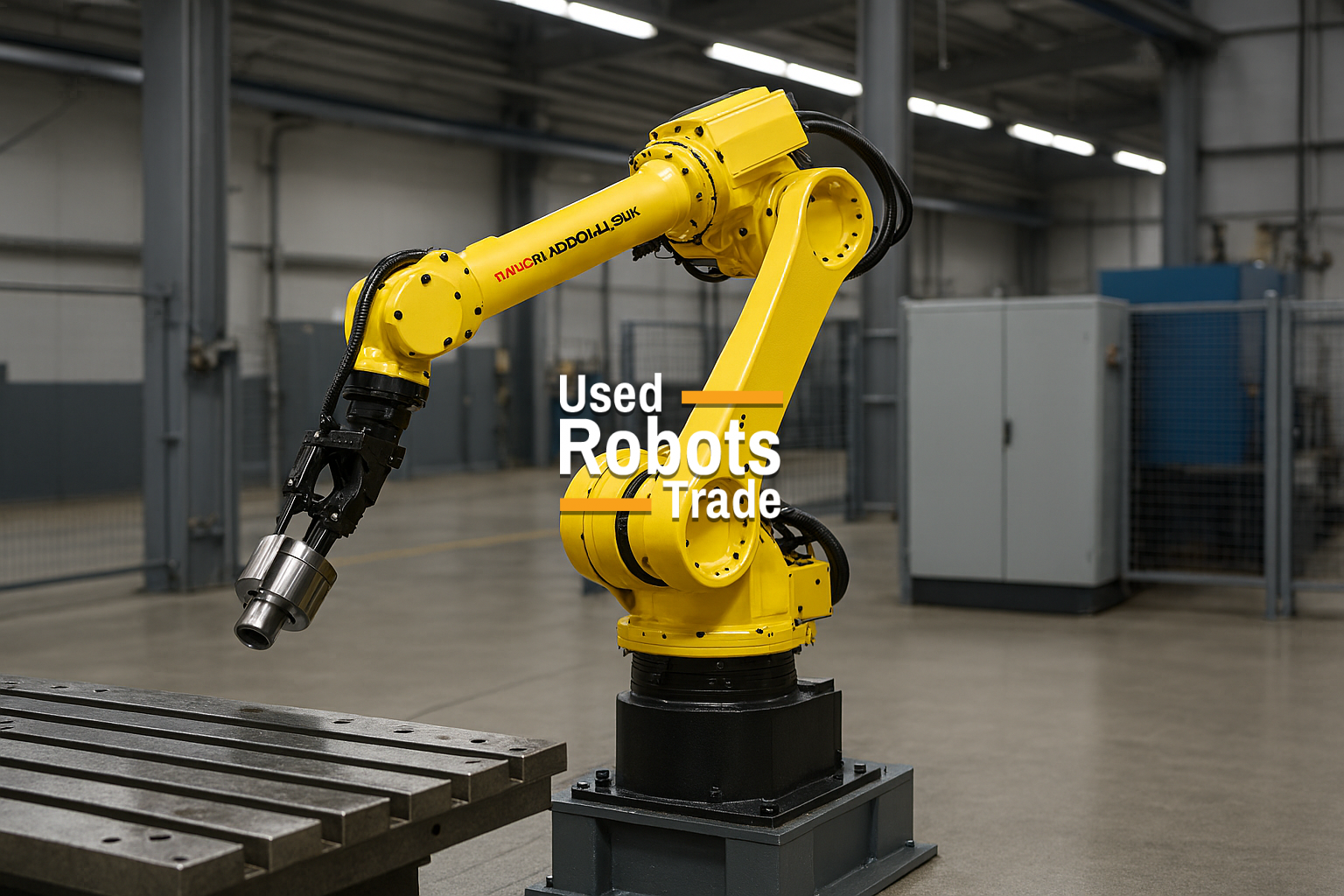

FANUC R1000iA /100F
Robot details
The FANUC R‑1000iA/100F is a high-speed 6-axis industrial robot engineered for medium payload applications up to 100 kg, combining exceptional performance, compact design, and high reliability.
Part of the advanced R‑1000 series, this robot is specifically optimized for high-speed spot welding operations, while maintaining the flexibility required for a wide range of industrial tasks. Its slim and lightweight mechanical structure enables seamless integration into compact cells and multi-robot environments, maximizing floor space efficiency.
With a reach of 2230 mm, the robot offers a large working envelope, making it suitable for diverse applications where both range and payload are critical.
The R‑1000iA/100F is built for speed and productivity. It delivers fast cycle times and high acceleration, making it an ideal solution for demanding manufacturing environments such as automotive production lines.
The robot is designed to operate in harsh industrial conditions, featuring IP67 protection on the wrist and J3 arm, ensuring resistance to dust, water, and contaminants for maximum uptime and durability.
Powered by the FANUC R‑30iB Plus controller, the robot benefits from advanced motion control, intelligent features, and intuitive programming, enabling easy integration into modern Industry 4.0 production systems.
The robot supports both floor and inverted mounting, allowing flexible cell design and optimal system layout.
Robot applications
✅ General Specifications
- Robot type: 6-axis articulated robot
- Payload: 100 kg
- Reach: 2230 mm
- Repeatability: ±0.03 mm
- Robot weight: approx. 665 kg
- Mounting: Floor / Ceiling (inverted)
- Protection rating:
- Body: IP54–IP56
- Wrist & J3 arm: IP67
✅ Axis Speeds (Motor Speeds)
- J1: 130°/s
- J2: 110°/s
- J3: 120°/s
- J4: 170°/s
- J5: 170°/s
- J6: 250°/s
