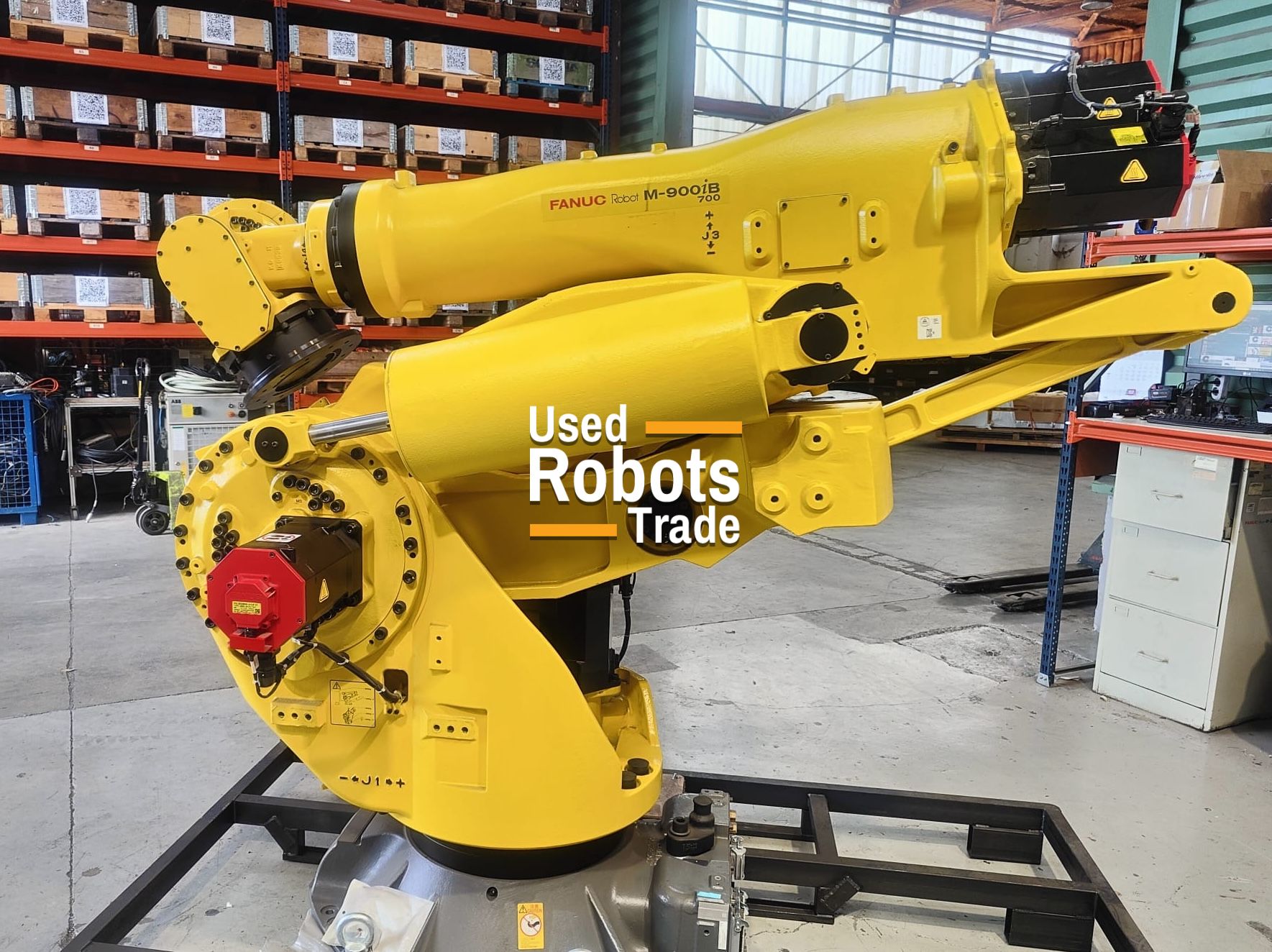

FANUC M900iB /700E
Robot details
The FANUC M-900iB/700E is an ultra-heavy payload 6-axis industrial robot engineered for the most demanding material handling, loading, unloading, machining, and assembly operations. Designed for industries that require maximum strength, precision, and durability, this robot is one of the most powerful models in the FANUC M-900 series.
With an impressive payload capacity of 700 kg and a horizontal reach of 2832 mm, the M-900iB/700E is specifically developed for handling very large and heavy components such as EV batteries, metal fabrications, automotive body parts, construction equipment, aerospace structures, and industrial machinery. Its reinforced wrist structure provides increased load moment and rigidity for highly demanding heavy-duty applications.
The robot is powered by the advanced FANUC R-30iB Plus controller, a high-performance robotic control platform designed to improve productivity, simplify operation, and deliver intelligent automation capabilities. The controller includes enhanced processing performance, expanded memory, intuitive iHMI functionality, advanced diagnostics, and compatibility with FANUC technologies such as iRVision, DCS Safety, ROBOGUIDE, and intelligent motion optimization software.
The M-900iB/700E features a highly rigid mechanical body capable of maintaining excellent positioning accuracy even under extreme loads. Its robust construction allows stable transfer and precise control of oversized workpieces during constant force applications including drilling, routing, cutting, polishing, and deburring.
This robot is also built for harsh industrial environments. The wrist and J3 arm are protected with IP67 protection as standard, while optional Severe Dust and Liquid Protection (SDLP) packages can further enhance durability in wet, dusty, or contaminated conditions.
Widely used in the automotive, aerospace, foundry, heavy steel, plastics, construction, and renewable energy industries, the FANUC M-900iB/700E provides exceptional reliability, high load capability, and advanced automation performance for large-scale industrial production systems.
Robot applications
General Specifications
| Specification | Value |
|---|---|
| Robot Type | 6-Axis Articulated Robot |
| Payload Capacity | 700 kg |
| Reach | 2832 mm |
| Repeatability | ±0.1 mm |
| Mounting Options | Floor |
| Controller | FANUC R-30iB Plus |
| Protection Rating | IP67 Wrist & J3 Arm |
| Robot Mass | Approx. 2800 kg |
| Drive System | AC Servo Motors |
Axis Motion Range and Speed
| Axis | Motion Range | Max Speed |
|---|---|---|
| J1 | ±360° | 80°/s |
| J2 | ±154° | 80°/s |
| J3 | ±160° | 80°/s |
| J4 | ±720° | 100°/s |
| J5 | ±244° | 100°/s |
| J6 | ±720° | 160°/s |
Main Applications
Heavy Material Handling
Designed for transporting extremely heavy industrial components, steel structures, EV batteries, molds, and construction parts.
Loading and Unloading
Ideal for automated loading and unloading of large machinery, presses, foundry equipment, and processing systems.
Heavy-Duty Drilling
Well suited for high-force drilling operations on aerospace structures and wind turbine blades.
Material Removal
Capable of cutting, routing, grinding, polishing, deburring, and constant-force finishing applications.
Palletizing and Part Transfer
Perfect for handling oversized products and high-capacity palletizing systems.
Automotive and EV Manufacturing
Widely used in automotive body handling and electric vehicle battery production lines.
