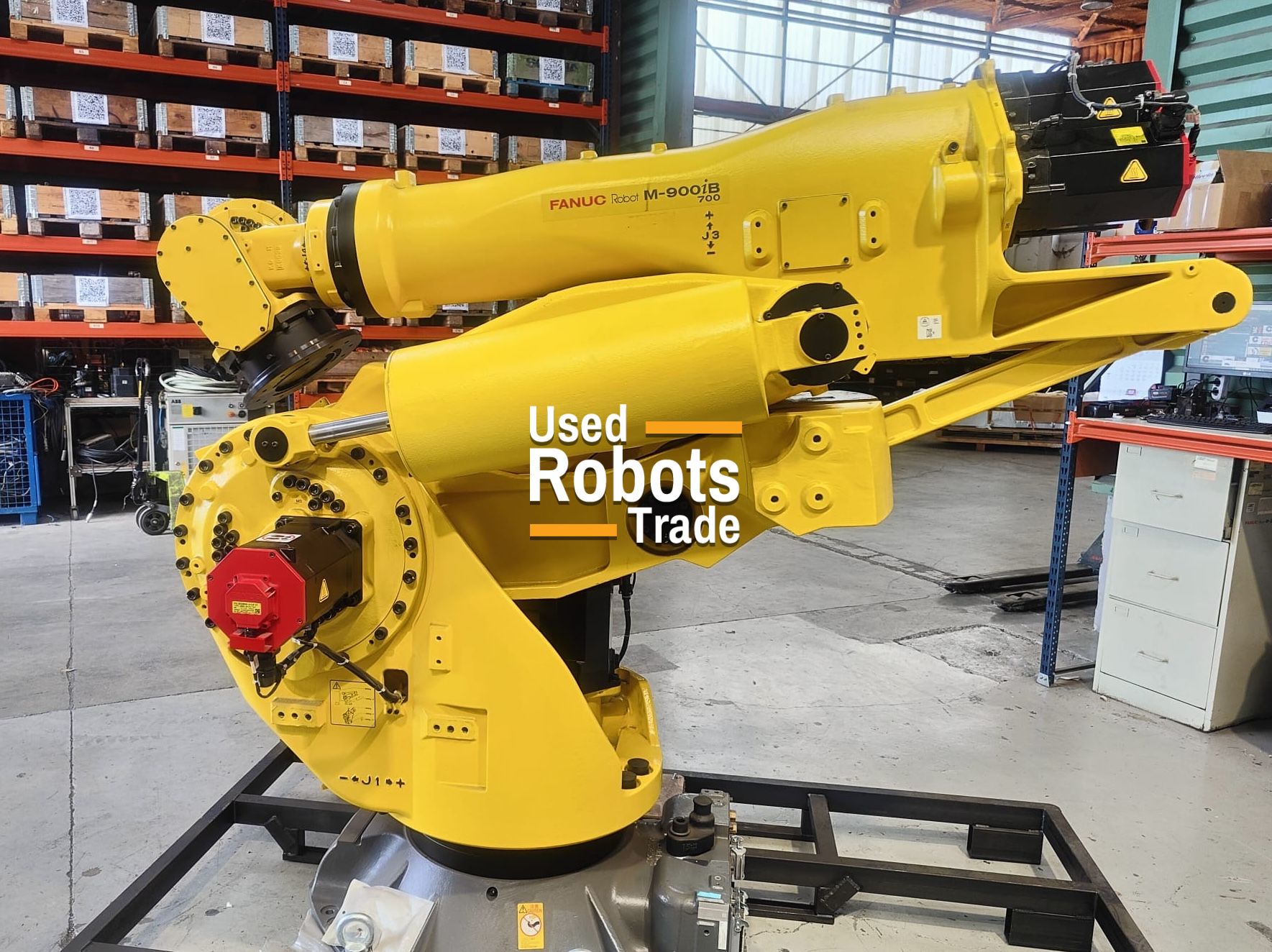

FANUC M900iB /400L
Robot details
The FANUC M-900iB/400L is a long-reach heavy payload industrial robot designed for applications requiring exceptional lifting capacity, high rigidity, and a very large working envelope. As one of the most powerful long-arm robots in the FANUC M-900 series, this 6-axis robot is engineered for industries that demand reliable handling of very large and heavy components.
With a payload capacity of 400 kg and an extended reach of 3704 mm, the M-900iB/400L is ideal for large-scale material handling, automotive press transfer, heavy palletizing, spot welding, and aerospace manufacturing operations. Its long arm configuration allows the robot to cover wide production areas while maintaining excellent repeatability and positioning precision.
The robot operates with the advanced FANUC R-30iB Plus controller, a high-performance robotic control system designed to increase productivity and simplify automation management. The controller offers advanced motion control, intelligent diagnostics, enhanced processing power, expanded memory, and compatibility with FANUC software technologies including iRVision, ROBOGUIDE, Dual Check Safety (DCS), and intelligent motion optimization systems.
Thanks to its highly rigid structure and optimized mechanical design, the M-900iB/400L can handle extremely heavy parts with stable movement and reduced vibration. This makes it particularly suitable for transferring automotive body frames, metal structures, glass panels, construction components, and oversized industrial products.
The robot is also designed to operate in harsh industrial environments. The wrist and J3 arm feature IP67 protection as standard, while optional Severe Dust and Liquid Protection (SDLP) packages provide additional protection for applications involving dust, moisture, oil, or contaminants.
The FANUC M-900iB/400L is widely used in automotive manufacturing, heavy fabrication, foundries, logistics automation, aerospace production, and large assembly systems where both long reach and ultra-heavy payload handling are required.
Robot applications
General Specifications
| Specification | Value |
|---|---|
| Robot Type | 6-Axis Articulated Robot |
| Payload Capacity | 400 kg |
| Reach | 3704 mm |
| Repeatability | ±0.1 mm |
| Mounting Options | Floor |
| Controller | FANUC R-30iB Plus |
| Protection Rating | IP67 Wrist & J3 Arm |
| Robot Mass | Approx. 3150 kg |
| Drive System | AC Servo Motors |
Axis Motion Range and Speed
| Axis | Motion Range | Max Speed |
|---|---|---|
| J1 | ±360° | 80°/s |
| J2 | ±154° | 80°/s |
| J3 | ±160° | 80°/s |
| J4 | ±720° | 100°/s |
| J5 | ±244° | 100°/s |
| J6 | ±720° | 160°/s |
Main Applications
Heavy Material Handling
Ideal for moving large industrial parts, automotive body components, steel structures, and oversized assemblies.
Press Transfer
Perfect for automotive press lines where heavy stamped parts must be transferred across wide workspaces.
Heavy Duty Spot Welding
Its rigid structure and large work envelope make it ideal for heavy welding operations.
Palletizing
Suitable for complete-layer palletizing and high-capacity end-of-line automation systems.
Aerospace and Construction Applications
Used for handling large aerospace structures, construction frames, and heavy fabricated assemblies.
Machine Loading and Part Transfer
Efficient for automatic loading, unloading, and transfer of very large workpieces.
