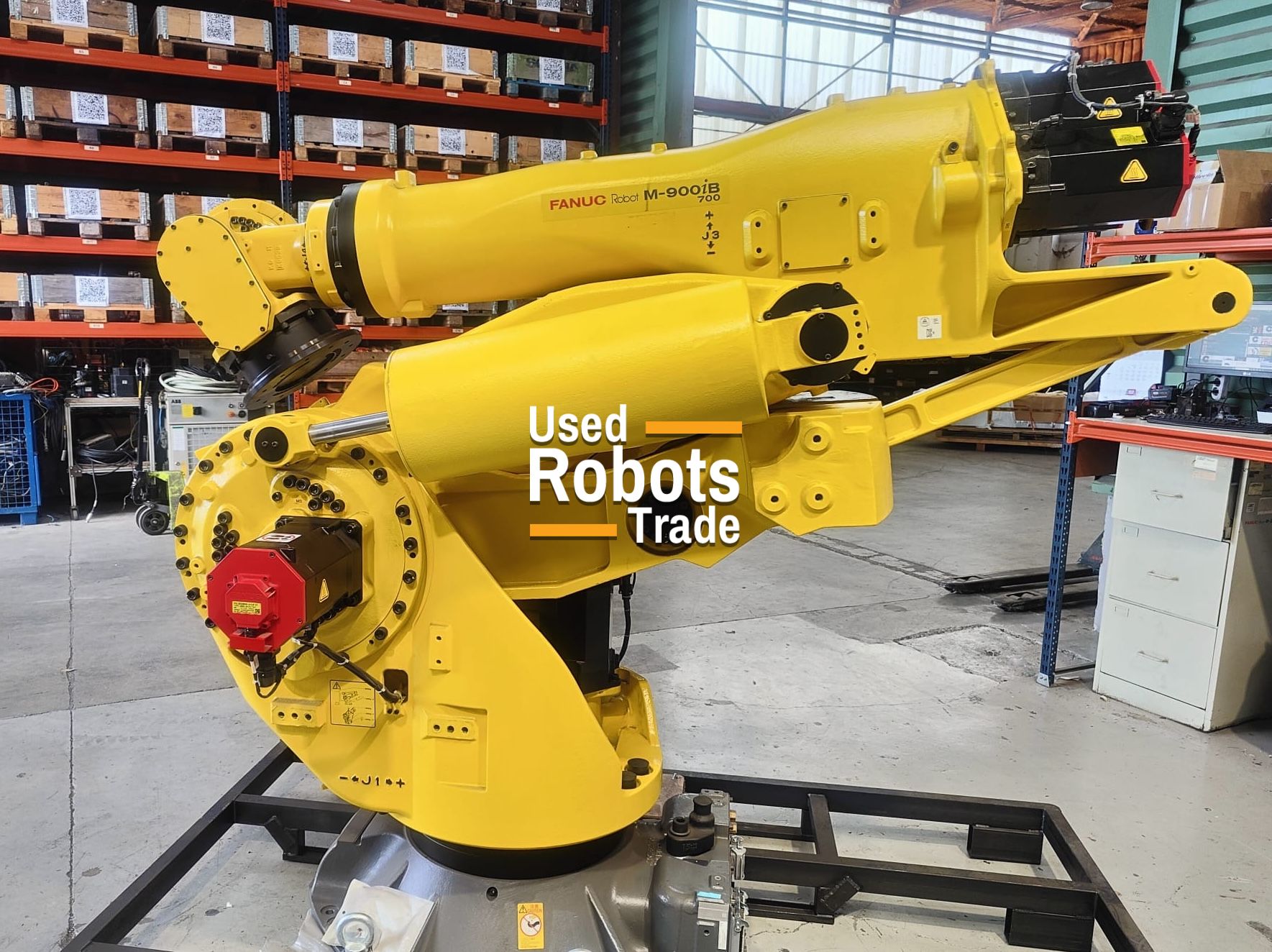

FANUC M900iB /280
Robot details
The FANUC M-900iB/280 with R-30iB Plus controller is a high-performance 6-axis industrial robot engineered for heavy payload handling, precision manufacturing, and demanding automation applications. Designed for maximum rigidity and accuracy, the M-900iB/280 offers a payload capacity of 280 kg and a reach of 2655 mm, making it ideal for automotive production, material handling, machine tending, spot welding, palletizing, roller hemming, and heavy-duty assembly operations.
Equipped with the advanced FANUC R-30iB Plus controller, this robotic system delivers enhanced processing power, faster motion performance, intuitive programming, and improved integration with Industry 4.0 manufacturing environments. The controller supports FANUC intelligent technologies such as iRVision, ROBOGUIDE simulation software, and Dual Check Safety (DCS), helping manufacturers increase productivity, reliability, and operational safety.
The FANUC M-900iB/280 robot is specifically developed for applications requiring exceptional stiffness and repeatability. Its reinforced J3 arm structure minimizes deflection and vibration during high-force operations, ensuring superior precision in drilling, cutting, machining, and roller hemming processes. With floor, ceiling, angle, and wall mounting options, the robot provides excellent flexibility for complex robotic cell layouts and compact production environments.
Built for harsh industrial conditions, the robot includes IP67 protection on the wrist and J3 arm, with optional severe dust and liquid protection packages available for challenging manufacturing environments. The R-30iB Plus controller also simplifies maintenance and diagnostics, reducing downtime and improving long-term operational efficiency.
The FANUC M-900iB/280 R-30iB Plus is widely used in automotive manufacturing, metal fabrication, aerospace production, logistics automation, and heavy material handling industries where high payload capacity, precision, and reliability are essential for continuous industrial automation
Robot applications
Robot Model: FANUC M-900iB/280
Controller: FANUC R-30iB Plus
Robot Type: 6-Axis Industrial Robot
Payload Capacity: 280 kg
Maximum Reach: 2655 mm
Repeatability: ±0.1 mm
Mounting Options: Floor, Ceiling, Angle, Wall
Protection Rating:
- Wrist & J3 arm: IP67
- Body: IP54/IP56
Mechanical Weight: approx. 1700 kg
J1 Axis: 370°
J2 Axis: 151°
J3 Axis: 224°
J4 Axis: 720°
J5 Axis: 250°
J6 Axis: 720°
Maximum Axis Speeds
J1 Axis Speed: 110°/s
J2 Axis Speed: 105°/s
J3 Axis Speed: 100°/s
J4 Axis Speed: 110°/s
J5 Axis Speed: 110°/s
J6 Axis Speed: 180°/s
