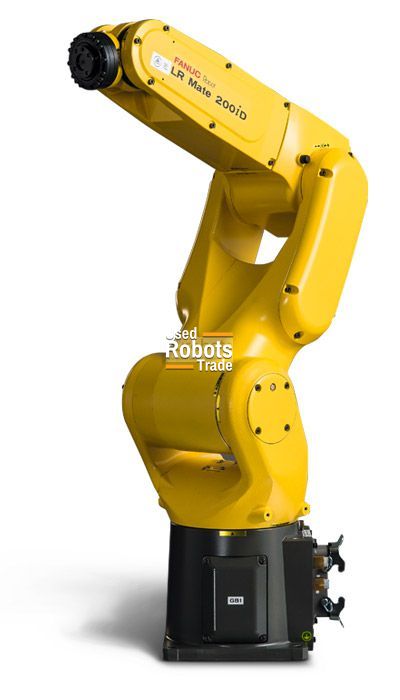

FANUC LR Mate 200iD/14L
Robot details
The FANUC LR Mate 200iD/14L is a compact and versatile 6‑axis industrial robot, designed to deliver extended reach, high payload capability, and precise performance in a small footprint. As part of FANUC’s widely trusted LR Mate 200iD series, this model is optimized for applications requiring longer reach without moving to larger robot classes.
With a maximum payload of 14 kg and an extended reach of 911 mm (long arm version “L”), the LR Mate 200iD/14L is ideal for machine tending, material handling, pick & place, and assembly applications across a wide working area. Its rigid mechanical design ensures stable motion, smooth trajectories, and reliable repeatability, even during continuous industrial operation.
Powered by the FANUC R‑30iB Mate Plus controller, the robot delivers high performance, fast processing speed, and easy integration with FANUC’s ecosystem, including vision systems, conveyors, and end‑of‑arm tooling. The compact controller allows space‑efficient installation while maintaining full functionality.
With an IP67 protection rating (full body), the LR Mate 200iD/14L is suitable for harsh environments, including dusty or wash‑down conditions, making it ideal for industries such as food processing, electronics, and metalworking.
The FANUC LR Mate 200iD/14L is the perfect solution for manufacturers seeking a reliable, long‑reach compact robot for flexible automation.
Robot applications
TECHNICAL DATA – FANUC LR Mate 200iD/14L
- Robot type: 6‑axis articulated industrial robot
- Maximum payload: 14 kg
- Maximum reach: 911 mm
- Repeatability: ±0.02 mm
- Number of axes: 6
- Robot weight: approx. 40–42 kg
- Protection rating: IP67 (full body and wrist)
- Controller: FANUC R‑30iB Mate Plus
- Mounting options: Floor, wall, inverted, angled mounting
- Integration: FANUC vision systems, conveyor tracking, EOAT compatibility
TYPICAL APPLICATIONS
- Machine tending (CNC, presses, injection molding)
- Material handling and part transfer
- Pick and place
- Assembly and sub‑assembly
- Packaging and light palletizing
- Electronics and automotive components
- Food and metalworking environments
