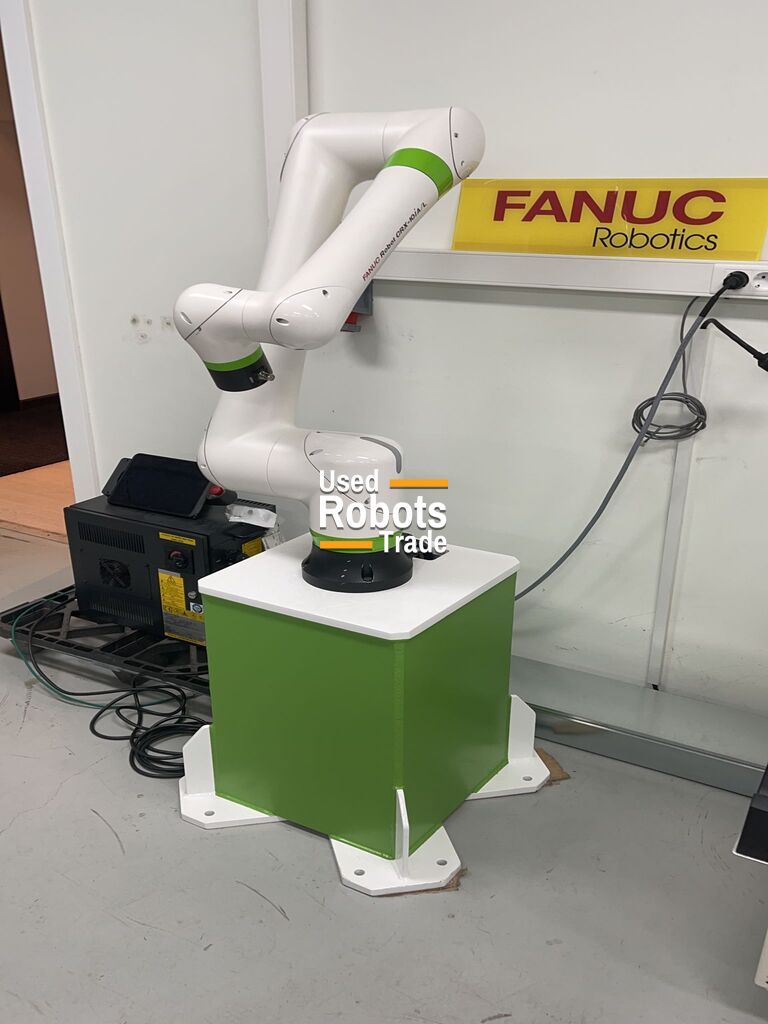

FANUC CRX 3iA 3/0.69
Robot details
The FANUC CRX‑3iA is a compact 6‑axis collaborative robot (cobot) designed for safe, flexible, and easy‑to‑deploy automation. Part of FANUC’s CRX series, this cobot is engineered to work directly alongside human operators without the need for safety fencing, making it ideal for collaborative environments.
With a maximum payload of 3 kg and a reach of 692 mm, the CRX‑3iA is optimized for precision tasks, light assembly, inspection, and material handling in small workspaces. Its lightweight design and integrated safety features allow for plug‑and‑play deployment, quick programming, and minimal integration effort.
Powered by the FANUC R‑30iB mini Plus controller, the CRX‑3iA offers reliable performance, intuitive programming, and seamless integration with FANUC’s ecosystem. The robot can be programmed using drag‑and‑drop teaching via tablet interface, enabling fast setup even for non‑expert users.
Thanks to its IP67 rating, the CRX‑3iA is also suitable for harsh or wash‑down environments, making it highly versatile across industries.
The FANUC CRX‑3iA is an excellent solution for manufacturers seeking compact collaborative automation with ease of use and high reliability.
Robot applications
TECHNICAL DATA – FANUC CRX‑3iA
- Robot type: 6‑axis collaborative industrial robot (cobot)
- Maximum payload: 3 kg
- Maximum reach: 692 mm
- Repeatability: ±0.01 mm
- Number of axes: 6
- Robot weight: approx. 27 kg
- Protection rating: IP67 (dustproof and waterproof)
- Controller: FANUC R‑30iB Mini Plus
- Safety standards: ISO 10218‑1, ISO/TS 15066 compliant
- Programming: Tablet‑based drag‑and‑drop programming + FANUC TP
- Human‑robot collaboration:
- Force limiting
- Safe stop and contact detection
TYPICAL APPLICATIONS
- Light assembly
- Pick and place
- Machine tending
- Quality inspection
- Screwdriving and small fastening
- Packaging and labeling
- Electronics and small component handling
- Laboratory and precision environments
