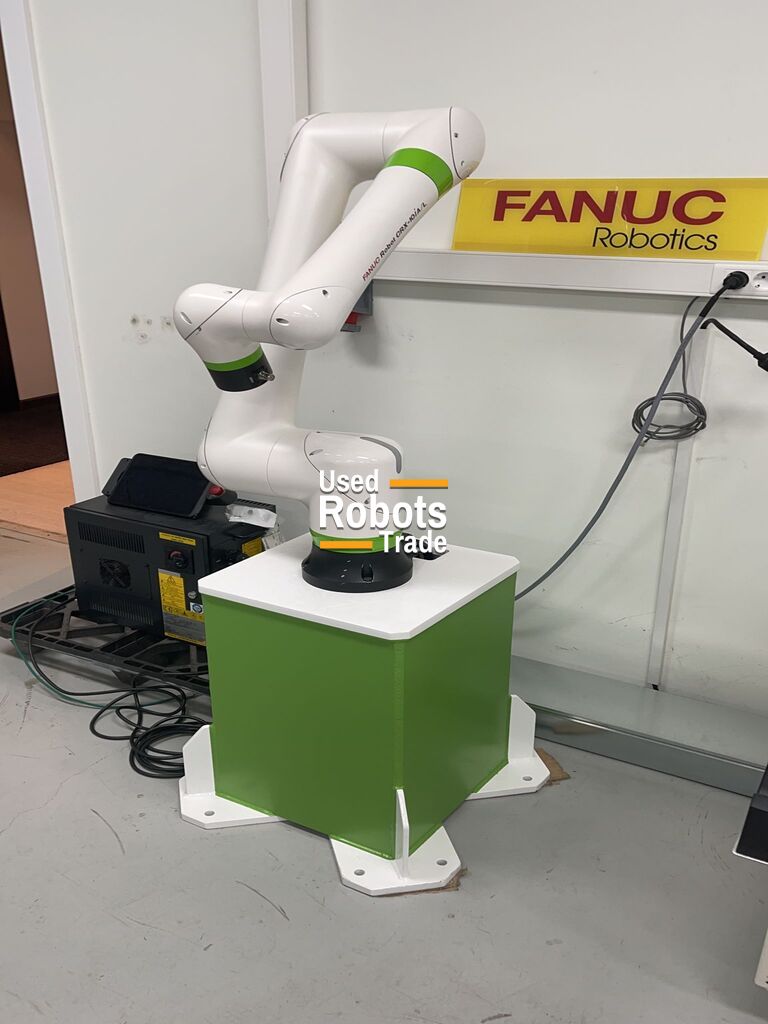

FANUC CRX 30iA
Robot details
The FANUC CRX‑30iA is a high‑payload 6‑axis collaborative robot (cobot) designed to deliver maximum lifting capacity, flexibility, and ease of use in collaborative industrial environments. As part of FANUC’s CRX series, this robot allows safe human‑robot interaction without the need for traditional safety fencing, while maintaining strong industrial performance.
With a maximum payload of 30 kg, the CRX‑30iA is one of the highest payload collaborative robots in its class, making it ideal for heavy material handling, palletizing, large component assembly, and machine tending applications. Its extended working range enables it to operate efficiently across large workspaces and production lines.
Powered by the FANUC R‑30iB Mini Plus controller, the CRX‑30iA ensures high reliability, smooth motion control, and easy system integration. The intuitive tablet‑based drag‑and‑drop programming interface allows fast setup and easy operation, even for non‑experienced users.
With an IP67 protection rating, the CRX‑30iA can operate in harsh industrial environments, including dusty or wet conditions, making it suitable for a wide range of industries.
The FANUC CRX‑30iA is the ideal solution for manufacturers seeking maximum payload collaborative automation with easy programming and proven FANUC reliability.
Robot applications
TECHNICAL DATA – FANUC CRX‑30iA
- Robot type: 6‑axis collaborative industrial robot (cobot)
- Maximum payload: 30 kg-25 kg
- Maximum reach: approx. 1,756–1,889 mm (model dependent)
- Repeatability: ±0.03 mm
- Number of axes: 6
- Robot weight: approx. 135 kg
- Protection rating: IP67 (full body)
- Controller: FANUC R‑30iB Mini Plus
- Safety standards: ISO 10218‑1, ISO/TS 15066 compliant
- Programming: Tablet‑based drag‑and‑drop + FANUC TP pendant
- Human‑robot collaboration:
- Force limiting technology
- Contact detection and safe stop functions
TYPICAL APPLICATIONS
- Heavy material handling
- Palletizing and depalletizing
- Machine tending (CNC, presses, injection molding)
- Large part handling and transfer
- Assembly and sub‑assembly of heavy components
- Packaging and logistics automation
- Warehouse and end‑of‑line operations
