FANUC CRX 20iAL 20/2.83
Robot details

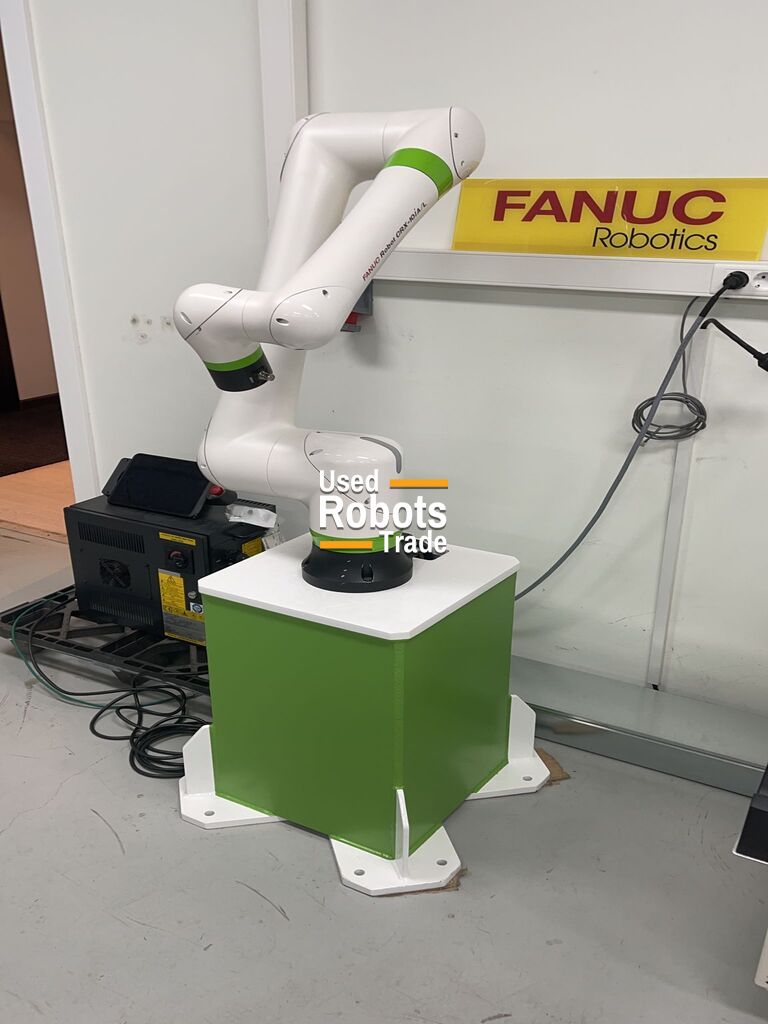

The FANUC CRX‑20iA/L is a heavy‑payload 6‑axis collaborative robot (cobot) designed for safe, high‑performance automation in large workspaces. As part of FANUC’s CRX series, this model combines collaborative safety, ease of use, and industrial robustness, enabling direct interaction with human operators without traditional safety fencing.
With a maximum payload of 20 kg and an extended reach of 2,836 mm, the CRX‑20iA/L stands out as one of the longest‑reach collaborative robots in its class, making it ideal for handling large parts, palletizing, machine tending, and material transfer over wide areas.
Powered by the FANUC R‑30iB Mini Plus controller, the robot ensures reliable, stable operation and seamless integration into industrial systems. The CRX series features tablet‑based drag‑and‑drop programming, allowing quick setup and intuitive operation even without advanced robotics expertise.
With a robust IP67 protection rating, the CRX‑20iA/L is built to withstand dust, moisture, and harsh industrial environments, making it suitable for sectors such as automotive, logistics, food, and general manufacturing.
The FANUC CRX‑20iA/L is the ideal solution for companies seeking high payload, long reach, and flexible collaborative automation in demanding production environments.
Robot applications
TECHNICAL DATA – FANUC CRX‑20iA/L
- Robot type: 6‑axis collaborative industrial robot (cobot)
- Maximum payload: 20 kg
- Maximum reach: 2,836 mm
- Repeatability: ±0.03 mm
- Number of axes: 6
- Robot weight: approx. 64 kg
- Protection rating: IP67 (full body)
- Controller: FANUC R‑30iB Mini Plus
- Safety standards: ISO 10218‑1, ISO/TS 15066 compliant
- Programming: Tablet‑based drag‑and‑drop + FANUC TP pendant
- Human‑robot collaboration:
- Force limiting
- Contact detection
- Safe stop functions
TYPICAL APPLICATIONS
- Heavy material handling
- Machine tending (CNC, presses, injection molding)
- Palletizing and depalletizing
- Large part pick & place
- Assembly and sub‑assembly
- Packaging and logistics automation
- Warehouse operations
