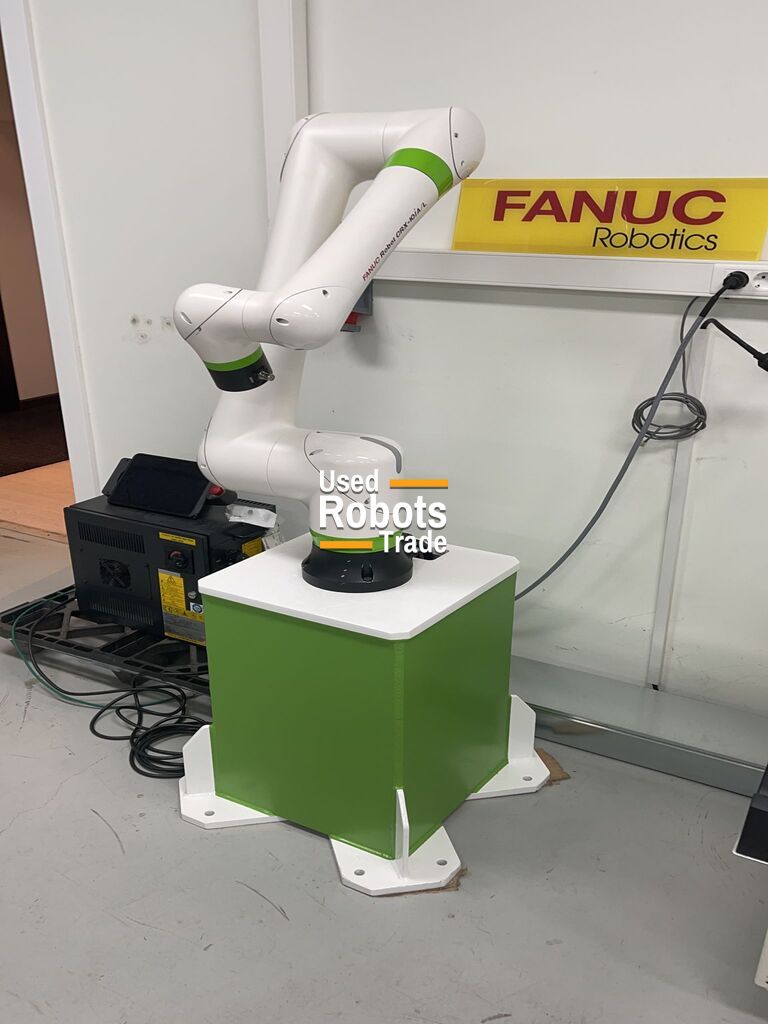

FANUC CRX 10iAL 10/1.41
Robot details
The FANUC CRX‑10iA/L is a long‑reach 6‑axis collaborative robot (cobot) designed for safe, flexible, and easy‑to‑deploy automation in industrial environments. Part of FANUC’s CRX series, this robot enables direct human‑robot collaboration without the need for safety fencing, making it ideal for modern smart factories.
With a maximum payload of 10 kg and an extended reach of 1,418 mm, the CRX‑10iA/L is perfectly suited for applications requiring longer reach and higher payload capacity, such as machine tending, palletizing, assembly, and material handling across larger workspaces.
Powered by the FANUC R‑30iB Mini Plus controller, the robot offers reliable performance, intuitive programming, and easy integration. The CRX series features tablet‑based drag‑and‑drop programming, allowing even non‑expert users to quickly set up and modify applications with minimal training.
With an IP67 rating, the CRX‑10iA/L is designed to operate in harsh industrial environments, including dusty or wet conditions. The cobot also supports FANUC’s wide range of accessories, vision systems, and end‑of‑arm tooling.
The FANUC CRX‑10iA/L is an ideal solution for manufacturers seeking long‑reach collaborative automation with ease of use, safety, and high industrial reliability.
Robot applications
TECHNICAL DATA – FANUC CRX‑10iA/L
- Robot type: 6‑axis collaborative industrial robot (cobot)
- Maximum payload: 10 kg
- Maximum reach: 1,418 mm
- Repeatability: ±0.02 mm
- Number of axes: 6
- Robot weight: approx. 39 kg
- Protection rating: IP67 (dustproof and waterproof)
- Controller: FANUC R‑30iB Mini Plus
- Safety standards: ISO 10218‑1, ISO/TS 15066 compliant
- Programming: Tablet‑based drag‑and‑drop + FANUC TP pendant
- Human‑robot collaboration:
- Force limiting
- Contact detection and safe stop
TYPICAL APPLICATIONS
- Machine tending (CNC, injection molding, presses)
- Pick and place over extended reach
- Material handling and part transfer
- Assembly and sub‑assembly
- Light palletizing
- Packaging and end‑of‑line automation
- Quality inspection
- Food, metalworking, and general manufacturing
