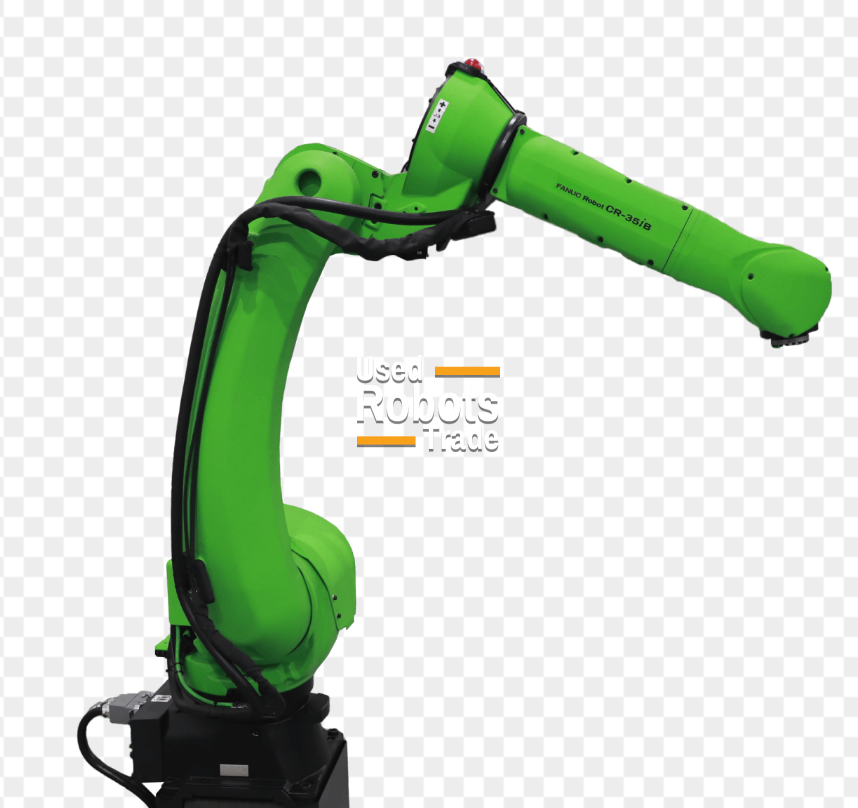

FANUC CR 35iB 35/1.83

Robot details

The FANUC CR‑35iB is a heavy‑payload 6‑axis collaborative industrial robot, specifically engineered to combine high lifting capacity with safe human‑robot interaction. As one of the most powerful collaborative robots in FANUC’s portfolio, it is designed for applications that require handling of large, bulky, or heavy components in shared workspaces.

With a maximum payload of 35 kg and a reach of 1,831 mm, the CR‑35iB is ideal for heavy material handling, machine tending, assembly of large parts, and logistics automation. Its robust structure and large working envelope allow it to operate efficiently in industrial environments where strength and flexibility are critical.

The robot features FANUC’s characteristic green protective padding, which enhances safety during interaction with human operators by reducing impact forces. Powered by the reliable FANUC R‑30iB Plus controller, the CR‑35iB ensures precise motion control, stable operation, and seamless system integration.

Unlike standard industrial robots, the CR‑35iB is designed for collaborative use, enabling safe operation without traditional safety fencing (subject to proper risk assessment). This significantly improves workflow flexibility and reduces installation costs.

The FANUC CR‑35iB is the ideal solution for manufacturers seeking high‑payload collaborative automation with proven industrial reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Assembly of parts

TECHNICAL DATA – FANUC CR‑35iB

• Robot type: 6‑axis collaborative industrial robot (cobot)
• Maximum payload: 35 kg - 50kg
• Maximum reach: 1,831 mm -1643 mm
• Repeatability: ±0.03 mm
• Number of axes: 6
• Robot weight: approx. 990 kg
• Protection rating: IP67 (dustproof and waterproof)
• Controller: FANUC R‑30iB Plus
• Safety standards: ISO 10218‑1, ISO/TS 15066 compliant
• Special feature: Soft green protective covering for safe interaction
• Human‑robot collaboration:
  • Force‑limiting design
  • Contact detection
  • Safe stop functionality

TYPICAL APPLICATIONS

• Heavy material handling
• Machine tending (CNC, presses, molding machines)
• Automotive component handling
• Assembly of large and heavy parts
• Palletizing and depalletizing
• Logistics and warehouse automation
• End‑of‑line operations
