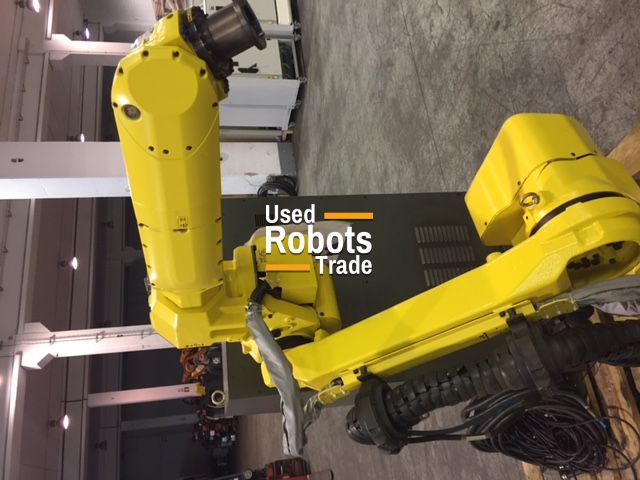

FANUC ARC MATE 50iD/7L
Robot details
The FANUC ARC Mate 50iD/7L is a compact 6‑axis industrial robot, specifically engineered for arc welding and light industrial applications requiring extended reach, high precision, and reliable performance. As part of FANUC’s dedicated ARC Mate series, this robot is optimized for continuous welding operations and harsh manufacturing environments.
With a maximum payload of 7 kg and an extended reach of 911 mm (long arm “L” version), the ARC Mate 50iD/7L is ideal for welding larger parts or accessing deeper workspaces compared to standard short‑arm models. Its slim design enables easy access to confined welding cells and complex fixtures, improving productivity and flexibility.
Powered by the FANUC R‑30iB Mate Plus controller, the robot delivers excellent motion control, smooth arc trajectories, and stable welding quality. It supports advanced welding features, including through‑arc seam tracking, multi‑pass welding, and integration with welding power sources and sensors.
With an IP67 protection rating (full body) and IP69K protection (wrist), the ARC Mate 50iD/7L is built to operate in harsh industrial environments, including welding spatter, dust, and high‑pressure cleaning conditions.
The FANUC ARC Mate 50iD/7L is the ideal solution for manufacturers seeking reliable, long‑reach robotic welding with compact integration and consistent weld quality.
Robot applications
TECHNICAL DATA – FANUC ARC Mate 50iD/7L
- Robot type: 6‑axis arc welding industrial robot
- Maximum payload: 7 kg
- Maximum reach: 911 mm
- Repeatability: ±0.02 mm
- Number of axes: 6
- Robot weight: approx. 37–40 kg
- Protection rating: IP67 (body), IP69K (wrist)
- Controller: FANUC R‑30iB Mate Plus
- Mounting options: Floor, wall, inverted, angled mounting
- Welding integration: Compatible with FANUC ArcTool™, welding power sources, seam tracking systems
TYPICAL APPLICATIONS
- Arc welding (MIG, MAG, TIG)
- Spot welding support operations
- Precision welding of small to medium components
- Automotive component welding
- Metal fabrication and general welding
- Machine tending in welding cells
- Multi‑station welding setups
