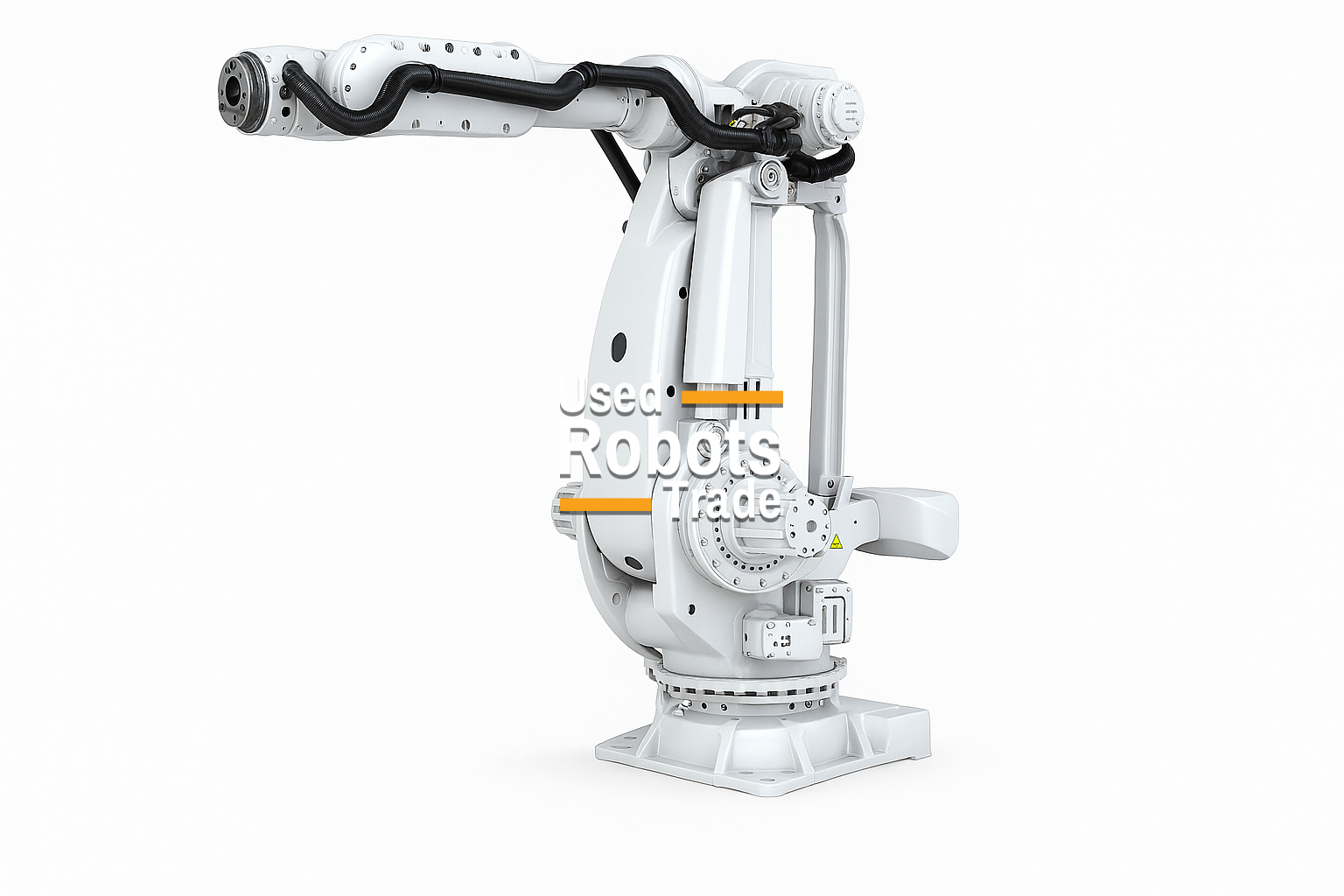

ABB IRB 7720 530/3.10

Robot details

The ABB IRB 7720‑530/3.10 is an ultra‑heavy‑duty 6‑axis industrial robot, designed to handle extremely high payloads with extended reach, superior rigidity, and long‑term reliability. As part of ABB’s top‑tier IRB 7720 platform, this robot is engineered for the most demanding industrial applications where maximum lifting capacity and stability are essential.

With a maximum payload of 530 kg and an extended reach of 3,100 mm, the IRB 7720‑530/3.10 is ideal for handling very large and heavy components such as automotive body framing assemblies, press tending operations, die and mold handling, heavy machine loading, and large structural manipulation. Its reinforced mechanical structure and optimized kinematics ensure smooth motion, high positional stability, and consistent path accuracy, even under continuous ultra‑heavy‑duty operation.

Powered by the ABB IRC5 controller, the robot takes full advantage of ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise trajectory control, synchronized axis movement, and optimized cycle times despite extreme payloads. The rigid arm design, high‑capacity joints, and reinforced base minimize deformation and vibration, ensuring safe, repeatable, and efficient automation in the harshest production environments.

The ABB IRB 7720‑530/3.10 is the ideal solution for manufacturers seeking ultra‑heavy automation with extended reach and proven ABB industrial robustness.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 7720‑530/3.10

• Robot type: 6‑axis articulated ultra‑heavy‑payload industrial robot
• Maximum payload: 530 kg
• Maximum reach: 3,100 mm
• Repeatability: ±0.1 mm (typical for ultra‑heavy robots)
• Number of axes: 6
• Robot weight: approx. 5,000–5,500 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting with reinforced heavy‑duty foundation

TYPICAL APPLICATIONS

• Automotive body framing and BIW handling
• Press tending and large transfer systems
• Die and mold handling
• Heavy machine loading and unloading
• Large structure and chassis manipulation
• Foundry, forging, and metal forming automation
• Ultra heavy‑duty industrial assembly lines
