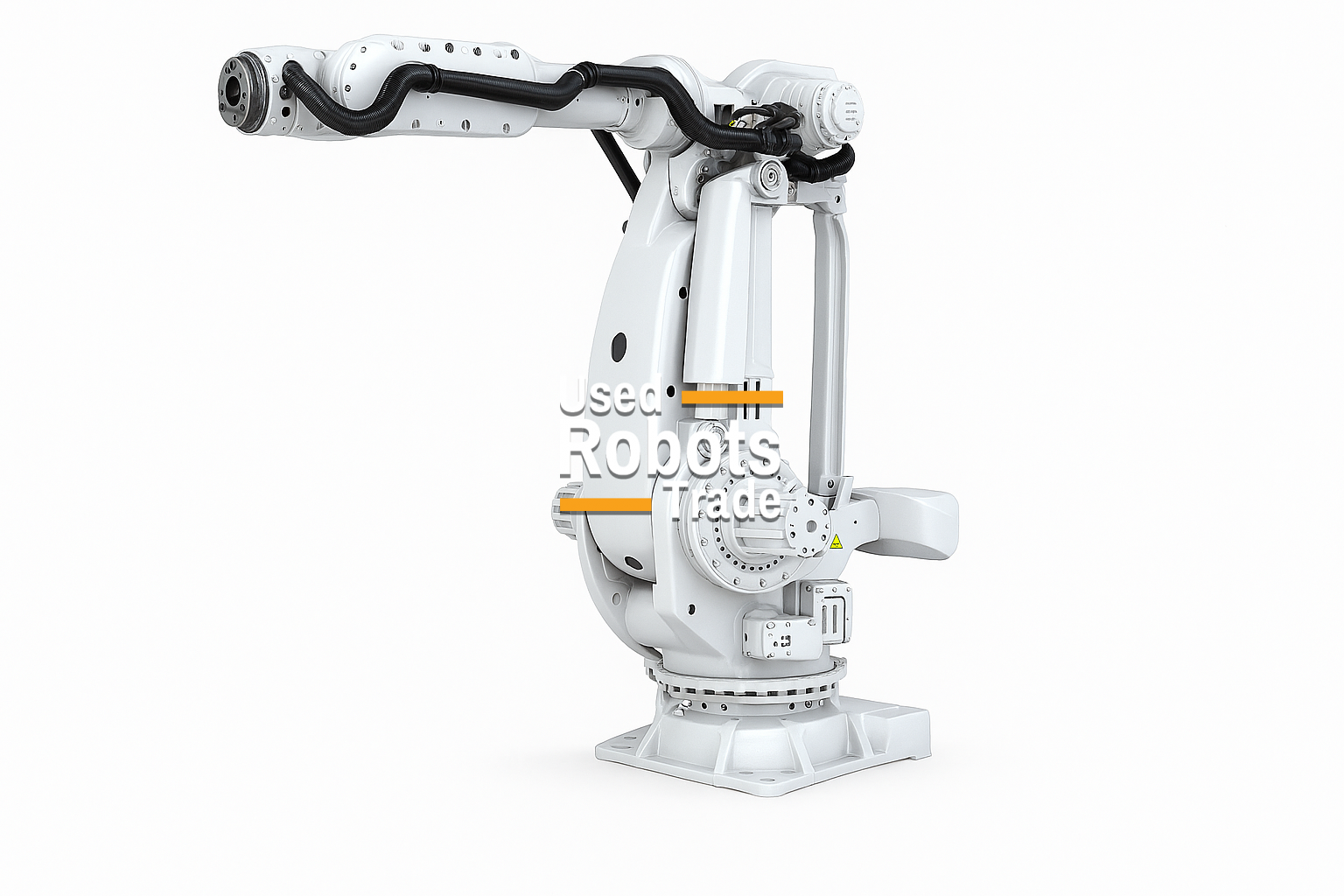

ABB IRB 7720 510/3.30

Robot details

The ABB IRB 7720‑510/3.30 is an ultra‑heavy‑duty 6‑axis industrial robot, designed to provide extreme payload capacity combined with extended reach, exceptional rigidity, and industrial‑grade reliability. As part of ABB’s flagship IRB 7720 series, this robot is engineered for the most demanding automation tasks where maximum lifting power and long operating range are essential.

With a maximum payload of 510 kg and an extended reach of 3,300 mm, the IRB 7720‑510/3.30 is ideally suited for handling very large and heavy components, including automotive body framing, press tending, die and mold handling, heavy machine loading, and manipulation of large structural assemblies. Its reinforced arm design, high‑capacity joints, and rigid base ensure smooth motion, excellent positional stability, and consistent path accuracy, even under continuous ultra‑heavy‑duty operation.

Powered by the ABB IRC5 controller, the robot fully leverages ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise trajectory control, synchronized axis movements, and optimized cycle times despite extreme payload levels. The robust mechanical architecture minimizes vibration and deformation, enabling safe, repeatable, and high‑performance automation in the harshest industrial environments.

The ABB IRB 7720‑510/3.30 is the ideal solution for manufacturers seeking ultra‑heavy automation with extended reach and proven ABB industrial robustness.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 7720‑510/3.30

• Robot type: 6‑axis articulated ultra‑heavy‑payload industrial robot
• Maximum payload: 510 kg
• Maximum reach: 3,300 mm
• Repeatability: ±0.1 mm (typical for ultra‑heavy robots)
• Number of axes: 6
• Robot weight: approx. 5,000–5,500 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting with reinforced heavy‑duty foundation

TYPICAL APPLICATIONS

• Automotive body framing and BIW handling
• Press tending and large transfer systems
• Die and mold handling
• Heavy machine loading and unloading
• Large structure and chassis manipulation
• Foundry, forging, and metal forming automation
• Ultra heavy‑duty industrial assembly lines
