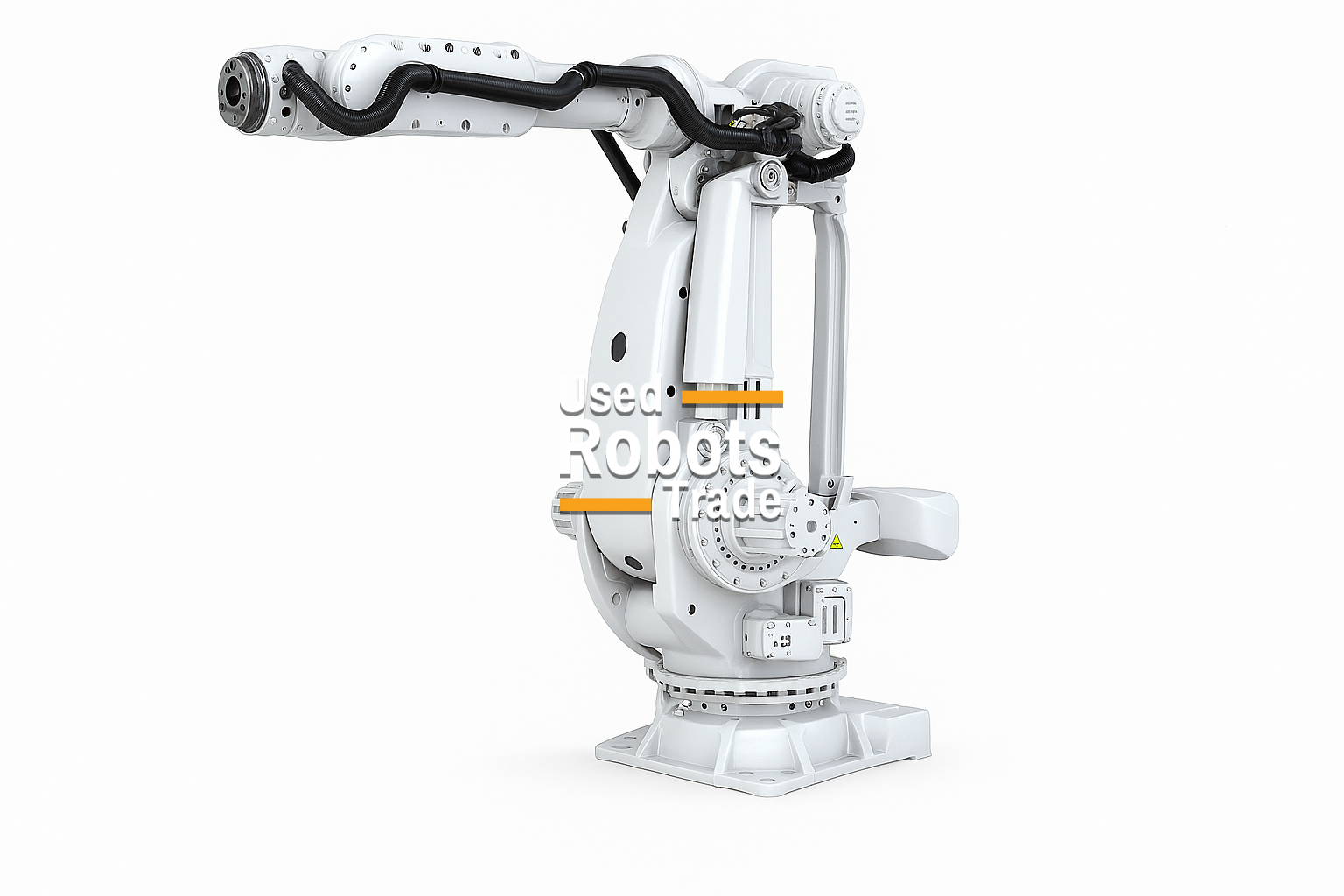

ABB IRB 7710 500/2.85

Robot details

The ABB IRB 7710‑500/2.85 is an ultra‑heavy‑duty 6‑axis industrial robot, engineered to handle extremely high payloads with maximum rigidity, precision, and long‑term reliability. As part of ABB’s high‑end IRB 7700 series, this robot is designed for industries where extreme strength, stability, and continuous operation are critical.

With an exceptional maximum payload of 500 kg and a reach of 2,850 mm, the IRB 7710‑500/2.85 is ideal for handling very large and heavy components, including automotive framing and BIW parts, press tending, heavy machine loading, die handling, and large assembly operations. Its reinforced mechanical structure and optimized arm geometry provide smooth motion, high positional stability, and consistent path accuracy, even when operating at maximum load.

Powered by the ABB IRC5 controller, the robot takes full advantage of ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, ensuring accurate trajectory control, synchronized axis movements, and optimized cycle times despite extreme payloads. The robust design minimizes vibration and deformation, guaranteeing repeatable and safe operation in the most demanding industrial environments.

The ABB IRB 7710‑500/2.85 is the ideal solution for manufacturers requiring maximum payload automation combined with proven ABB industrial robustness and reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 7710‑500/2.85

• Robot type: 6‑axis articulated ultra‑heavy‑payload industrial robot
• Maximum payload: 500 kg
• Maximum reach: 2,850 mm
• Repeatability: ±0.1 mm (typical for ultra‑heavy robots)
• Number of axes: 6
• Robot weight: approx. 4,800 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting (standard heavy‑duty installation)

TYPICAL APPLICATIONS

• Automotive body framing and BIW handling
• Press tending and transfer lines
• Die and mold handling
• Heavy machine loading and unloading
• Large structure and chassis manipulation
• Foundry and forging automation
• Ultra heavy‑duty industrial assembly lines
