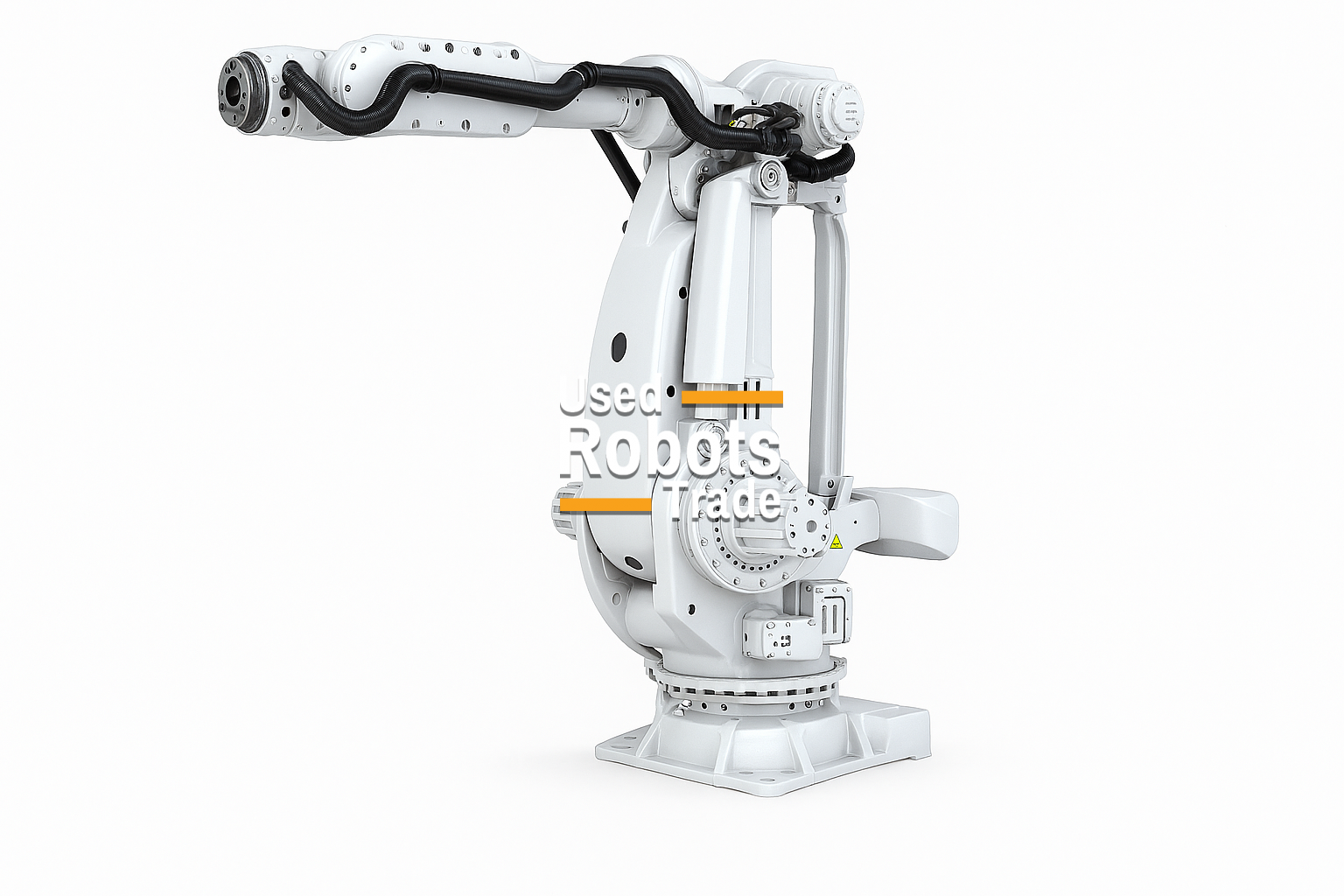

ABB IRB 7710 430/3.10

Robot details

The ABB IRB 7710‑430/3.10 is an ultra‑heavy‑duty 6‑axis industrial robot, designed to deliver exceptional payload capacity, extended reach, and maximum structural rigidity for the most demanding industrial applications. As part of ABB’s high‑performance IRB 7700 series, this robot is engineered for environments where strength, stability, and continuous operation are mission‑critical.

With a maximum payload of 430 kg and an extended reach of 3,100 mm, the IRB 7710‑430/3.10 is ideally suited for handling extremely large and heavy components, including automotive body framing and BIW assemblies, press tending, heavy machine loading, die and mold handling, and large structural manipulation. Its reinforced mechanical structure and optimized arm geometry ensure smooth, controlled motion, high positional stability, and consistent path accuracy, even at maximum load and reach.

Powered by the ABB IRC5 controller, the robot fully exploits ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise trajectory control, synchronized axis movements, and optimized cycle times despite very high payloads. The robust design minimizes vibration and deformation, ensuring safe, repeatable, and reliable operation in ultra heavy‑duty production environments.

The ABB IRB 7710‑430/3.10 is the ideal solution for manufacturers seeking extended‑reach ultra‑heavy automation with proven ABB industrial robustness and long‑term reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 7710‑430/3.10

• Robot type: 6‑axis articulated ultra‑heavy‑payload industrial robot
• Maximum payload: 430 kg
• Maximum reach: 3,100 mm
• Repeatability: ±0.1 mm (typical for ultra‑heavy robots)
• Number of axes: 6
• Robot weight: approx. 4,500–4,800 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting (heavy‑duty foundation required)

TYPICAL APPLICATIONS

• Automotive body framing and BIW handling
• Press tending and transfer systems
• Die and mold handling
• Heavy machine loading and unloading
• Large structure and chassis manipulation
• Foundry and forging automation
• Ultra heavy‑duty industrial assembly lines
