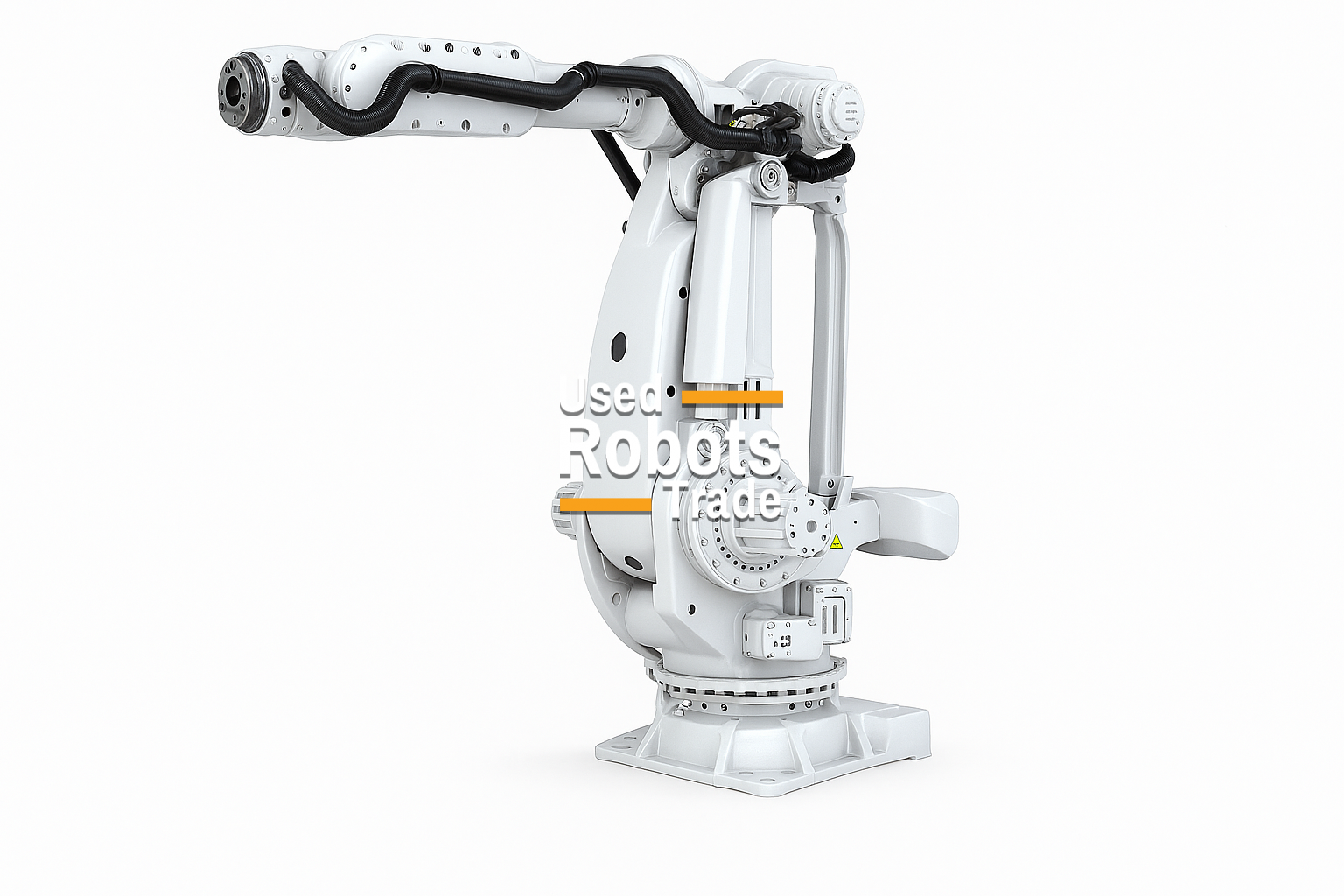

ABB IRB 7710 400/2.85 LID

Robot details

The ABB IRB 7710‑400/2.85 LID is an ultra‑heavy‑duty 6‑axis industrial robot engineered to handle extremely high payloads with outstanding rigidity, precision, and long‑term reliability. Equipped with LID (Load Integrated Drive) technology, this robot integrates the main drive directly into the robot base, significantly reducing external components and improving load distribution, dynamics, and system efficiency.

With a maximum payload of 400 kg and a reach of 2,850 mm, the IRB 7710‑400/2.85 LID is ideal for handling very large and heavy components in sectors such as automotive body framing, BIW handling, press tending, die and mold handling, heavy machine loading, and large structural assembly. Its reinforced mechanical design ensures smooth motion, high positional stability, and consistent path accuracy, even under continuous ultra‑heavy‑duty operation.

Powered by the ABB IRC5 controller, the robot fully exploits ABB’s advanced motion technologies TrueMove™ and QuickMove™, providing accurate trajectory control, synchronized axis movement, and optimized cycle times. Thanks to the Load Integrated Drive architecture, the IRB 7710‑400/2.85 LID offers higher reliability, simplified installation, easier maintenance, and a reduced total cost of ownership compared to conventional ultra‑heavy robot designs.

The ABB IRB 7710‑400/2.85 LID represents the ideal solution for manufacturers seeking maximum payload automation with modern drive technology and proven ABB industrial robustness.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 7710‑400/2.85 LID

• Robot type: 6‑axis articulated ultra‑heavy‑payload industrial robot
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 400 kg
• Maximum reach: 2,850 mm
• Repeatability: ±0.1 mm (typical for ultra‑heavy robots)
• Number of axes: 6
• Robot weight: approx. 4,500–4,800 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting with heavy‑duty foundation; compact layout enabled by LID design

TYPICAL APPLICATIONS

• Automotive body framing and BIW handling
• Press tending and large transfer systems
• Die and mold handling
• Heavy machine loading and unloading
• Large structure and chassis manipulation
• Foundry and forging automation
• Ultra heavy‑duty industrial assembly lines
