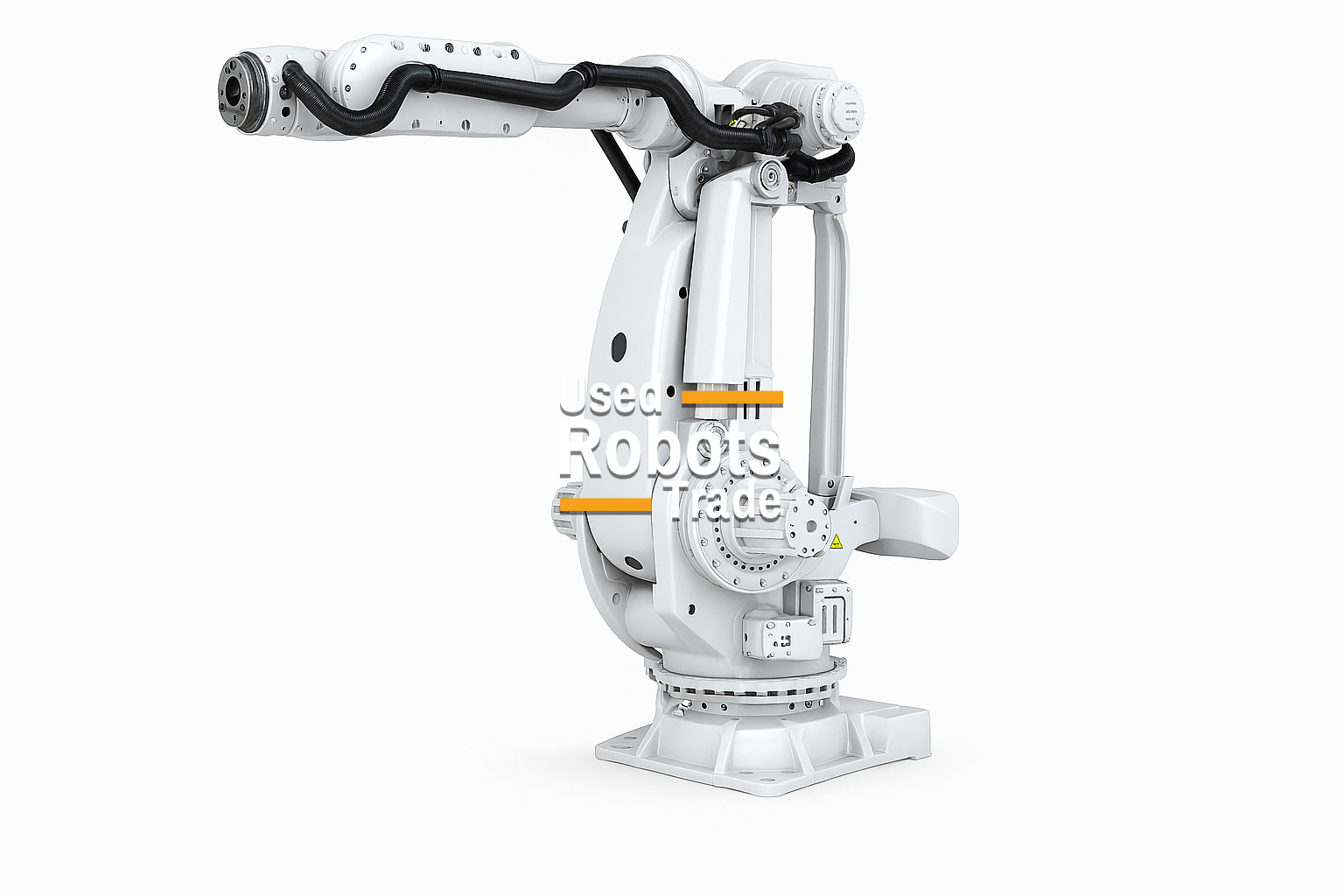

ABB IRB 7710 390/3.10 LID

Robot details

The ABB IRB 7710‑390/3.10 LID is an ultra‑heavy‑duty 6‑axis industrial robot, designed for applications that require very high payload capacity, extended reach, and maximum mechanical rigidity. Featuring LID (Load Integrated Drive) technology, this robot integrates the main drive directly into the robot base, reducing external components, improving load distribution, and increasing overall system efficiency and reliability.

With a maximum payload of 390 kg and an extended reach of 3,100 mm, the IRB 7710‑390/3.10 LID is ideally suited for handling extremely large and heavy components in demanding environments such as automotive body framing and BIW handling, press tending, die and mold handling, heavy machine loading, and large structural assembly. Its reinforced arm and base construction ensure smooth motion, high positional stability, and consistent path accuracy, even under continuous ultra‑heavy‑duty operation.

Powered by the ABB IRC5 controller, the robot fully exploits ABB’s advanced motion technologies TrueMove™ and QuickMove™, guaranteeing precise trajectory control, synchronized axis movement, and optimized cycle times despite very high payloads. Thanks to the Load Integrated Drive architecture, the IRB 7710‑390/3.10 LID delivers higher uptime, simplified installation, reduced maintenance, and lower total cost of ownership compared to conventional ultra‑heavy robot solutions.

The ABB IRB 7710‑390/3.10 LID is the ideal solution for manufacturers seeking long‑reach ultra‑heavy automation with modern drive technology and proven ABB industrial robustness.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 7710‑390/3.10 LID

• Robot type: 6‑axis articulated ultra‑heavy‑payload industrial robot
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 390 kg
• Maximum reach: 3,100 mm
• Repeatability: ±0.1 mm (typical for ultra‑heavy robots)
• Number of axes: 6
• Robot weight: approx. 4,500–4,800 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting with heavy‑duty foundation; compact layout enabled by LID design

TYPICAL APPLICATIONS

• Automotive body framing and BIW handling
• Press tending and large transfer lines
• Die and mold handling
• Heavy machine loading and unloading
• Large structure and chassis manipulation
• Foundry and forging automation
• Ultra heavy‑duty industrial assembly systems
