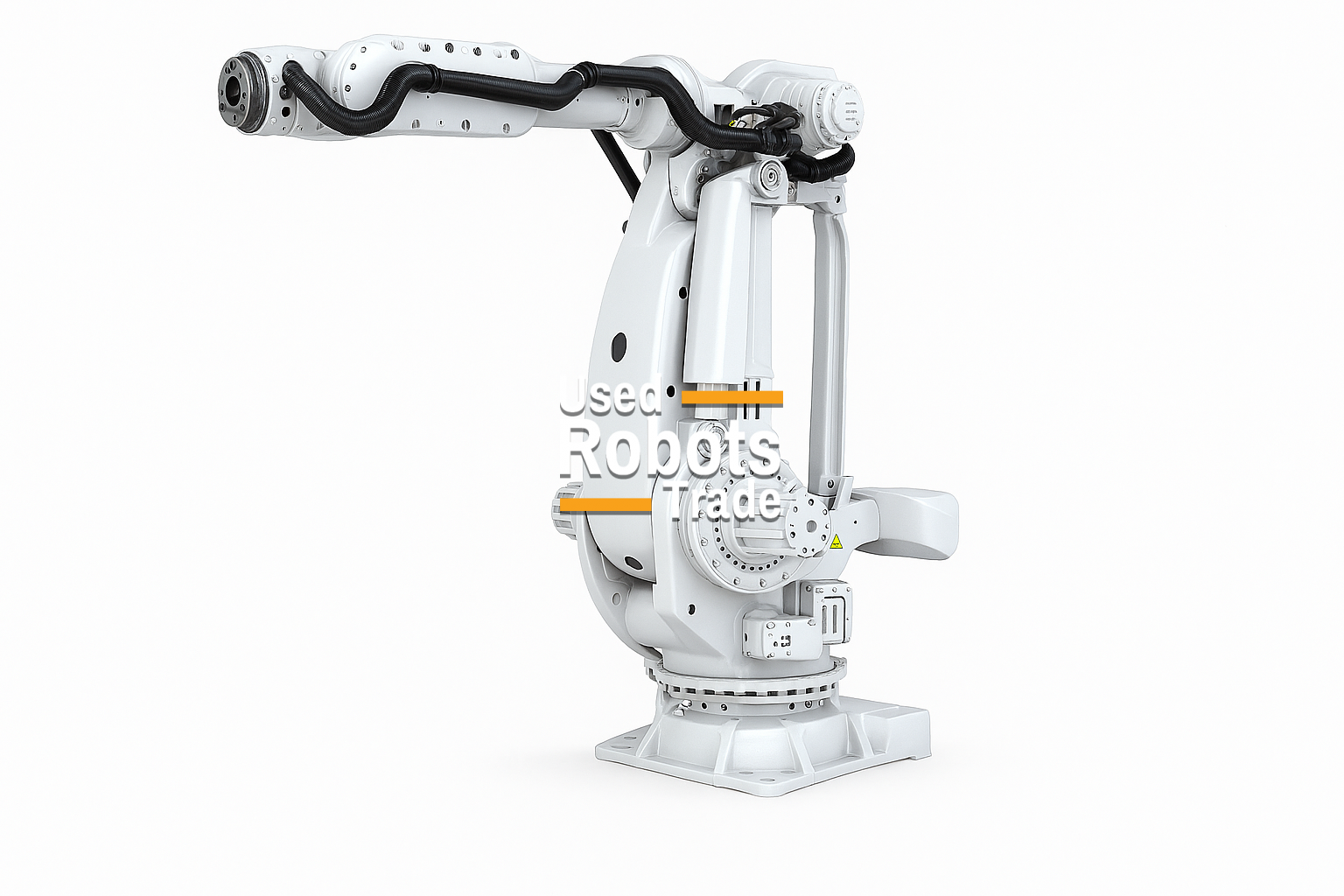

ABB IRB 7710 360/3.30

Robot details

The ABB IRB 7710‑360/3.30 is an ultra‑heavy‑duty 6‑axis industrial robot, engineered to combine very high payload capacity with extended reach and exceptional structural rigidity. Part of ABB’s advanced IRB 7700 series, this robot is designed for the most demanding industrial applications requiring maximum strength, stability, and continuous high‑duty operation.

With a maximum payload of 360 kg and an extended reach of 3,300 mm, the IRB 7710‑360/3.30 is ideal for handling extremely large and heavy components over wide work envelopes. Typical applications include automotive body framing and BIW handling, press tending, die and mold transfer, heavy machine loading, and manipulation of large structures. Its reinforced arm design and rigid base ensure smooth motion, high positional stability, and consistent path accuracy, even at maximum load and reach.

Powered by the ABB IRC5 controller, the robot fully utilizes ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, providing accurate trajectory control, synchronized axis movements, and optimized cycle times. The robust mechanical architecture minimizes vibration and deformation, ensuring safe, repeatable, and reliable operation in ultra heavy‑duty production environments.

The ABB IRB 7710‑360/3.30 is the ideal solution for manufacturers seeking long‑reach ultra‑heavy automation with proven ABB industrial reliability and durability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 7710‑360/3.30

• Robot type: 6‑axis articulated ultra‑heavy‑payload industrial robot
• Maximum payload: 360 kg
• Maximum reach: 3,300 mm
• Repeatability: ±0.1 mm (typical for ultra‑heavy robots)
• Number of axes: 6
• Robot weight: approx. 4,500–4,800 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting (heavy‑duty foundation required)

TYPICAL APPLICATIONS

• Automotive body framing and BIW handling
• Press tending and large transfer systems
• Die and mold handling
• Heavy machine loading and unloading
• Large structure and chassis manipulation
• Foundry and forging automation
• Ultra heavy‑duty industrial assembly lines
