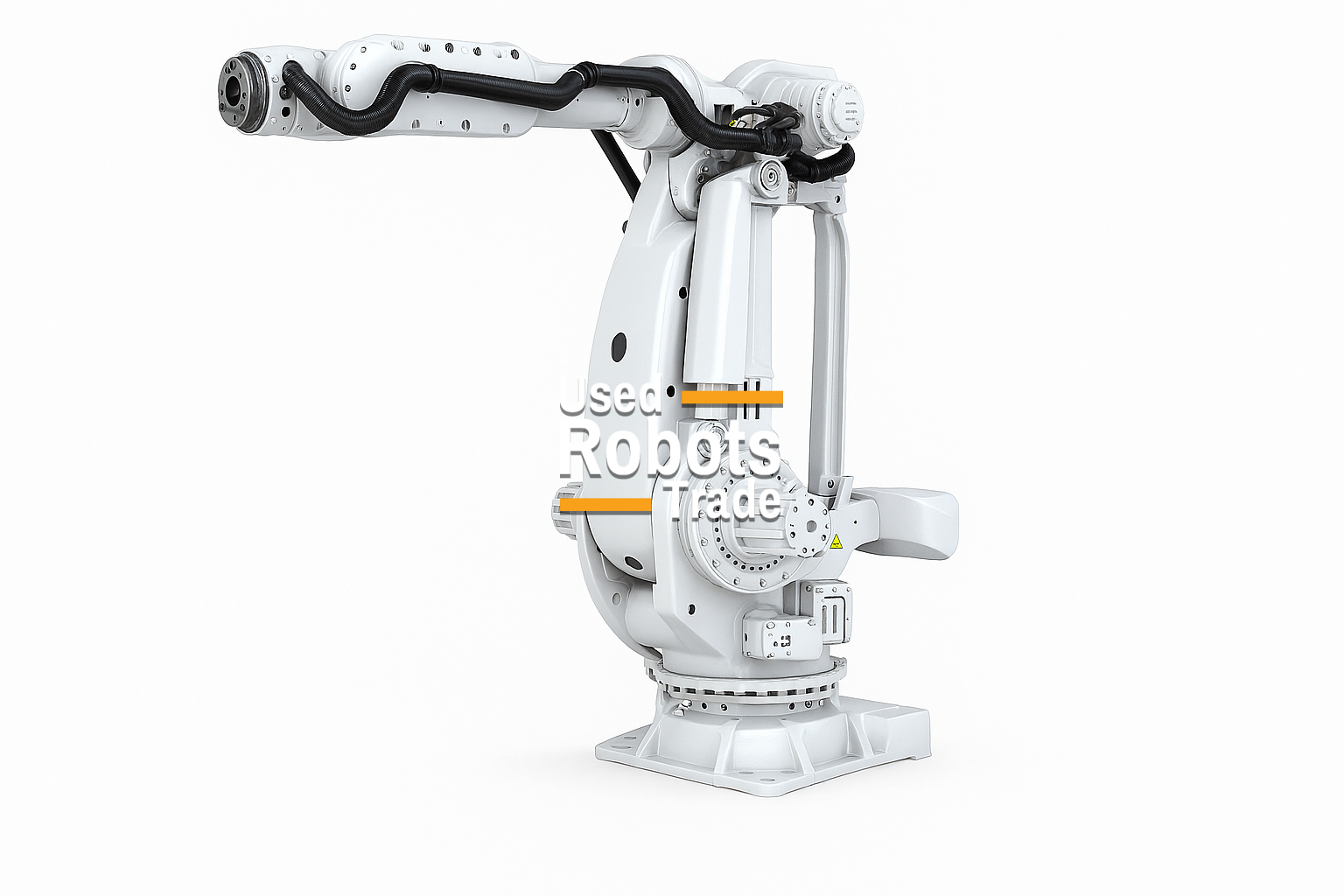

ABB IRB 7710 280/3.50 LID

Robot details

The ABB IRB 7710‑280/3.50 LID is an ultra‑heavy‑duty 6‑axis industrial robot, engineered to deliver very high payload capacity combined with extra‑long reach and exceptional structural rigidity. Featuring LID (Load Integrated Drive) technology, the main drive is integrated directly into the robot base, reducing external components while improving load distribution, motion dynamics, and overall system reliability.

With a maximum payload of 280 kg and an extended reach of 3,500 mm, the IRB 7710‑280/3.50 LID is ideal for handling extremely large and heavy components across wide work envelopes. Typical applications include automotive body framing and BIW handling, press tending, die and mold handling, heavy machine loading, and large structure manipulation. Its reinforced arm and base construction ensure smooth motion, high positional stability, and consistent path accuracy, even during continuous ultra‑heavy‑duty operation at maximum reach.

Powered by the ABB IRC5 controller, the robot fully exploits ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise trajectory control, synchronized axis movements, and optimized cycle times despite extreme payloads. Thanks to the Load Integrated Drive architecture, the IRB 7710‑280/3.50 LID offers higher uptime, simplified installation, reduced maintenance, and lower total cost of ownership compared to conventional ultra‑heavy robot solutions.

The ABB IRB 7710‑280/3.50 LID is the perfect solution for manufacturers seeking extra‑long‑reach ultra‑heavy automation with modern drive technology and proven ABB industrial robustness.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 7710‑280/3.50 LID

• Robot type: 6‑axis articulated ultra‑heavy‑payload industrial robot
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 280 kg
• Maximum reach: 3,500 mm
• Repeatability: ±0.1 mm (typical for ultra‑heavy robots)
• Number of axes: 6
• Robot weight: approx. 4,500–4,800 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting with heavy‑duty foundation; compact layout enabled by LID design

TYPICAL APPLICATIONS

• Automotive body framing and BIW handling
• Press tending and long transfer systems
• Die and mold handling
• Heavy machine loading and unloading
• Large structure and chassis manipulation
• Foundry and forging automation
• Ultra heavy‑duty industrial assembly and transfer lines
