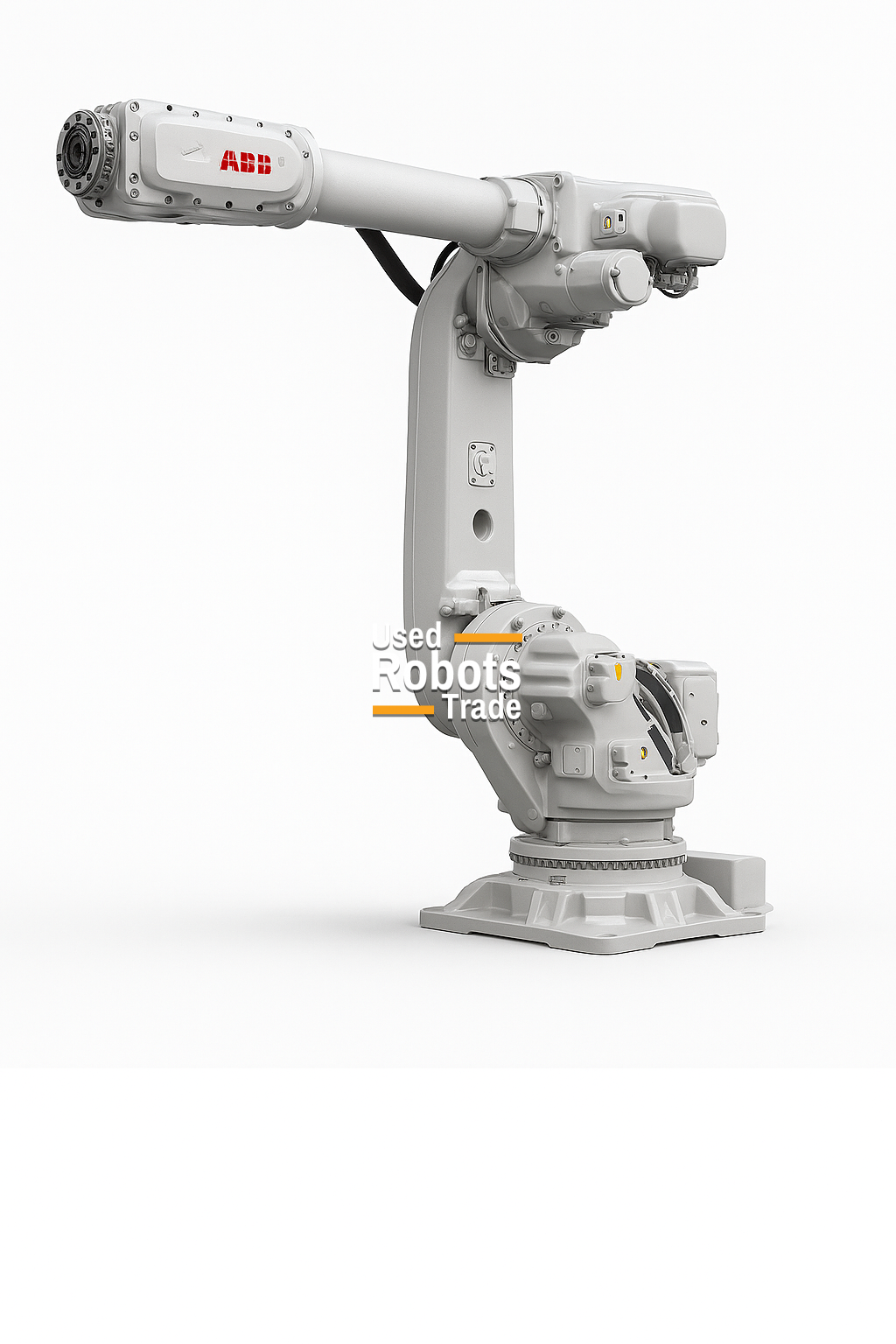

ABB IRB 6790 235/2.65

Robot details

The ABB IRB 6790‑235/2.65 is a compact, very heavy‑duty 6‑axis industrial robot, engineered to deliver exceptional payload capacity within a reduced footprint. Part of ABB’s proven IRB 6700 series, the IRB 6790 is optimized for applications where high lifting capability, rigidity, and space efficiency are critical.

With a maximum payload of 235 kg and a reach of 2,650 mm, the IRB 6790‑235/2.65 is ideal for heavy material handling, automotive body‑in‑white (BIW) handling, press tending, machine loading, and dense automation cells. Its compact arm geometry and rigid mechanical structure ensure excellent stiffness, smooth motion, and stable path accuracy, even during continuous high‑duty industrial operation.

Powered by the ABB IRC5 controller, the robot benefits from ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, enabling precise trajectory control, synchronized axis movements, and optimized cycle times. The compact design allows high‑density robot layouts, maximizing productivity while minimizing required floor space.

The ABB IRB 6790‑235/2.65 is the ideal solution for manufacturers seeking very high payload performance combined with compact installation and proven ABB industrial reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 6790‑235/2.65

• Robot type: 6‑axis articulated very heavy‑payload industrial robot
• Maximum payload: 235 kg
• Maximum reach: 2,650 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 1,270–1,300 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting (standard)

TYPICAL APPLICATIONS

• Heavy material handling
• Automotive body‑in‑white (BIW) handling
• Press tending and transfer systems
• Heavy machine loading and unloading
• Part transfer and staging
• High‑density automation layouts
• General very heavy‑duty industrial automation
