ABB IRB 6750 S 350/3.20

Robot details

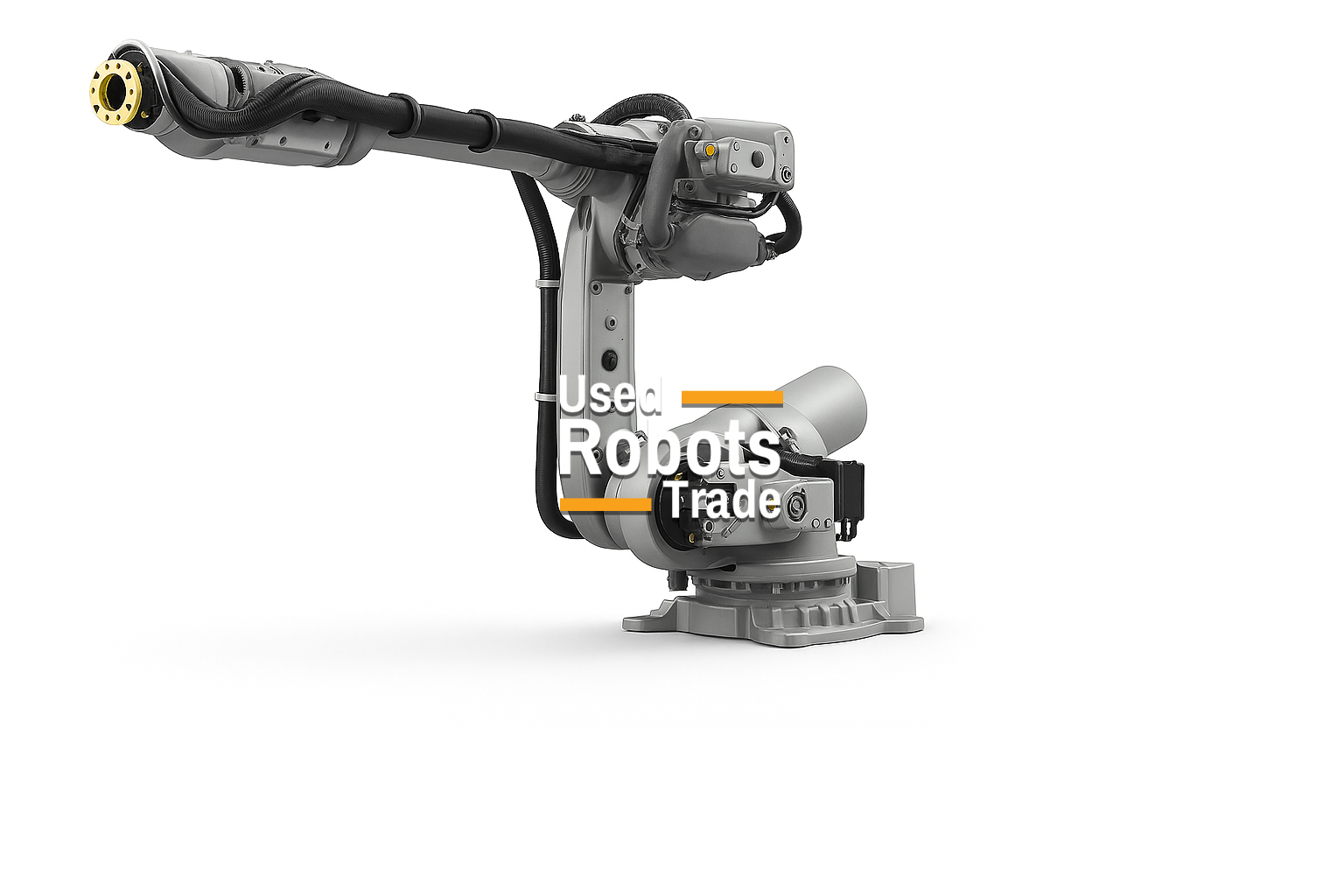

The ABB IRB 6750 S‑350/3.20 is an extra‑heavy‑duty 6‑axis industrial robot, specifically designed in the Shelf (S) configuration for high‑payload applications requiring elevated or side mounting. This version is ideal for production layouts where floor space optimization and top‑mounted or rear‑mounted handling are essential.

With an exceptional maximum payload of 350 kg and a reach of 3,200 mm, the IRB 6750 S‑350/3.20 is engineered for very large and heavy components, delivering outstanding rigidity, stable motion, and high positional accuracy even under extreme loads. The shelf‑mounted design enables efficient handling of parts from above or from elevated positions, making it particularly suitable for automotive body handling, press tending, and large structure manipulation.

Powered by the ABB IRC5 controller, the robot takes full advantage of ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, ensuring smooth trajectories, synchronized axis movements, and optimized cycle times despite the high payload. The robust mechanical structure and proven ABB reliability make the IRB 6750 S‑350/3.20 a trusted solution for continuous heavy‑duty industrial operation.

The ABB IRB 6750 S‑350/3.20 is the ideal choice for manufacturers seeking maximum payload capacity, long reach, and flexible shelf‑mounted automation in demanding production environments.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts
• Stud welding

TECHNICAL DATA – ABB IRB 6750 S‑350/3.20

• Robot type: 6‑axis articulated extra‑heavy‑payload industrial robot (Shelf version)
• Maximum payload: 350 kg
• Maximum reach: 3,200 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 3,100 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation type: Shelf / elevated mounting (above or side of production area)

TYPICAL APPLICATIONS

• Automotive body and BIW handling
• Press tending and transfer lines
• Large structure and frame handling
• Casting and foundry automation
• Heavy palletizing of oversized loads
• High‑duty industrial transfer systems
• Production cells with floor space constraints
