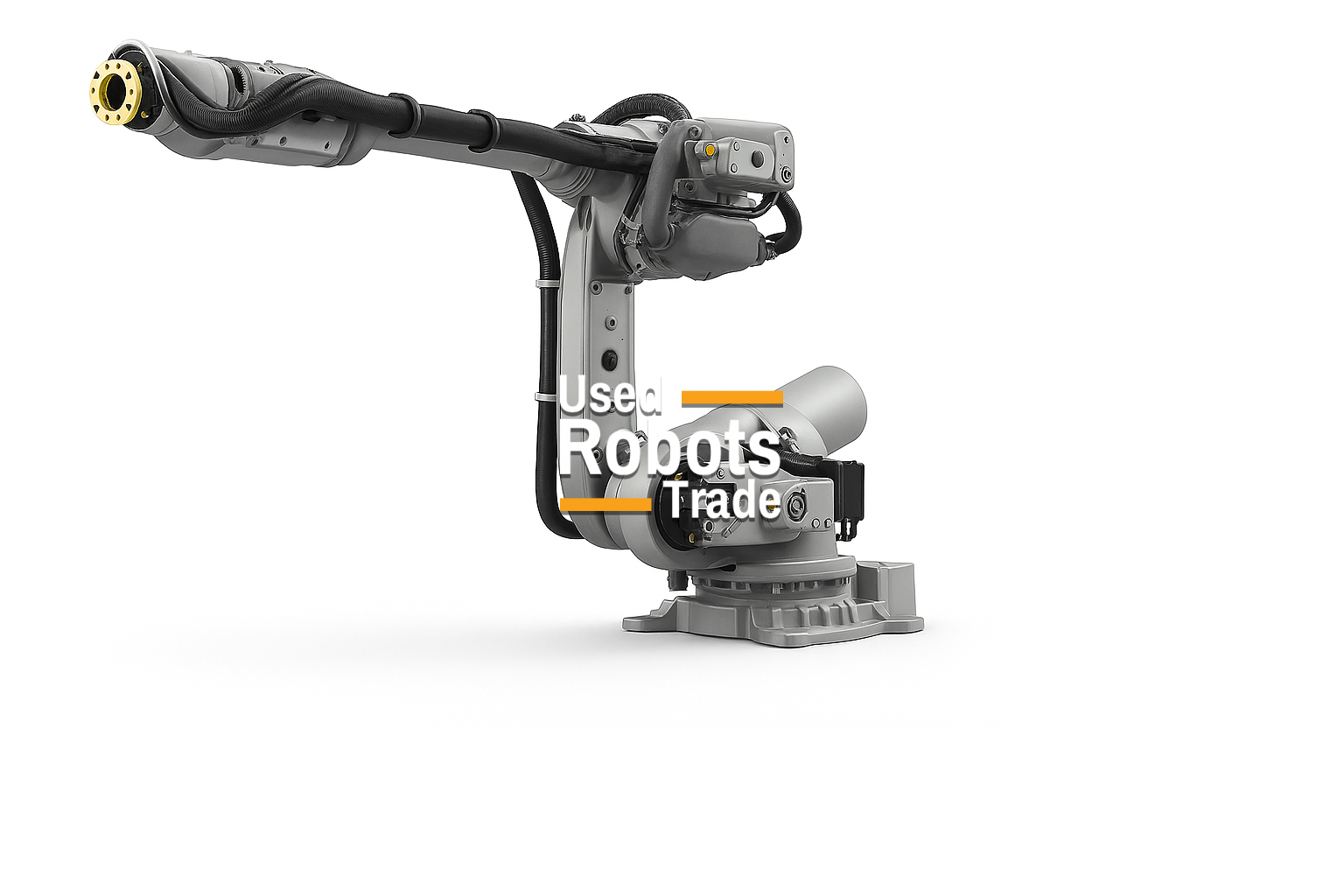

ABB IRB 6750 S 270/3.20 LID

Robot details

The ABB IRB 6750 S‑270/3.20 LID is an extra‑heavy‑duty 6‑axis industrial robot, specifically designed in the Shelf (S) configuration and equipped with LID (Load Integrated Drive) technology for maximum performance, reliability, and compact system integration. This advanced architecture integrates the main drive directly into the robot structure, reducing external components and improving load distribution.

With a maximum payload of 270 kg and a reach of 3,200 mm, the IRB 6750 S‑270/3.20 LID is ideal for handling very large and heavy components over wide work areas, especially in production layouts that require overhead or side mounting. The reinforced mechanical structure ensures exceptional rigidity, smooth motion, and stable path accuracy, even under continuous high‑duty conditions.

Powered by the ABB IRC5 controller, the robot utilizes ABB’s proven motion technologies such as TrueMove™ and QuickMove™, ensuring precise trajectory control, synchronized axis movements, and optimized cycle times despite extreme payloads. The combination of Shelf mounting and Load Integrated Drive maximizes floor space efficiency, simplifies maintenance, and lowers total cost of ownership.

The ABB IRB 6750 S‑270/3.20 LID represents an ideal solution for manufacturers requiring powerful, long‑reach, shelf‑mounted automation with state‑of‑the‑art drive technology and industrial durability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 6750 S‑270/3.20 LID

• Robot type: 6‑axis articulated extra‑heavy‑payload industrial robot (Shelf version)
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 270 kg
• Maximum reach: 3,200 mm
• Repeatability: ±0.06 mm
• Number of axes: 6
• Robot weight: approx. 3,000 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation type: Shelf / overhead or side mounting with compact LID design

TYPICAL APPLICATIONS

• Automotive body‑in‑white (BIW) handling
• Press tending and transfer lines
• Large structure and frame manipulation
• Foundry and casting automation
• Heavy palletizing of oversized loads
• High‑duty industrial transfer systems
• Production environments requiring optimized floor space
