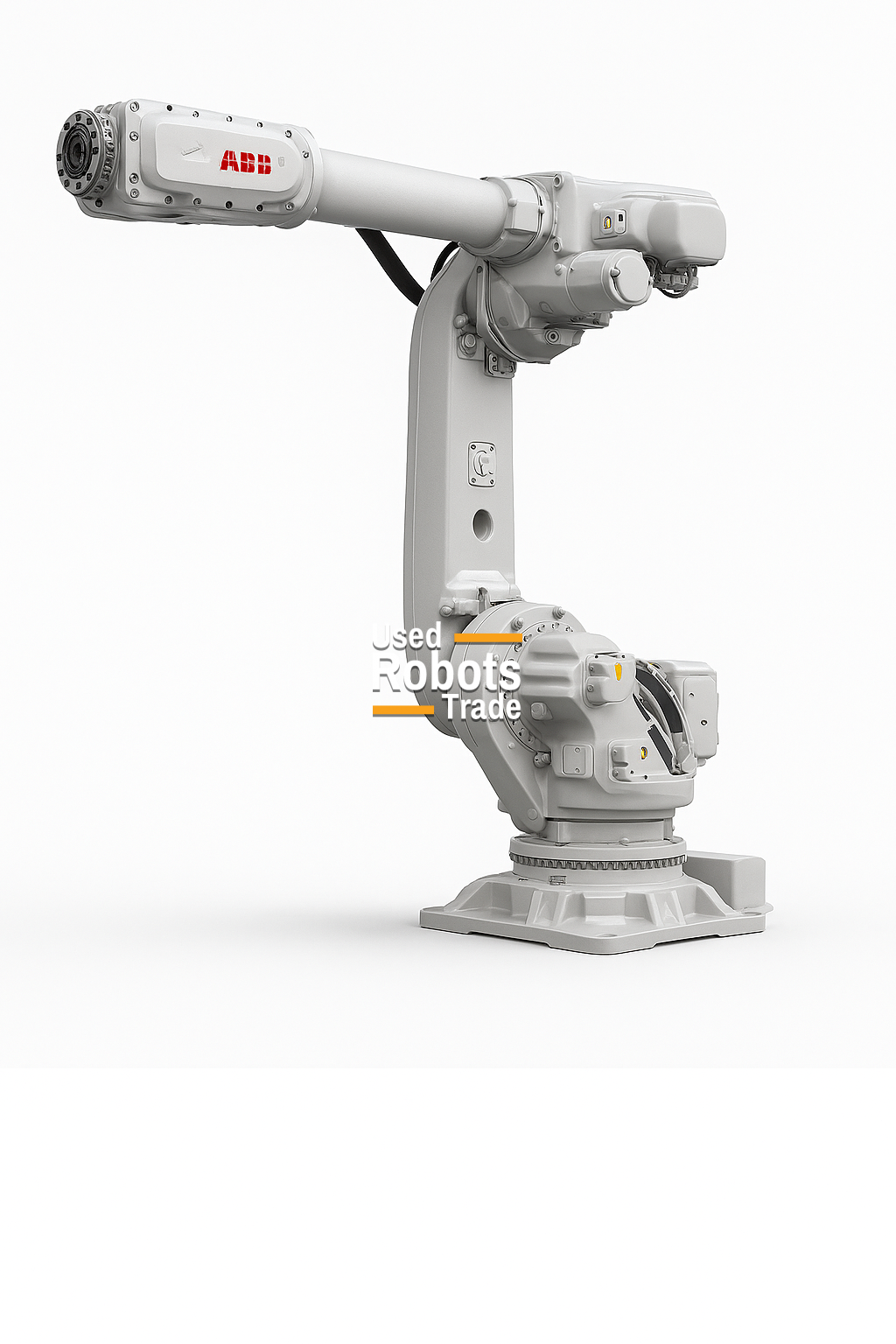

ABB IRB 6740 230/3.00 LID
Robot details
The ABB IRB 6740‑230/3.00 LID is a very heavy‑duty 6‑axis industrial robot, designed to deliver high payload capacity, extended reach, and superior rigidity for the most demanding industrial automation tasks. Equipped with LID (Load Integrated Drive) technology, this robot integrates the main drive directly into the robot structure, improving load distribution, reducing external components, and enhancing overall system efficiency.
With a maximum payload of 230 kg and an extended reach of 3,000 mm, the IRB 6740‑230/3.00 LID is ideal for handling large and heavy components, including automotive body‑in‑white (BIW) parts, press tending operations, heavy machine loading, and large material transfer. Its reinforced mechanical structure ensures smooth motion, high positional stability, and consistent path accuracy, even in continuous high‑duty production cycles.
Powered by the ABB IRC5 controller, the robot fully exploits ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, providing precise trajectory control, synchronized axis movements, and optimized cycle times. Thanks to the Load Integrated Drive architecture, the IRB 6740‑230/3.00 LID offers lower maintenance requirements, higher uptime, improved dynamics, and reduced total cost of ownership compared to conventional heavy‑robot solutions.
The ABB IRB 6740‑230/3.00 LID is the ideal choice for manufacturers seeking long‑reach very‑heavy automation with modern drive technology and proven ABB industrial reliability.
Robot applications
- Press tending
- Loading and unloading of parts
- Machining
- Handling of parts
- Polishing
- Arc welding
- Spotwelding
- Palletising
- Measurement
- Laser cutting
- Laser welding Nd-Yag
- Glueing - Adhesive bonding
- Assembly of parts
TECHNICAL DATA – ABB IRB 6740‑230/3.00 LID
- Robot type: 6‑axis articulated very heavy‑payload industrial robot
- Drive technology: LID – Load Integrated Drive
- Maximum payload: 230 kg
- Maximum reach: 3,000 mm
- Repeatability: ±0.05 mm
- Number of axes: 6
- Robot weight: approx. 1,600–1,700 kg
- Protection rating: IP54 (higher protection available depending on configuration)
- Controller: ABB IRC5
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Installation options: Floor mounting, compact layout enabled by LID design
TYPICAL APPLICATIONS
- Automotive body‑in‑white (BIW) handling
- Press tending and transfer systems
- Heavy machine loading and unloading
- Large structure and frame manipulation
- Heavy material handling
- Foundry and casting automation
- Continuous very heavy‑duty industrial automation
