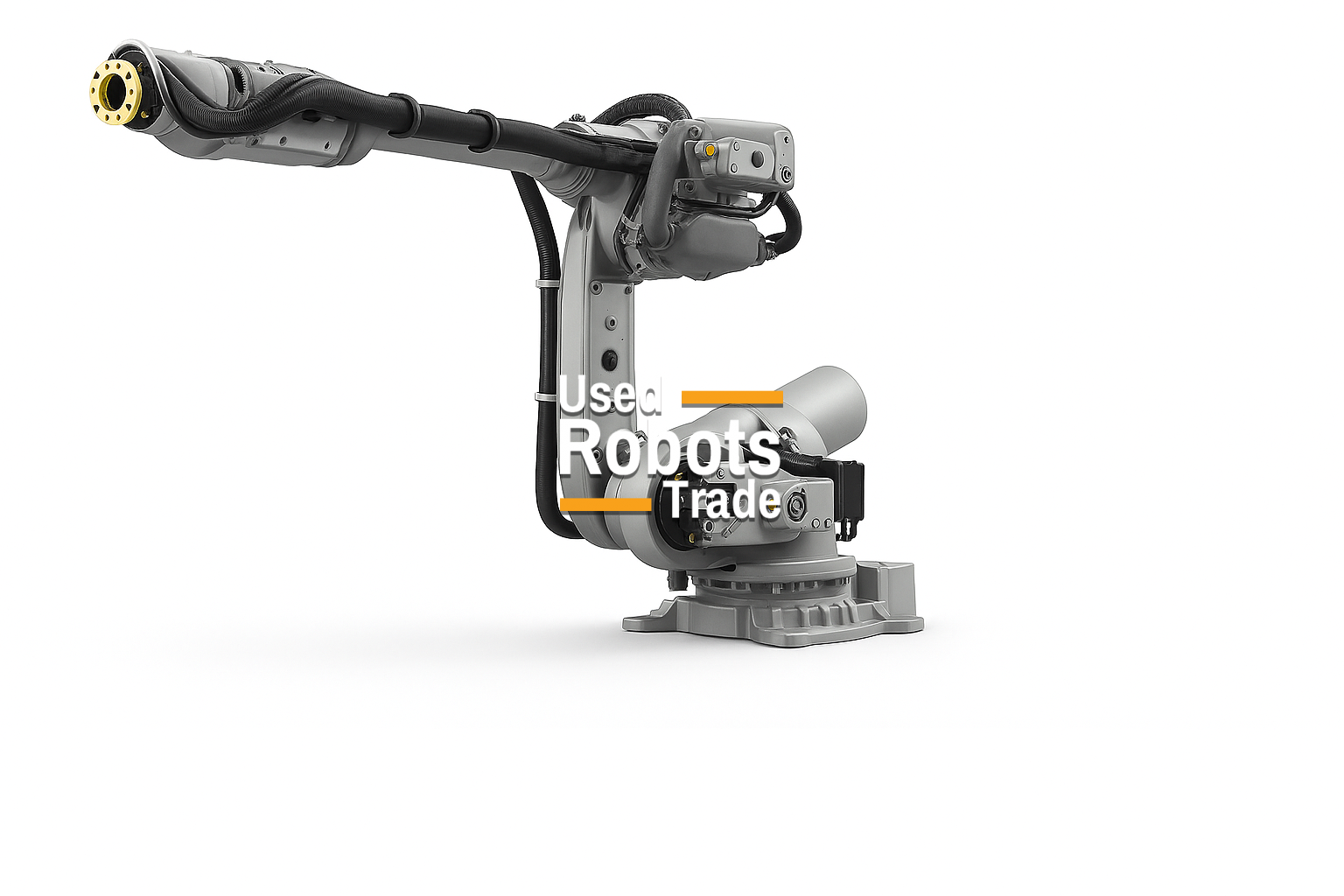

ABB IRB 6730 S 220/3.10 LID

Robot details

The ABB IRB 6730 S‑220/3.10 LID is a heavy‑duty 6‑axis industrial robot, designed in the Shelf (S) configuration and equipped with LID (Load Integrated Drive) technology to deliver enhanced rigidity, compact integration, and long‑term reliability. Based on ABB’s proven IRB 6700 platform, this robot is optimized for demanding applications requiring high payloads, extended reach, and overhead or side mounting.

With a maximum payload of 220 kg and a reach of 3,100 mm, the IRB 6730 S‑220/3.10 LID is ideal for handling large and heavy components within wide production areas, while keeping the floor space clear. The Load Integrated Drive architecture improves load distribution and reduces external drive components, resulting in smoother motion, improved dynamics, and simplified system integration.

Powered by the ABB IRC5 controller, the robot fully exploits ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, ensuring accurate path control, synchronized axis movement, and optimized cycle times even under continuous high‑duty operation. The combination of Shelf mounting and LID technology provides excellent stability, easier maintenance, and reduced total cost of ownership.

The ABB IRB 6730 S‑220/3.10 LID is an ideal solution for manufacturers seeking powerful, shelf‑mounted heavy automation with modern drive technology and proven industrial performance.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 6730 S‑220/3.10 LID

• Robot type: 6‑axis articulated heavy‑payload industrial robot (Shelf version)
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 220 kg
• Maximum reach: 3,100 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 1,500–1,600 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation type: Shelf / overhead or side mounting with compact LID design

TYPICAL APPLICATIONS

• Automotive body‑in‑white (BIW) handling
• Press tending and transfer systems
• Large structure and frame manipulation
• Heavy material handling
• Foundry and casting automation
• Oversized component palletizing
• Industrial transfer lines with optimized floor space
