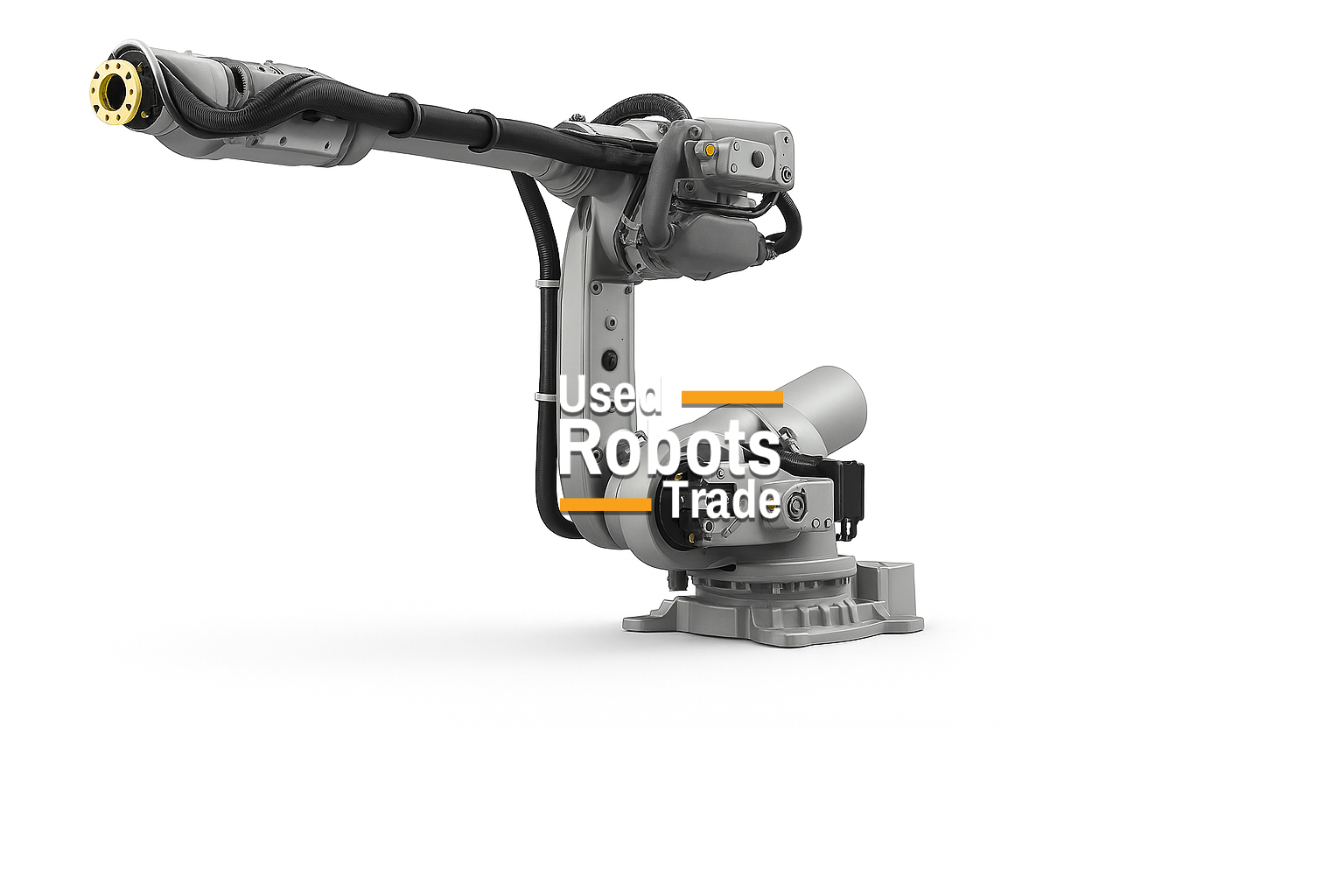

ABB IRB 6730 S 130/4.0 LID
Robot details
The ABB IRB 6730 S‑130/4.0 LID is a heavy‑duty 6‑axis industrial robot, designed in the Shelf (S) configuration and equipped with LID (Load Integrated Drive) technology to deliver maximum reach, excellent rigidity, and compact system integration. Based on ABB’s proven IRB 6700 platform, this robot is optimized for applications requiring ultra‑long reach, overhead or side mounting, and reliable handling of heavy components.
With a maximum payload of 130 kg and an exceptional reach of 4,000 mm, the IRB 6730 S‑130/4.0 LID is ideal for very large work envelopes, long transfer operations, and handling of bulky components across wide production areas. The Load Integrated Drive architecture improves load distribution and reduces external drive components, resulting in stable motion, smooth trajectories, and high path accuracy, even at extreme reach.
Powered by the ABB IRC5 controller, the robot fully utilizes ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, ensuring precise trajectory control, synchronized axis motion, and reduced cycle times. The combination of Shelf mounting and LID technology provides excellent floor space optimization, simplified maintenance, and lower total cost of ownership.
The ABB IRB 6730 S‑130/4.0 LID is an ideal solution for manufacturers seeking ultra‑long‑reach, shelf‑mounted heavy automation with modern drive technology and proven ABB industrial reliability.
Robot applications
- Press tending
- Loading and unloading of parts
- Machining
- Handling of parts
- Polishing
- Arc welding
- Spotwelding
- Palletising
- Measurement
- Laser cutting
- Laser welding Nd-Yag
- Glueing - Adhesive bonding
- Assembly of parts
TECHNICAL DATA – ABB IRB 6730 S‑130/4.0 LID
- Robot type: 6‑axis articulated heavy‑payload industrial robot (Shelf version)
- Drive technology: LID – Load Integrated Drive
- Maximum payload: 130 kg
- Maximum reach: 4,000 mm
- Repeatability: ±0.05 mm
- Number of axes: 6
- Robot weight: approx. 1,500–1,600 kg
- Protection rating: IP54 (higher protection available depending on configuration)
- Controller: ABB IRC5
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Installation type: Shelf / overhead or side mounting with compact LID design
TYPICAL APPLICATIONS
- Automotive body‑in‑white (BIW) handling
- Press tending and ultra‑long transfer lines
- Large structure and frame manipulation
- Heavy material handling over long distances
- Foundry and casting automation
- Oversized component palletizing
- Industrial transfer systems with maximum floor space optimization
