ABB IRB 6710 200/2.95

Robot details

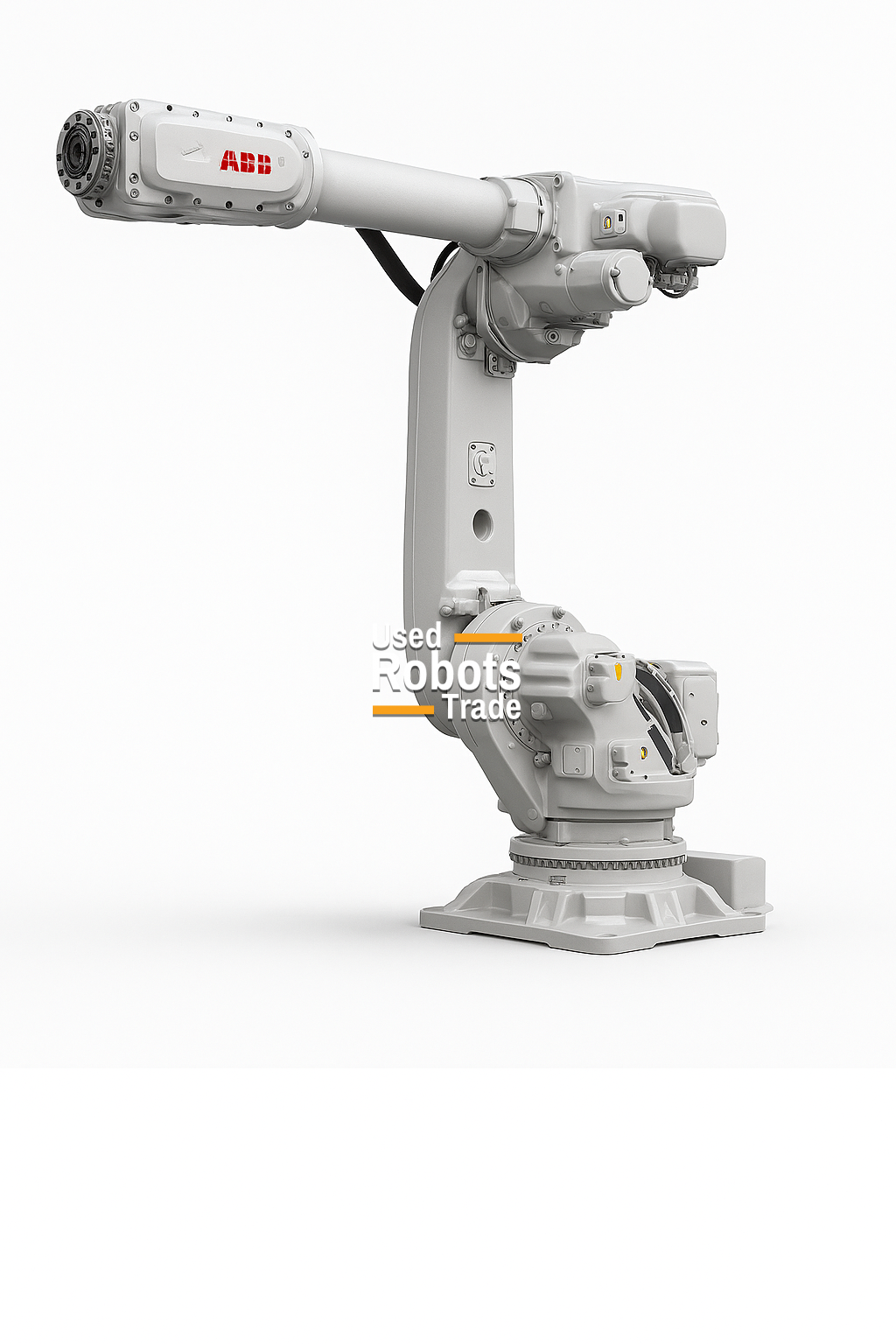

The ABB IRB 6710‑200/2.95 is a heavy‑duty 6‑axis industrial robot, designed to deliver high payload handling, extended reach, and robust performance in demanding industrial environments. As part of ABB’s proven IRB 6700 series, this model combines strength, accuracy, and reliability for continuous high‑duty automation.

With a maximum payload of 200 kg and an extended reach of 2,950 mm, the IRB 6710‑200/2.95 is ideal for heavy material handling, automotive body handling, machine tending, and large component manipulation. Its rigid mechanical structure and optimized arm design ensure smooth motion, stable path accuracy, and consistent repeatability, even at full payload and extended operating range.

Powered by the ABB IRC5 controller, the robot fully benefits from ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, enabling precise trajectory control, synchronized axis movements, and reduced cycle times. Thanks to its compact footprint relative to payload and reach, the IRB 6710‑200/2.95 integrates efficiently into modern heavy‑automation cells.

The ABB IRB 6710‑200/2.95 is an ideal solution for manufacturers seeking long‑reach heavy automation with proven ABB industrial reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts

TECHNICAL DATA – ABB IRB 6710‑200/2.95

• Robot type: 6‑axis articulated heavy‑payload industrial robot
• Maximum payload: 200 kg
• Maximum reach: 2,950 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 1,300–1,400 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting (standard)

TYPICAL APPLICATIONS

• Heavy material handling
• Automotive body‑in‑white (BIW) handling
• Machine tending with large components
• Press tending and transfer systems
• Palletizing and depalletizing of heavy loads
• Foundry and casting automation
• General heavy‑duty industrial automation
