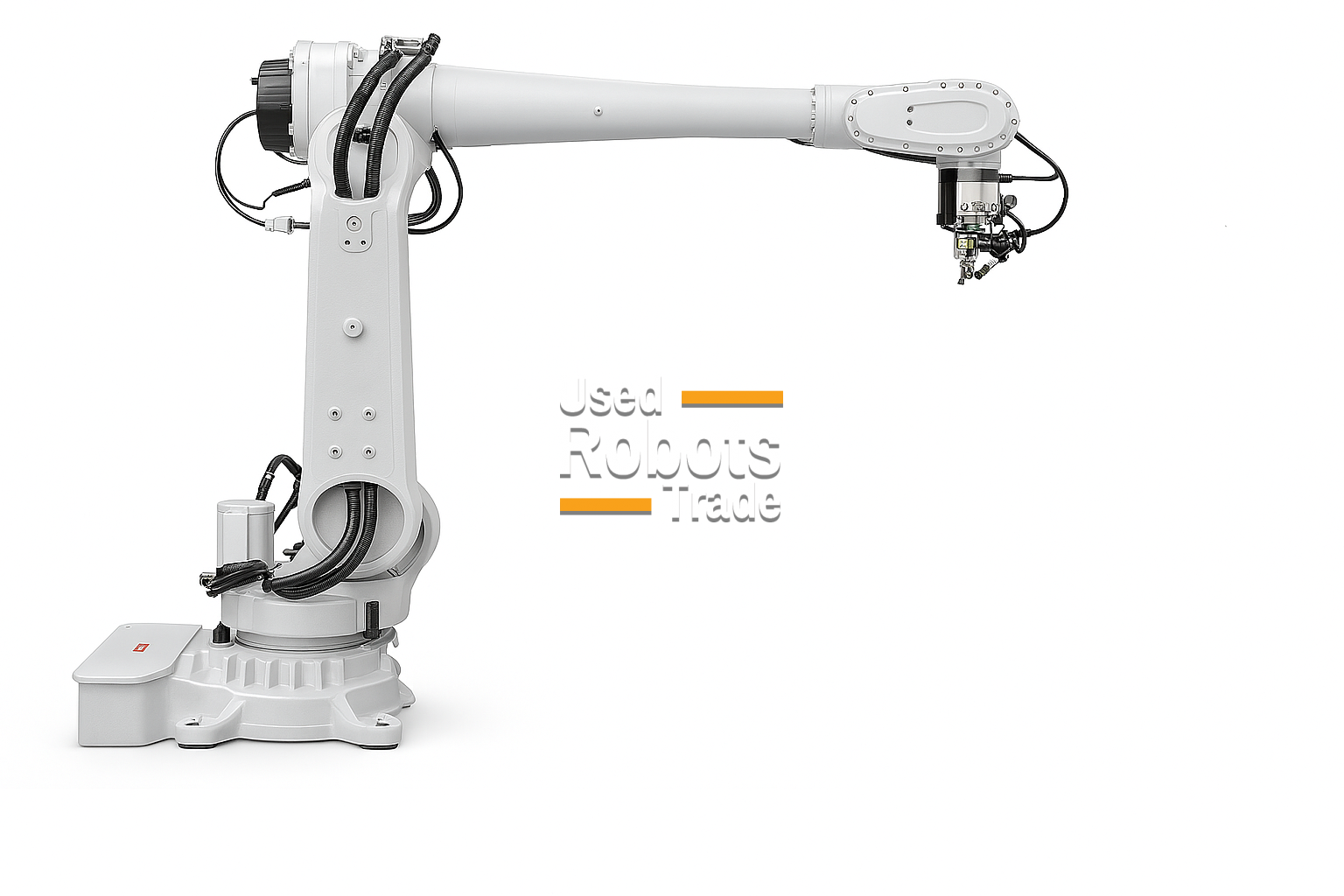

ABB IRB 5720 90/3.00 LID

Robot details

The ABB IRB 5720‑90/3.00 LID is a next‑generation heavy‑duty 6‑axis industrial robot, engineered for applications that demand extended reach, high payload performance, and compact system integration. Equipped with LID (Load Integrated Drive) technology, the robot integrates the main drive directly into the robot structure, reducing external components and improving overall efficiency and reliability.

With a maximum payload of 90 kg and an extra‑long reach of 3,000 mm, the IRB 5720‑90/3.00 LID is ideal for large work envelopes, long‑distance material handling, palletizing, automotive body handling, and machine tending of bulky components. The reinforced mechanical structure and optimized load distribution ensure smooth motion, high rigidity, and stable accuracy, even at full extension and continuous high‑duty cycles.

Powered by the ABB IRC5 controller, the robot leverages ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise path control, synchronized movements, and reduced cycle times. Thanks to the Load Integrated Drive architecture, the robot benefits from a reduced footprint, simplified installation, improved service access, and lower total cost of ownership.

The ABB IRB 5720‑90/3.00 LID is the ideal solution for manufacturers seeking long‑reach heavy automation with modern performance, efficiency, and long‑term reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts
• Stud welding
• Plasma cutting
• Spotwelding
• Milling

TECHNICAL DATA – ABB IRB 5720‑90/3.00 LID

• Robot type: 6‑axis articulated heavy‑payload industrial robot
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 90 kg
• Maximum reach: 3,000 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 1,600 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting, compact heavy‑duty layouts enabled by LID

TYPICAL APPLICATIONS

• Long‑reach heavy material handling
• Palletizing and depalletizing over large areas
• Automotive body and chassis handling
• Large component machine tending
• Part transfer and staging
• Press tending and foundry automation
• Extra‑heavy industrial automation cells
