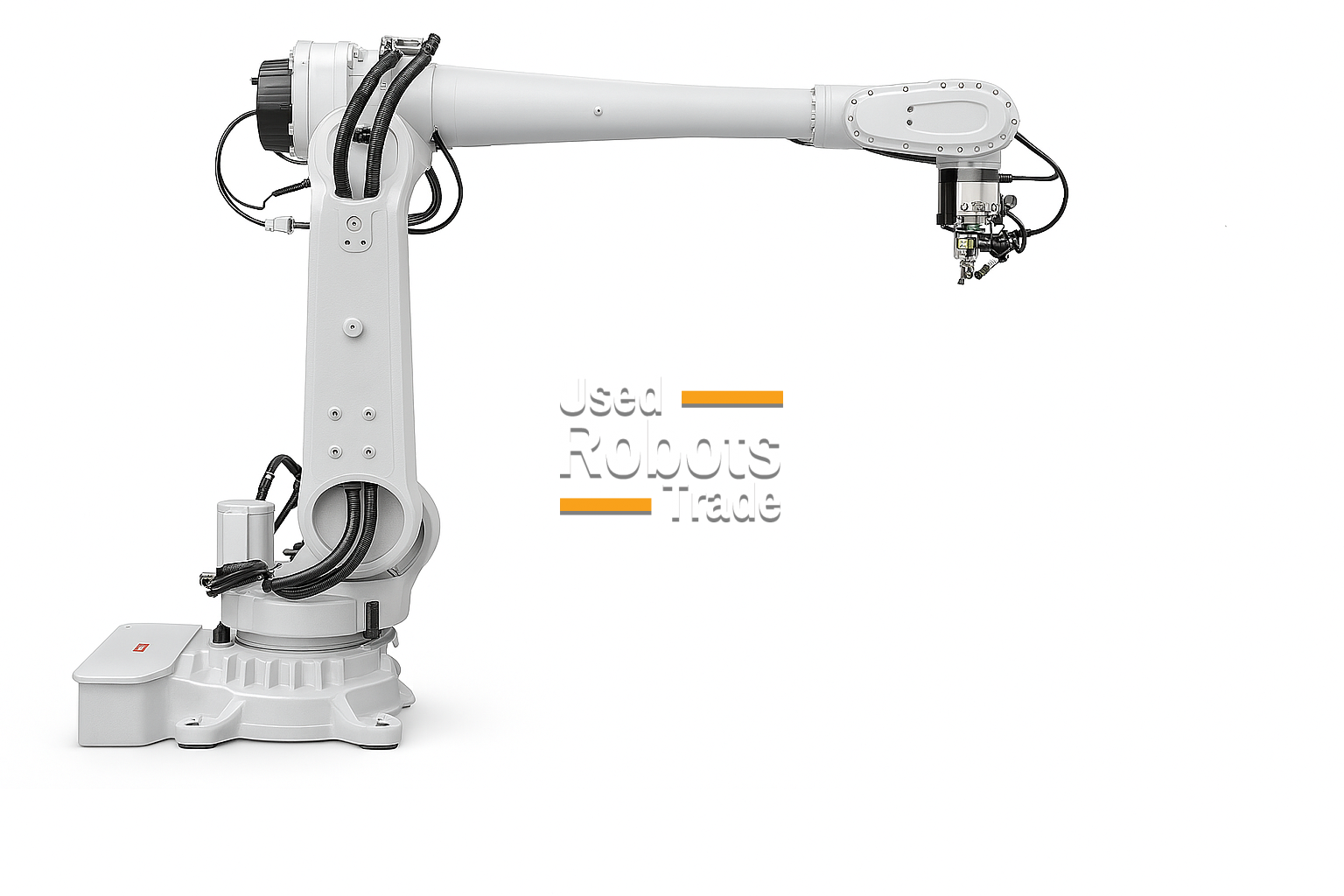

ABB IRB 5720 155/2.60 LID

Robot details

The ABB IRB 5720‑155/2.60 LID is a next‑generation extra‑heavy‑duty 6‑axis industrial robot, designed for applications that require very high payload capacity, long reach, and continuous high‑duty operation. Equipped with LID (Load Integrated Drive) technology, this robot integrates the main drive directly into the robot structure, improving performance, reducing footprint, and simplifying system integration.

With a maximum payload of 155 kg and a reach of 2,600 mm, the IRB 5720‑155/2.60 LID is ideal for heavy material handling, large component manipulation, automotive body handling, press tending, and palletizing of heavy loads. The reinforced mechanical structure and optimized load distribution ensure smooth motion, high rigidity, and stable accuracy, even at full payload and dynamic speeds.

Powered by the ABB IRC5 controller, the robot benefits from ABB’s advanced TrueMove™ and QuickMove™ motion technologies, guaranteeing precise trajectory control, synchronized axis movements, and optimized cycle times. Thanks to the LID architecture, the robot offers reduced external components, improved energy efficiency, easier maintenance, and lower total cost of ownership.

The ABB IRB 5720‑155/2.60 LID represents an ideal solution for manufacturers seeking maximum strength, reliability, and modern heavy‑payload automation performance.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts
• Stud welding

TECHNICAL DATA – ABB IRB 5720‑155/2.60 LID

• Robot type: 6‑axis articulated extra‑heavy‑payload industrial robot
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 155 kg
• Maximum reach: 2,600 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 1,600 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting, compact heavy‑duty layouts enabled by LID

TYPICAL APPLICATIONS

• Extra‑heavy material handling
• Automotive body and chassis handling
• Press tending and foundry automation
• Heavy palletizing and depalletizing
• Large component machine tending
• Part transfer and staging in heavy industries
• General high‑duty industrial automation
