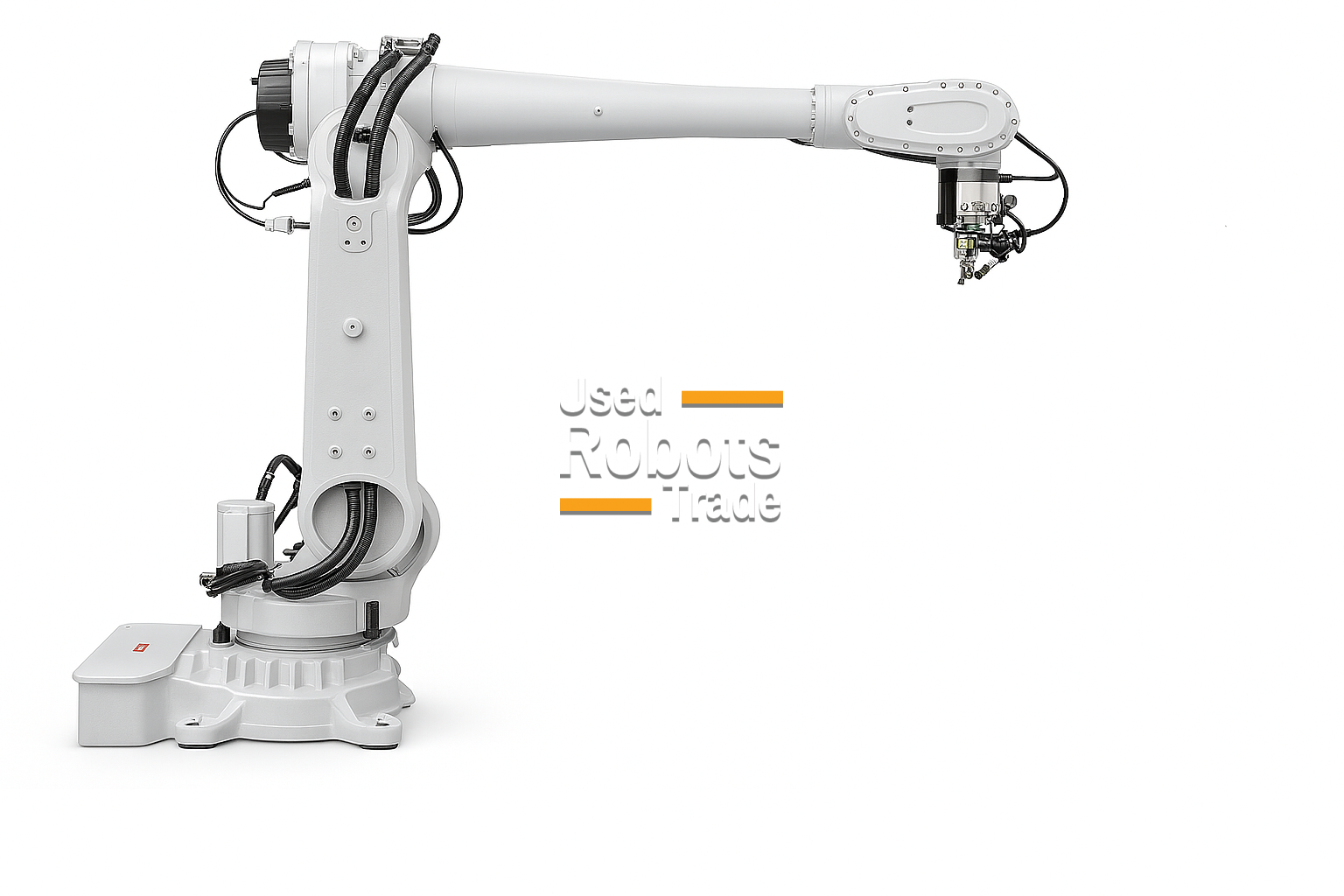

ABB IRB 5720 125/3.00

Robot details

The ABB IRB 5720‑125/3.00 is a next‑generation heavy‑duty 6‑axis industrial robot, engineered for applications that require very high payload capacity combined with extended reach and continuous high‑duty operation. As part of ABB’s advanced IRB 5720 platform, this robot delivers exceptional rigidity, precise motion control, and outstanding long‑term reliability.

With a maximum payload of 125 kg and an extended reach of 3,000 mm, the IRB 5720‑125/3.00 is ideal for large‑scale material handling, automotive body handling, machine tending of large components, and heavy palletizing operations. Its reinforced mechanical structure and powerful drive system ensure smooth, stable motion and consistent accuracy, even when operating at full load and maximum reach.

Powered by the ABB IRC5 controller, the robot fully benefits from ABB’s proven TrueMove™ and QuickMove™ motion technologies, enabling precise trajectory control, synchronized movements, and reduced cycle times. Despite its high payload and long reach, the IRB 5720 maintains a compact footprint relative to its class, allowing efficient integration into modern heavy‑duty automation cells.

The ABB IRB 5720‑125/3.00 is the ideal solution for manufacturers seeking long‑reach heavy automation with maximum strength, precision, and industrial reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Polishing
• Arc welding
• Spotwelding
• Palletising
• Measurement
• Laser cutting
• Laser welding Nd-Yag
• Glueing - Adhesive bonding
• Assembly of parts
• Milling

TECHNICAL DATA – ABB IRB 5720‑125/3.00

• Robot type: 6‑axis articulated heavy‑payload industrial robot
• Maximum payload: 125 kg
• Maximum reach: 3,000 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 1,600 kg
• Protection rating: IP54 (higher protection available depending on version)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting (standard), heavy‑duty customized layouts available

TYPICAL APPLICATIONS

• Heavy material handling over large working areas
• Automotive body and chassis handling
• Large component machine tending
• Heavy palletizing and depalletizing
• Press tending and foundry automation
• General extra‑heavy industrial automation
