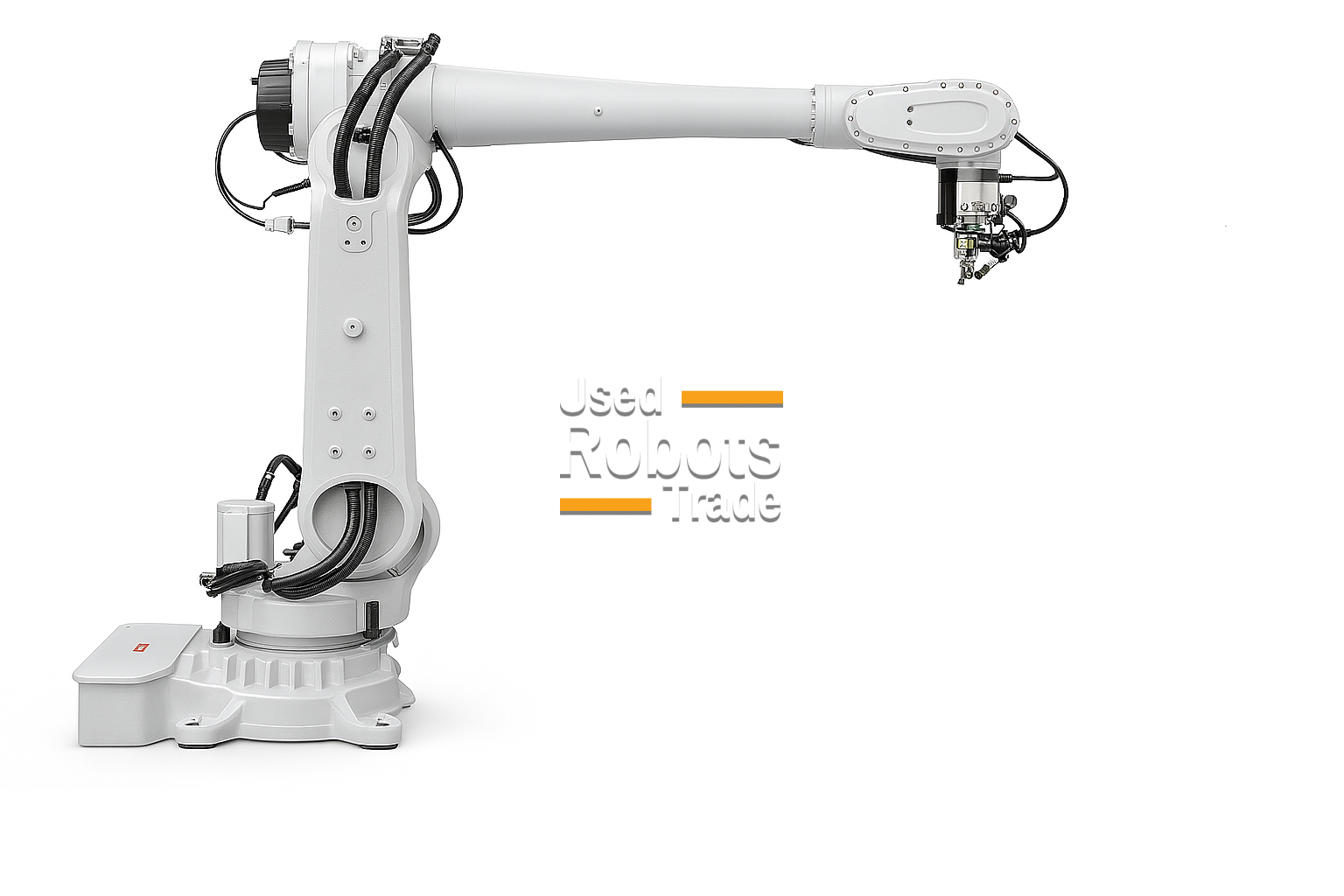

ABB IRB 5710 90/2.70

Robot details

The ABB IRB 5710‑90/2.70 is a next‑generation heavy‑duty 6‑axis industrial robot, specifically engineered for applications that require a combination of high payload capacity, long reach, and energy‑efficient performance. As part of ABB’s new IRB 5710 platform, it delivers modern motion performance while retaining industrial‑grade robustness.

With a maximum payload of 90 kg and an extended reach of 2,700 mm, the IRB 5710‑90/2.70 is ideal for large work envelopes, heavy material handling, palletizing, and machine tending with bulky components. Its optimized mechanical structure and advanced drive systems ensure smooth trajectories, stable accuracy, and reliable operation, even when working at full reach and high duty cycles.

Powered by the ABB IRC5 controller, the robot makes full use of ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise path control, synchronized movements, and reduced cycle times. Compared to previous heavy robot generations, the IRB 5710 offers improved energy efficiency, simplified service access, and a compact footprint relative to its reach and payload class.

The ABB IRB 5710‑90/2.70 is an excellent solution for manufacturers seeking long‑reach heavy automation with modern performance and long‑term reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Spotwelding
• Palletising
• Measurement
• Spotwelding

TECHNICAL DATA – ABB IRB 5710‑90/2.70

• Robot type: 6‑axis articulated heavy‑payload industrial robot
• Maximum payload: 90 kg
• Maximum reach: 2,700 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 950 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting (standard), custom installations available

TYPICAL APPLICATIONS

• Heavy material handling over extended distances
• Palletizing and depalletizing
• Machine tending with large and heavy parts
• Part transfer and staging
• Automotive and metalworking industries
• General heavy‑duty industrial automation
