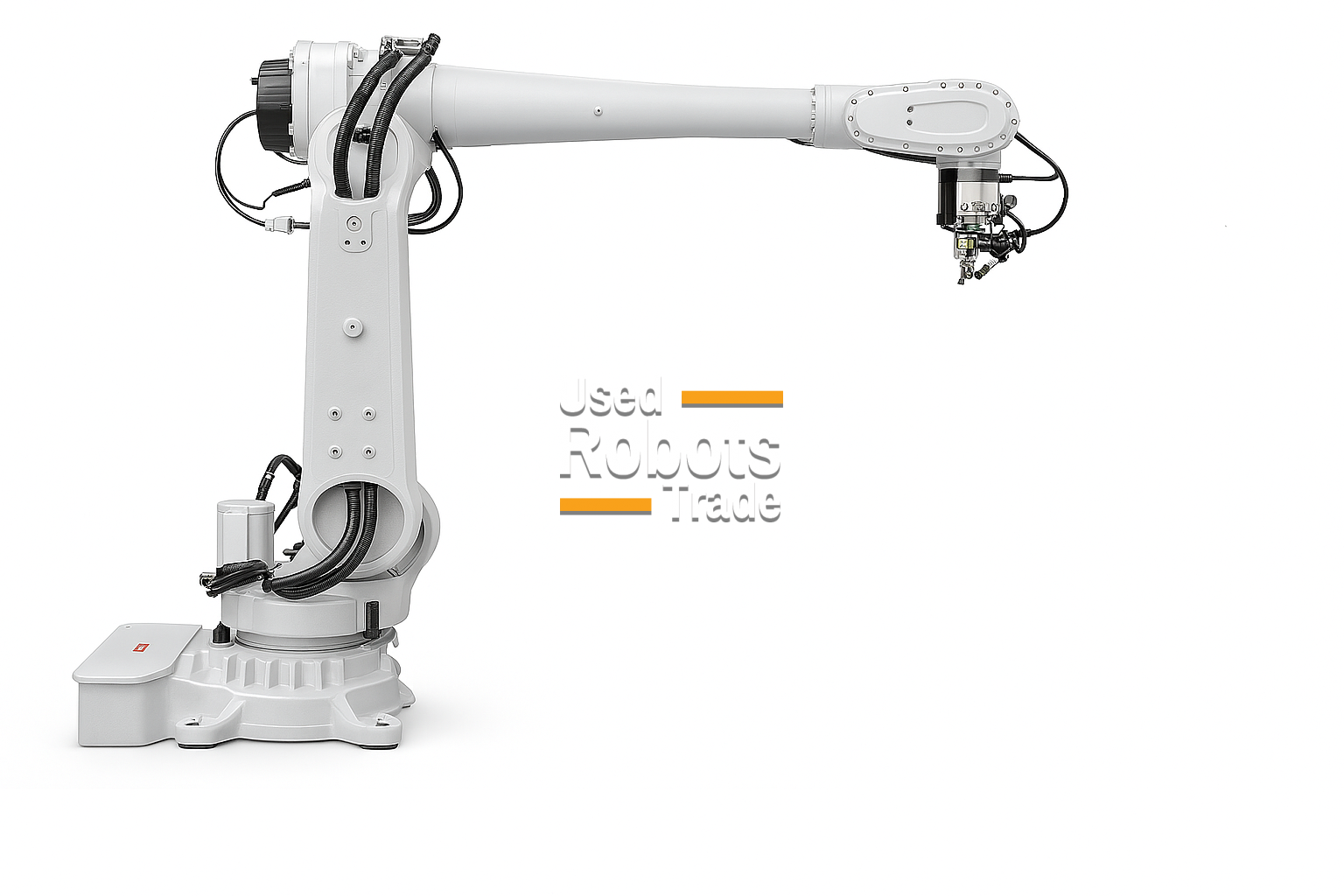

ABB IRB 5710 90/2.3 LID

Robot details

The ABB IRB 5710‑90/2.3 LID is a next‑generation heavy‑duty 6‑axis industrial robot, specifically engineered for applications requiring high payload capacity, compact integration, and improved dynamic performance. The LID (Load Integrated Drive) technology integrates the main drive unit directly into the robot base, significantly reducing external components and improving overall system efficiency.

With a maximum payload of 90 kg and a reach of 2,300 mm, the IRB 5710‑90/2.3 LID is ideal for heavy material handling, machine tending, palletizing, and large part manipulation. The optimized mechanical structure, combined with Load Integrated Drive, delivers higher torque efficiency, smoother motion, and reduced mechanical stress, even at high speeds and heavy loads.

Powered by the ABB IRC5 controller, the robot fully utilizes ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, ensuring precise trajectory control, synchronized axis movements, and reduced cycle times. Thanks to the LID architecture, the robot also benefits from simplified installation, reduced footprint, improved service accessibility, and lower total cost of ownership.

The ABB IRB 5710‑90/2.3 LID is an ideal solution for manufacturers seeking compact heavy‑payload automation with modern performance, reliability, and long‑term efficiency.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Spotwelding
• Palletising
• Measurement
• Spotwelding

TECHNICAL DATA – ABB IRB 5710‑90/2.3 LID

• Robot type: 6‑axis articulated heavy‑payload industrial robot
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 90 kg
• Maximum reach: 2,300 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 950 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting (standard), compact layout enabled by LID design

TYPICAL APPLICATIONS

• Heavy material handling
• Palletizing and depalletizing
• Machine tending with heavy or bulky components
• Part transfer and staging
• Automotive and metalworking industries
• High‑duty industrial automation cells
