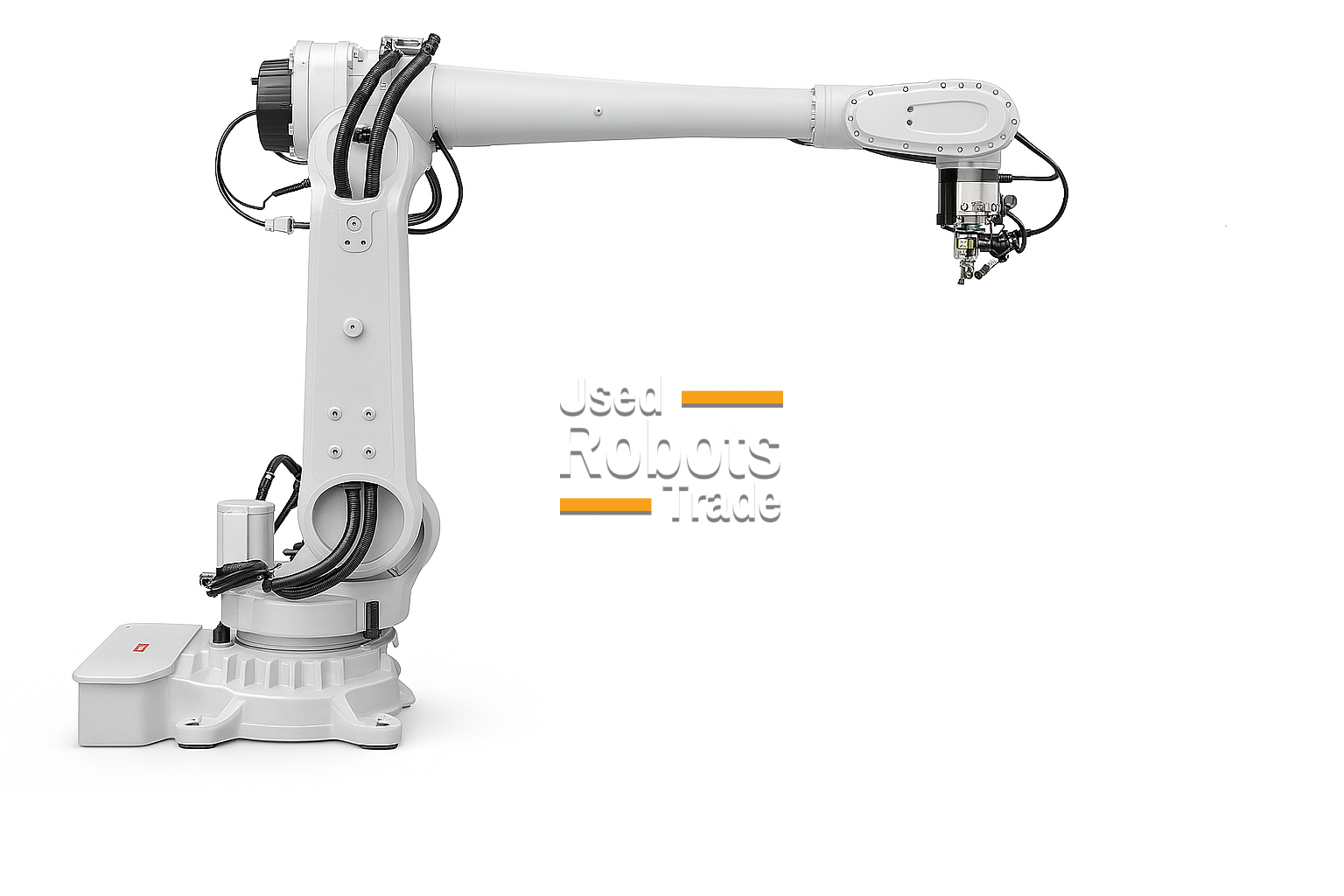

ABB IRB 5710 70/2.70 LID

Robot details

The ABB IRB 5710‑70/2.70 LID is a next‑generation heavy‑duty 6‑axis industrial robot, engineered for applications that require long reach, high dynamic performance, and compact system integration. Featuring LID (Load Integrated Drive) technology, this model integrates the main drive directly into the robot structure, reducing external components and improving efficiency.

With a maximum payload of 70 kg and an extended reach of 2,700 mm, the IRB 5710‑70/2.70 LID is ideal for large work envelopes, heavy material handling, palletizing, and machine tending with bulky components. The long‑reach arm combined with the rigid mechanical design ensures smooth motion, stable accuracy, and reliable operation, even at full extension.

Powered by the ABB IRC5 controller, the robot fully exploits ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise trajectory control, synchronized axis movement, and optimized cycle times. Thanks to the Load Integrated Drive architecture, the robot offers reduced footprint, simplified installation, enhanced service accessibility, and lower total cost of ownership.

The ABB IRB 5710‑70/2.70 LID is the ideal solution for manufacturers seeking long‑reach heavy‑payload automation with modern efficiency and reliability.

Robot applications

• Press tending
• Loading and unloading of parts
• Machining
• Handling of parts
• Spotwelding
• Palletising
• Measurement

TECHNICAL DATA – ABB IRB 5710‑70/2.70 LID

• Robot type: 6‑axis articulated heavy‑payload industrial robot
• Drive technology: LID – Load Integrated Drive
• Maximum payload: 70 kg
• Maximum reach: 2,700 mm
• Repeatability: ±0.05 mm
• Number of axes: 6
• Robot weight: approx. 900–950 kg
• Protection rating: IP54 (higher protection available depending on configuration)
• Controller: ABB IRC5
• Motion control: ABB QuickMove™ and TrueMove™ technologies
• Installation options: Floor mounting, compact layout enabled by LID design

TYPICAL APPLICATIONS

• Heavy material handling over extended distances
• Palletizing and depalletizing
• Machine tending with large or heavy components
• Part transfer and staging
• Automotive and metalworking industries
• High‑duty industrial automation cells
