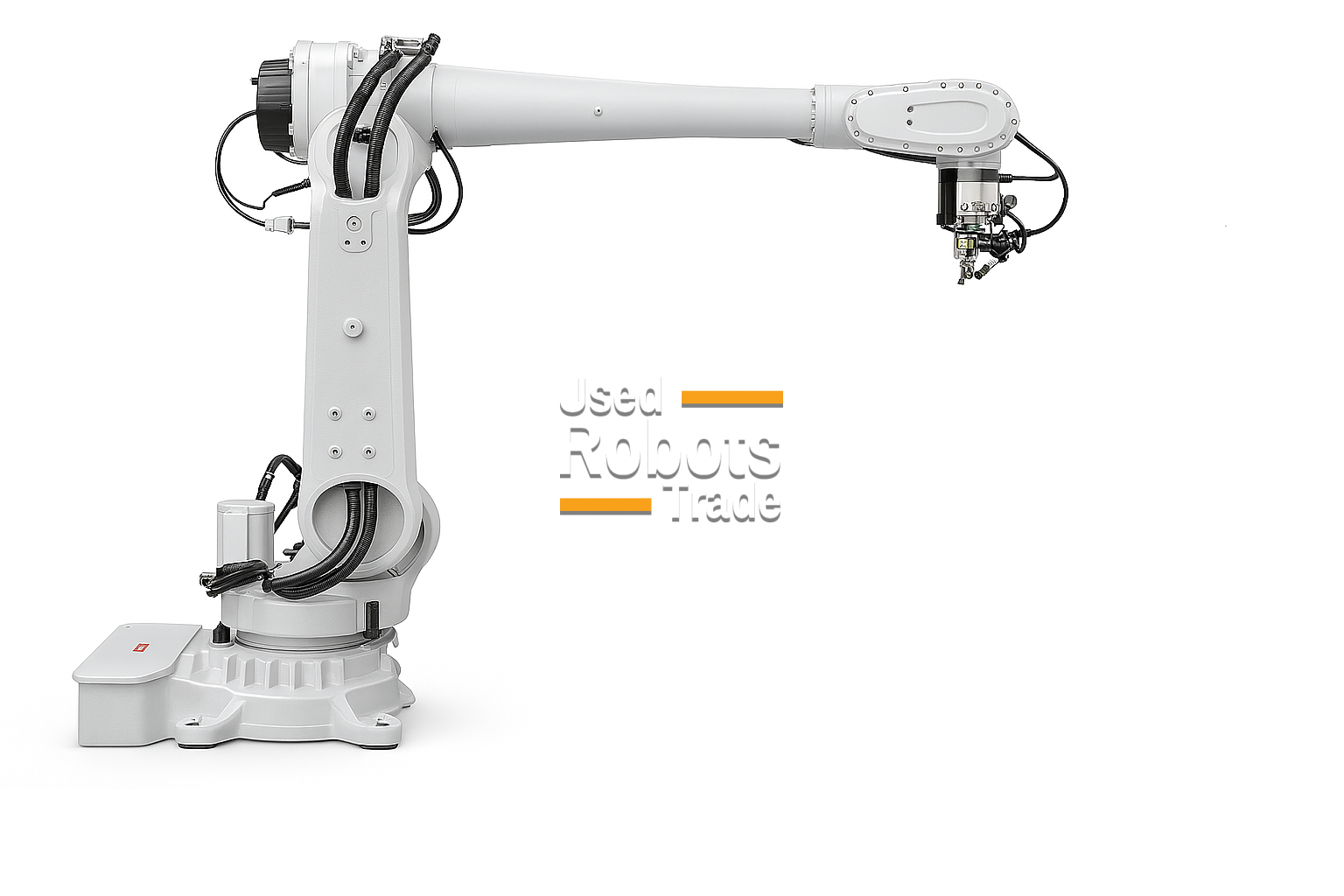

ABB IRB 5710 110/2.3
Robot details
The ABB IRB 5710‑110/2.3 is a next‑generation heavy‑duty 6‑axis industrial robot, designed to deliver high payload capacity, extended reach, improved energy efficiency, and outstanding reliability. Part of ABB’s latest robot platform, the IRB 5710 combines proven robustness with modern performance enhancements for demanding industrial applications.
With a maximum payload of 110 kg and a reach of 2,300 mm, the IRB 5710‑110/2.3 is ideal for heavy material handling, machine tending, large part manipulation, and palletizing operations. Its optimized structure and advanced drive systems provide smooth motion, high accuracy, and stable path performance, even when handling large and heavy components at speed.
Powered by the ABB IRC5 controller, the robot fully leverages ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, ensuring precise trajectory control, synchronized axis movement, and reduced cycle times. Compared to previous generations, the IRB 5710 offers lower energy consumption, simplified maintenance, and a compact footprint relative to its payload class.
The ABB IRB 5710‑110/2.3 is an ideal solution for manufacturers seeking high‑payload automation with modern performance, reliability, and long‑term efficiency.
Robot applications
- Press tending
- Loading and unloading of parts
- Machining
- Handling of parts
- Spotwelding
- Palletising
- Measurement
- Glueing - Adhesive bonding
- Assembly of parts
- Stud welding
- Spotwelding
TECHNICAL DATA – ABB IRB 5710‑110/2.3
- Robot type: 6‑axis articulated heavy‑payload industrial robot
- Maximum payload: 110 kg
- Maximum reach: 2,300 mm
- Repeatability: ±0.05 mm
- Number of axes: 6
- Robot weight: approx. 950 kg
- Protection rating: IP54 (higher protection available depending on version)
- Controller: ABB IRC5
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Installation options: Floor mounting (standard), customized installations available
TYPICAL APPLICATIONS
- Heavy material handling
- Machine tending with large or heavy parts
- Palletizing and depalletizing
- Part transfer and staging
- Automotive and metalworking industries
- General heavy‑duty industrial automation
