ABB IRB 4600 60/2.05
Robot details

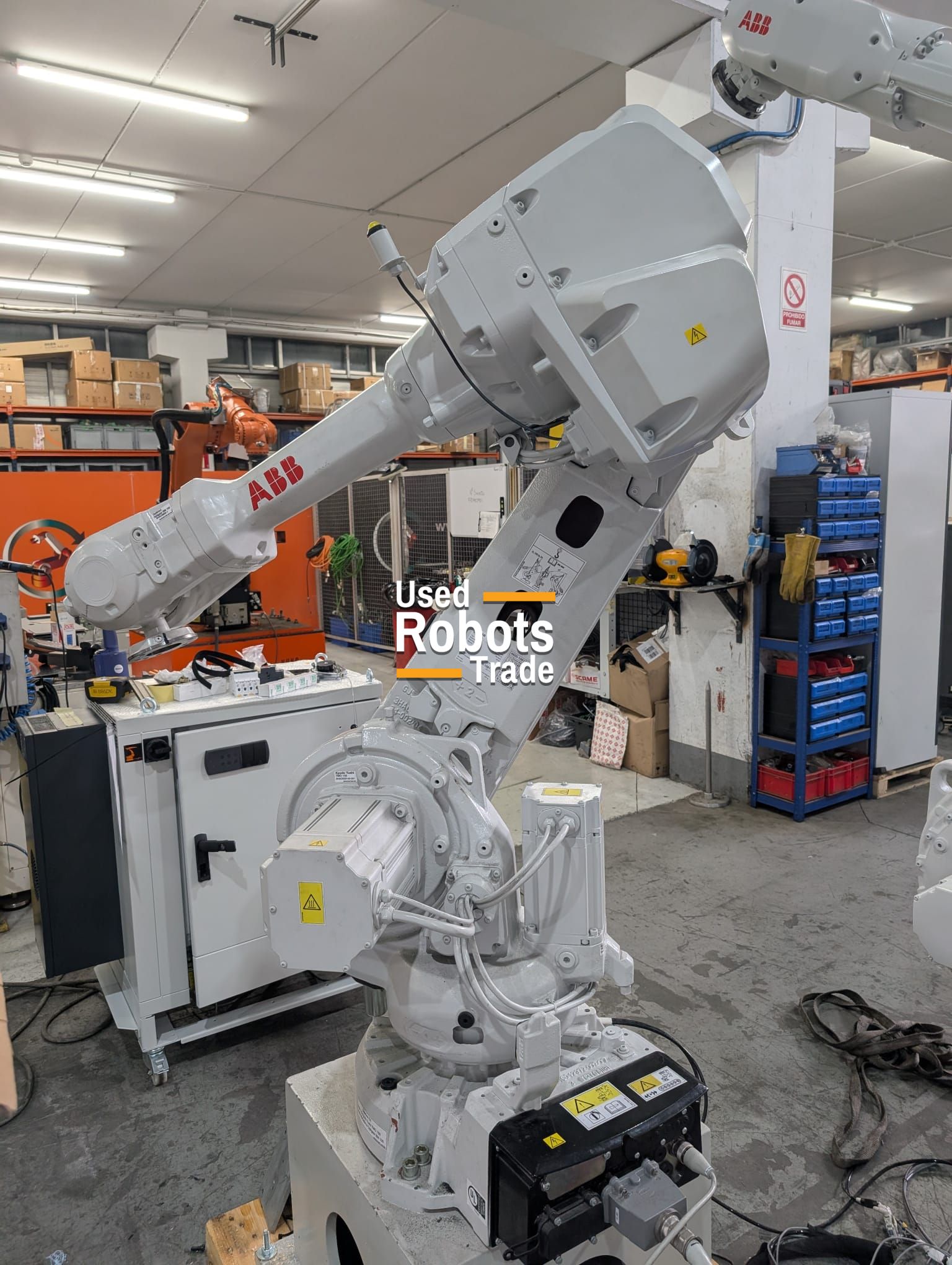

The ABB IRB 4600‑60/2.05 is a compact yet powerful 6‑axis industrial robot, designed to deliver high payload capacity, extended reach, and excellent reliability in demanding industrial environments. Part of ABB’s widely proven IRB 4600 series, this robot is known for its robust construction, flexible integration, and cost‑effective automation performance.
With a maximum payload of 60 kg and a reach of 2,050 mm, the IRB 4600‑60/2.05 is ideally suited for applications such as material handling, machine tending, palletizing, and part transfer. Its rigid arm structure and optimized drive system ensure smooth motion, stable accuracy, and consistent repeatability, even during continuous high‑duty cycles.
Powered by the ABB IRC5 controller, the robot benefits from advanced motion technologies including TrueMove™ and QuickMove™, which provide precise path control, synchronized axis movement, and reduced cycle times. Thanks to its compact footprint relative to payload, flexible mounting options, and low maintenance requirements, the IRB 4600‑60/2.05 integrates easily into both new automation cells and existing production lines.
The ABB IRB 4600‑60/2.05 is the ideal solution for manufacturers seeking medium‑to‑high payload automation with reliability, precision, and ABB industrial quality.
Robot applications
TECHNICAL DATA – ABB IRB 4600‑60/2.05
- Robot type: 6‑axis articulated industrial robot
- Maximum payload: 60 kg
- Maximum reach: 2,050 mm
- Repeatability: ±0.04 mm
- Number of axes: 6
- Robot weight: approx. 435 kg
- Protection rating: IP54 (higher protection available depending on version)
- Controller: ABB IRC5 / IRC5 Compact
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Installation options: Floor, wall, inverted, angled mounting
TYPICAL APPLICATIONS
- Material handling
- Machine tending (CNC, press loading)
- Palletizing and depalletizing
- Part transfer and staging
- Assembly and sub‑assembly
- General industrial automation
