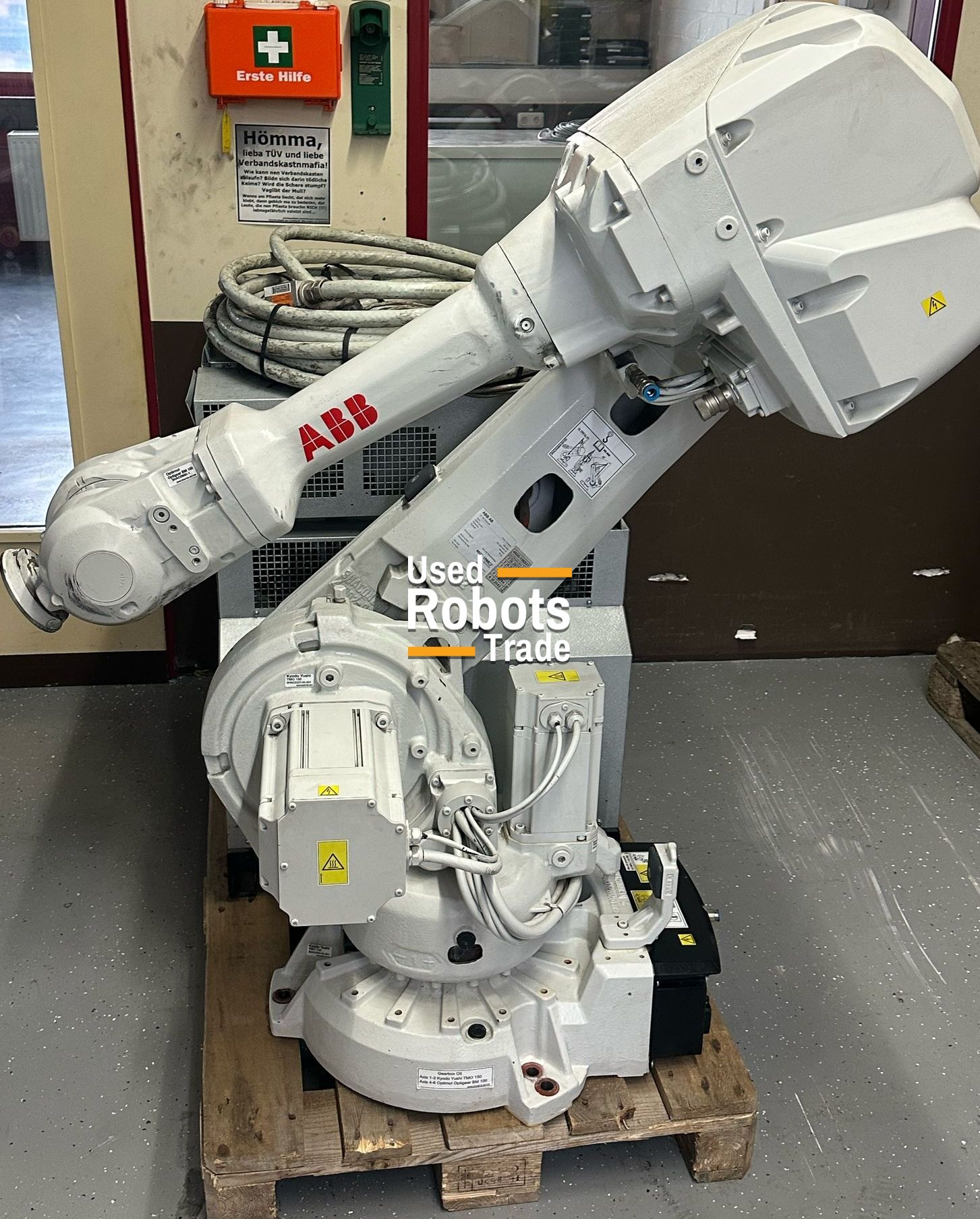

ABB IRB 4600 20/2.50
Robot details
The ABB IRB 4600‑20/2.50 is a high‑speed 6‑axis industrial robot, designed to combine long reach, precise motion, and compact mechanical design. As part of ABB’s proven IRB 4600 series, this robot offers an excellent balance between working envelope, payload capacity, and footprint, making it ideal for a wide range of industrial automation applications.
With a maximum payload of 20 kg and an extended reach of 2,500 mm, the IRB 4600‑20/2.50 is optimized for material handling, machine tending, pick and place, and part transfer over longer distances. Its rigid arm structure and optimized kinematics ensure fast acceleration, smooth trajectories, and stable positioning accuracy, even in continuous high‑duty operation.
Powered by the ABB IRC5 controller, the robot fully benefits from ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, guaranteeing precise path control, synchronized axis motion, and reduced cycle times. Thanks to its compact base, flexible mounting options, and low maintenance requirements, the IRB 4600‑20/2.50 integrates easily into both new and existing production cells.
The ABB IRB 4600‑20/2.50 is an ideal solution for manufacturers seeking long‑reach automation with speed, accuracy, and ABB industrial reliability.
Robot applications
- Press tending
- Loading and unloading of parts
- Machining
- Handling of parts
- Polishing
- Arc welding
- Palletising
- Measurement
- Assembly of parts
⚙️ TECHNICAL DATA – ABB IRB 4600‑20/2.50
- Robot type: 6‑axis articulated industrial robot
- Maximum payload: 20 kg
- Maximum reach: 2,500 mm
- Repeatability: ±0.05 mm
- Number of axes: 6
- Robot weight: approx. 440 kg
- Protection rating: IP54 (higher protection available depending on configuration)
- Controller: ABB IRC5 / IRC5 Compact
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Installation options: Floor, wall, inverted, angled mounting
