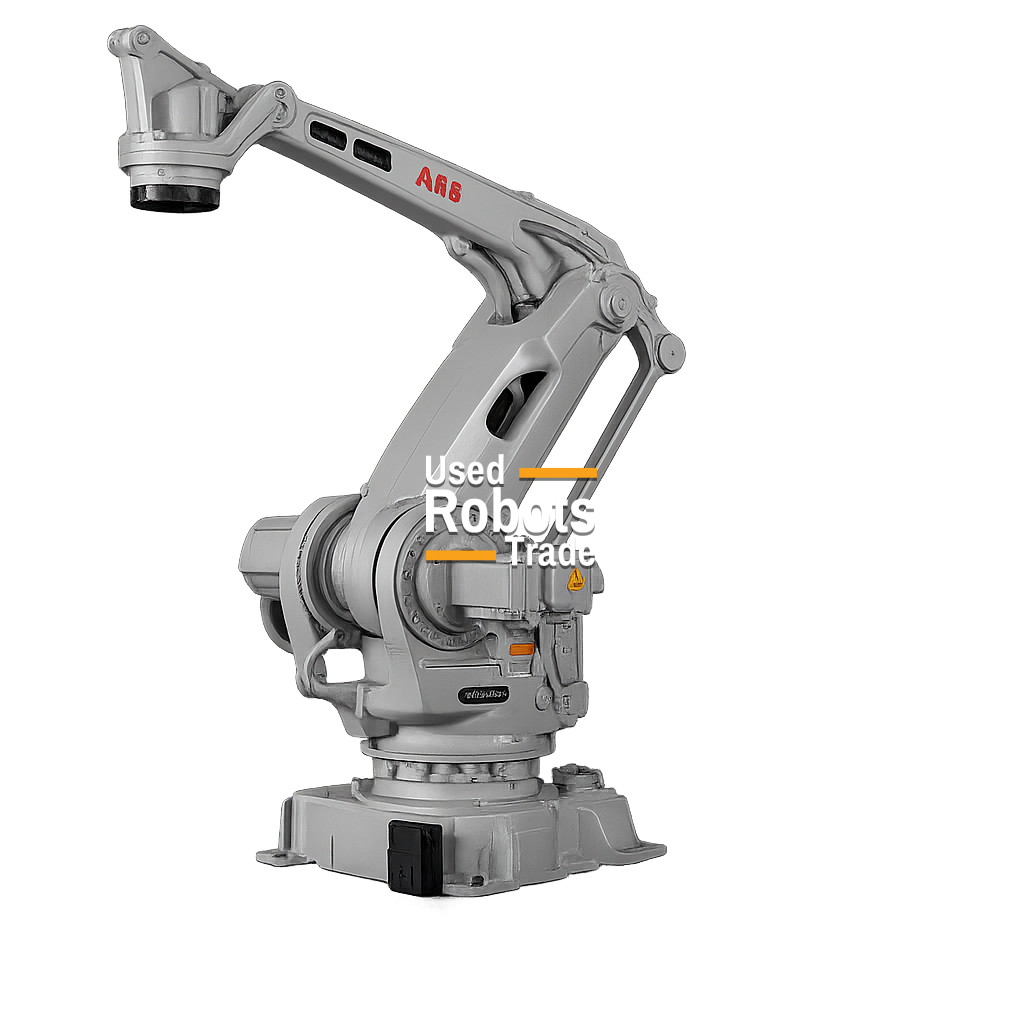

ABB IRB 460 110/2.40
Robot details
The ABB IRB 460‑110/2.40 is a high‑performance 4‑axis industrial palletizing robot, purpose‑built for fast, precise, and space‑efficient palletizing and depalletizing applications. As one of ABB’s most established palletizing platforms, the IRB 460 delivers exceptional throughput, heavy payload capability, and 24/7 industrial reliability.
With a maximum payload of 110 kg and a reach of 2,400 mm, the IRB 460‑110/2.40 is ideal for handling heavy cases, boxes, bags, trays, and bundled products at the end of the production line. The 4‑axis configuration is optimized for vertical and rotational palletizing movements, ensuring short cycle times, high repeatability, and simplified programming compared to 6‑axis alternatives.
The robot’s compact base and slim arm design allow installation in space‑constrained palletizing cells, maximizing floor space utilization. Powered by the proven ABB IRC5 controller, the IRB 460 benefits from QuickMove™ motion technology, enabling smooth trajectories, high speed, and reliable continuous operation.
The ABB IRB 460‑110/2.40 (4 axes) is a cost‑effective and robust solution for manufacturers seeking high‑speed palletizing automation with heavy payload handling and minimal footprint.
Robot applications
TECHNICAL DATA – ABB IRB 460‑110/2.40 (4‑Axis)
- Robot type: 4‑axis industrial palletizing robot
- Number of axes: 4 axes
- Maximum payload: 110 kg
- Maximum reach: 2,400 mm
- Repeatability: ±0.2 mm
- Robot weight: approx. 925 kg
- Protection rating: IP54 (IP67 wrist optional)
- Controller: ABB IRC5
- Motion control: ABB QuickMove™ technology
- Installation options: Floor mounting, compact base footprint
TYPICAL APPLICATIONS
- High‑speed palletizing
- Depalletizing
- End‑of‑line packaging automation
- Case, box, bag, and shrink‑wrapped product handling
- Logistics and warehouse automation
- Food & beverage, consumer goods, building materials
