ABB IRB 4400 L 10/2.55
Robot details

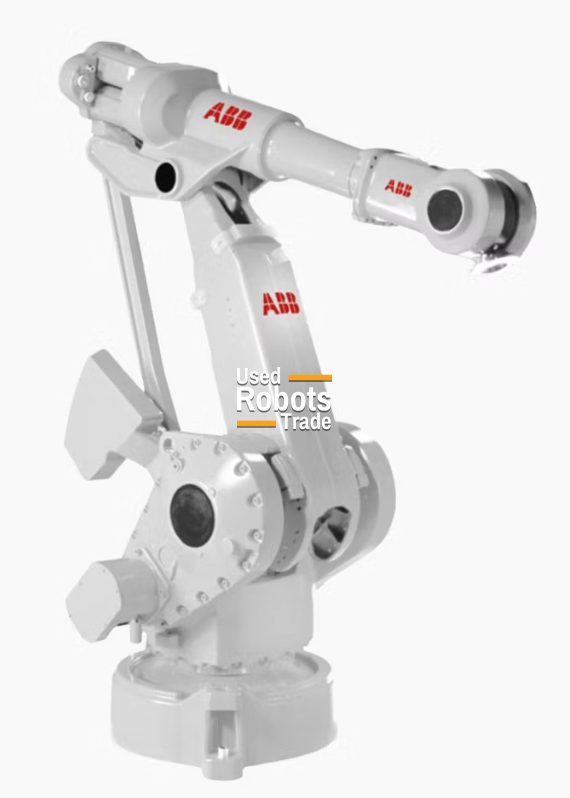

The ABB IRB 4400L‑10/2.55 is a long‑reach 6‑axis industrial robot, specifically designed for applications that require extended working range, precise motion control, and reliable performance. As part of the proven IRB 4400 family, the “L” version offers an extra‑long arm while maintaining a relatively compact and rigid structure.
With a maximum payload of 10 kg and a reach of 2,550 mm, the IRB 4400L‑10/2.55 is ideal for tasks involving large work envelopes, difficult access areas, and wide automation cells. Its advanced mechanical design ensures smooth trajectories, stable accuracy, and consistent repeatability, even at full extension and during continuous operation.
Powered by the ABB IRC5 controller, the robot benefits from ABB’s advanced motion technologies, including TrueMove™ and QuickMove™, enabling accurate path following, synchronized movements, and optimized cycle times. The long‑reach configuration makes this robot particularly suitable for applications requiring coverage of large fixtures or multiple workstations from a single base position.
The ABB IRB 4400L‑10/2.55 is a reliable solution for manufacturers seeking extended reach automation without moving to heavy‑payload robot classes.
Robot applications
TECHNICAL DATA – ABB IRB 4400L‑10/2.55
- Robot type: 6‑axis articulated industrial robot (long‑reach version)
- Maximum payload: 10 kg
- Maximum reach: 2,550 mm
- Repeatability: ±0.06 mm
- Number of axes: 6
- Robot weight: approx. 430 kg
- Protection rating: IP54 (higher protection available depending on configuration)
- Controller: ABB IRC5
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Installation options: Floor mounting (standard)
TYPICAL APPLICATIONS
- Machine tending over large work areas
- Material handling with extended reach
- Spot welding
- Dispensing and sealing
- Assembly on large fixtures
- Automotive and general manufacturing
- Multi‑station automation cells
