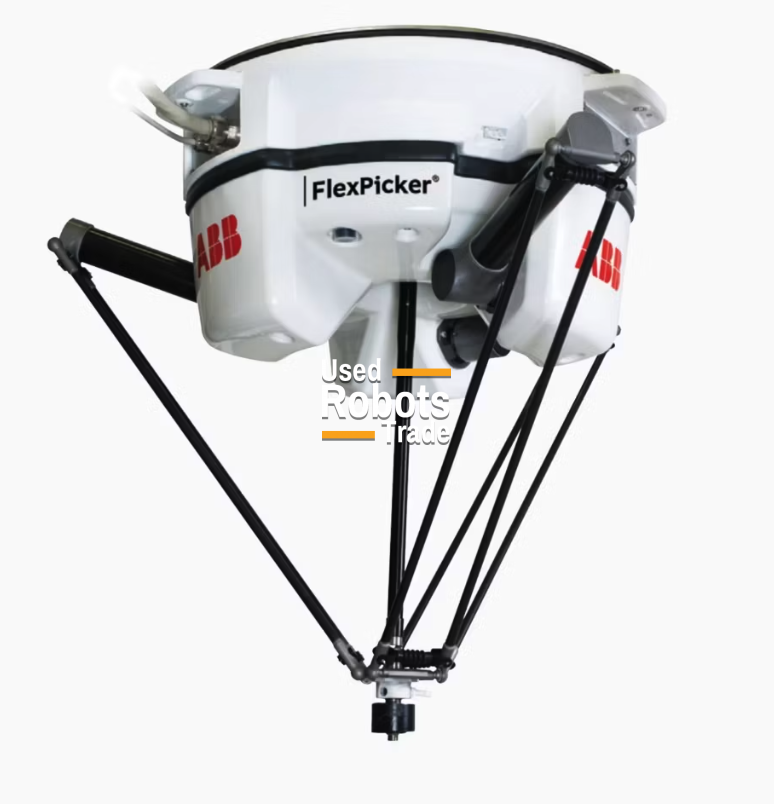

ABB IRB 390 FLEX PACKER
Robot details
The ABB IRB 390 FLEXPICKER® is a high‑speed delta robot specifically designed for ultra‑fast pick and place operations in packaging, food, pharmaceutical, and consumer goods industries. Built on ABB’s proven FLEXPICKER® platform and controlled by the ABB IRC5 controller, the IRB 390 delivers exceptional speed, accuracy, and reliability in high‑throughput production environments.
Thanks to its delta kinematics, the IRB 390 achieves extremely short cycle times, making it ideal for applications requiring continuous high‑speed sorting, picking, and positioning of lightweight products. The robot is designed for overhead mounting, allowing full use of the working area while keeping conveyors and equipment unobstructed.
The combination of ABB PickMaster® software and the IRC5 controller ensures advanced motion control, vision integration, and easy synchronization with conveyors and external equipment. The robot’s compact and hygienic design also makes it suitable for wash‑down environments and strict hygiene standards.
The ABB IRB 390 FLEXPICKER® is a proven solution for manufacturers who need maximum productivity, precision, and uptime in fast‑paced automation cells.
Robot applications
TECHNICAL DATA – ABB IRB 390 FLEXPICKER®
- Robot type: Delta robot (parallel kinematics)
- Number of axes: 4 axes
- Maximum payload: up to 10 kg (application‑dependent)
- Working envelope: Large cylindrical work area optimized for conveyor tracking
- Repeatability: ±0.1 mm
- Robot mounting: Ceiling / overhead mounting
- Protection rating: IP54 (IP67 available for selected versions)
- Controller: ABB IRC5
- Software: ABB PickMaster®, conveyor tracking and vision support
- Motion performance: Ultra‑high‑speed optimized for pick & place cycles
TYPICAL APPLICATIONS
- High‑speed pick and place
- Packaging and repackaging
- Sorting and singulation
- Food and beverage processing
- Pharmaceutical packaging
- Cosmetics and consumer goods
- Conveyor tracking applications
- Vision‑guided robotic picking
