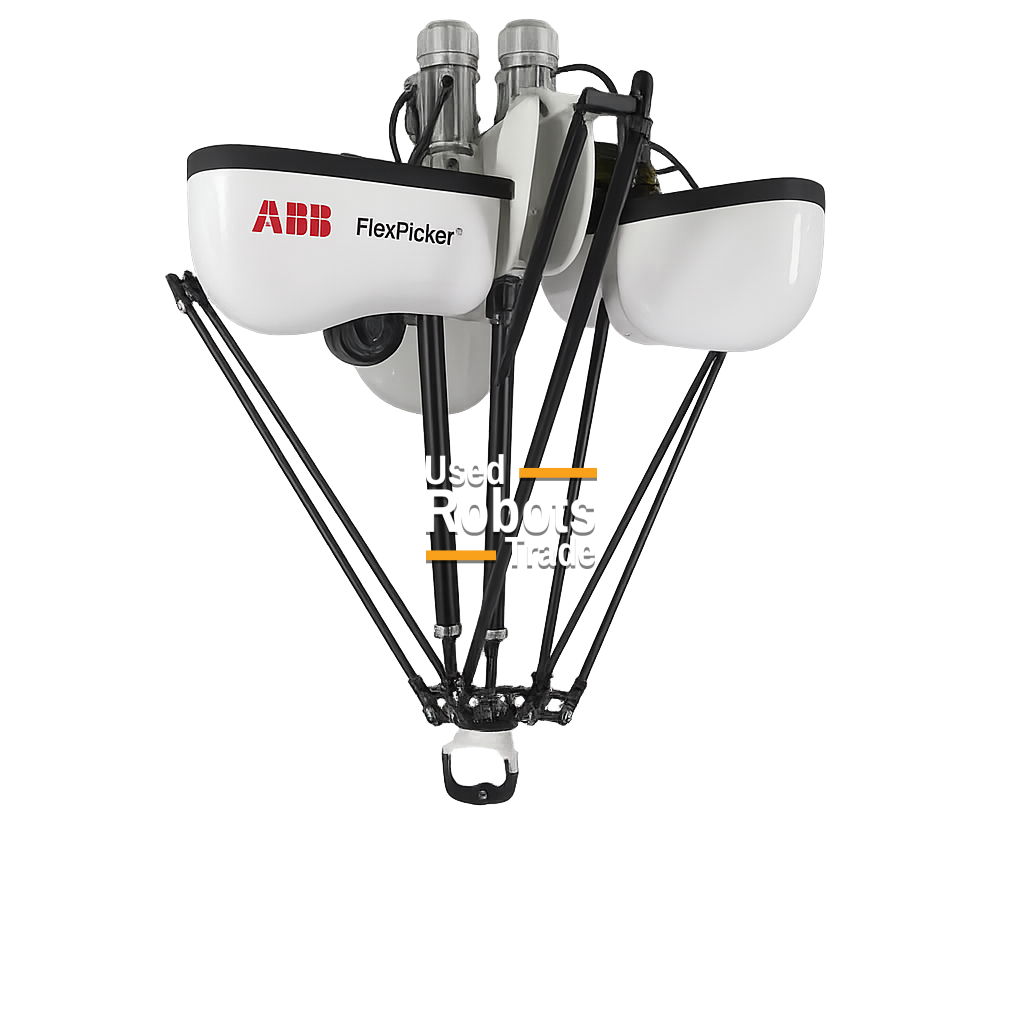

ABB IRB 360 FLEXPICKER 6/1600
Robot details
The ABB IRB 360 FLEXPICKER® 6/1600 is a high‑speed delta robot designed for fast and reliable pick & place applications that require a combination of higher payload capacity and extended working range. As part of ABB’s industry‑leading FLEXPICKER® family, this model delivers exceptional performance, precision, and uptime in demanding production environments.
With a maximum payload of 6 kg and a large working diameter of 1,600 mm, the IRB 360 6/1600 is ideal for handling medium‑weight products over wide conveyor areas, while maintaining extremely short cycle times. Its parallel kinematic (delta) design enables high acceleration, smooth motion, and stable operation even in continuous 24/7 production cycles.
The robot is designed for overhead (ceiling) mounting, keeping conveyors and processing equipment unobstructed and allowing efficient cell layouts. Powered by the ABB IRC5 controller and fully compatible with ABB PickMaster® software, the IRB 360 supports advanced vision‑guided picking, conveyor tracking, and seamless synchronization with high‑speed packaging lines.
The ABB IRB 360 FLEXPICKER® 6/1600 is a proven and flexible solution for manufacturers looking to increase throughput while maintaining accuracy and reliability in large pick & place workspaces.
Robot applications
TECHNICAL DATA – ABB IRB 360 FLEXPICKER® 6/1600
- Robot type: Delta robot (parallel kinematics)
- Number of axes: 4 axes
- Maximum payload: 6 kg
- Working diameter: 1,600 mm
- Repeatability: ±0.1 mm
- Robot mounting: Overhead / ceiling mounted
- Protection rating: IP54 (IP67 available for selected food‑grade versions)
- Controller: ABB IRC5
- Software compatibility: ABB PickMaster®, vision systems, conveyor tracking
- Motion performance: Ultra‑high‑speed pick & place optimized for large working areas
TYPICAL APPLICATIONS
- High‑speed pick and place
- Sorting and singulation
- Packaging and repackaging
- Food, confectionery, and bakery products
- Pharmaceutical and medical packaging
- Cosmetics and personal care products
- Conveyor tracking applications
- Vision‑guided robotic picking over wide conveyors
