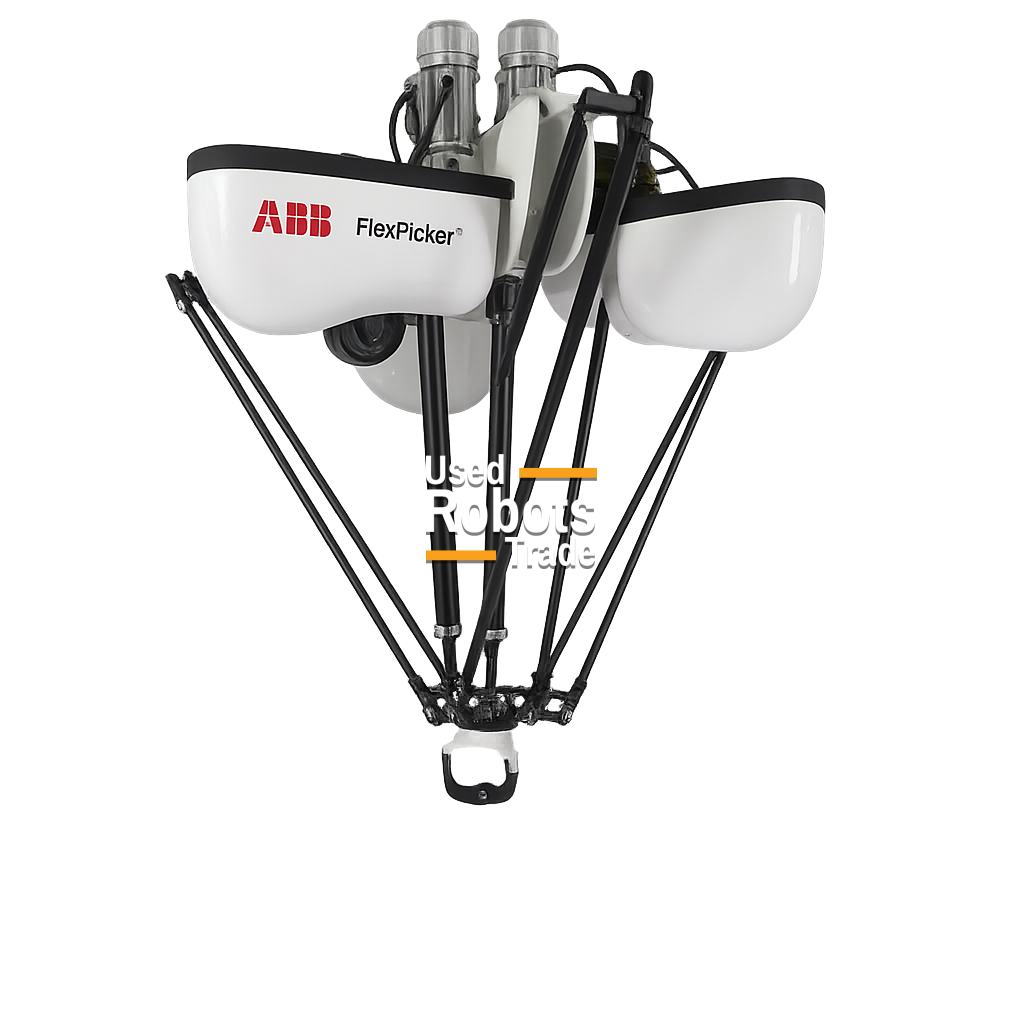

ABB IRB 360 FLEXPICKER 3-8/1130
Robot details
The ABB IRB 360 FLEXPICKER® 3‑8/1130 is a high‑speed delta robot designed for flexible pick and place applications where different payload requirements must be handled within the same automation platform. As part of ABB’s industry‑proven FLEXPICKER® family, this robot offers exceptional speed, accuracy, and reliability for demanding high‑throughput production environments.
The 3‑8/1130 designation indicates support for payloads ranging from 3 kg up to 8 kg, combined with a working diameter of 1,130 mm, making the IRB 360 extremely versatile for applications involving products of varying weights. Its parallel kinematic (delta) design enables ultra‑fast acceleration, short cycle times, and smooth motion even during continuous 24/7 operation.
Designed for overhead (ceiling) mounting, the robot maximizes available workspace and keeps conveyors and production equipment unobstructed. When integrated with the ABB IRC5 controller and PickMaster® software, the IRB 360 FLEXPICKER® supports advanced vision‑guided picking, conveyor tracking, and real‑time synchronization with high‑speed production lines.
The ABB IRB 360 FLEXPICKER® 3‑8/1130 is a proven solution for manufacturers seeking high‑speed automation with configurable payload capability and consistent industrial performance.
Robot applications
TECHNICAL DATA – ABB IRB 360 FLEXPICKER® 3‑8/1130
- Robot type: Delta robot (parallel kinematics)
- Number of axes: 4 axes
- Maximum payload: 3–8 kg (configuration‑dependent)
- Working diameter: 1,130 mm
- Repeatability: ±0.1 mm
- Robot mounting: Overhead / ceiling mounted
- Protection rating: IP54 (IP67 available for selected food‑grade versions)
- Controller: ABB IRC5
- Software compatibility: ABB PickMaster®, vision systems, conveyor tracking
- Motion performance: Ultra‑high‑speed optimized for flexible pick & place operations
TYPICAL APPLICATIONS
- High‑speed pick and place
- Sorting and singulation
- Packaging and repackaging
- Food, confectionery, and bakery products
- Pharmaceutical and medical packaging
- Cosmetics and personal care products
- Conveyor tracking applications
- Vision‑guided robotic picking
