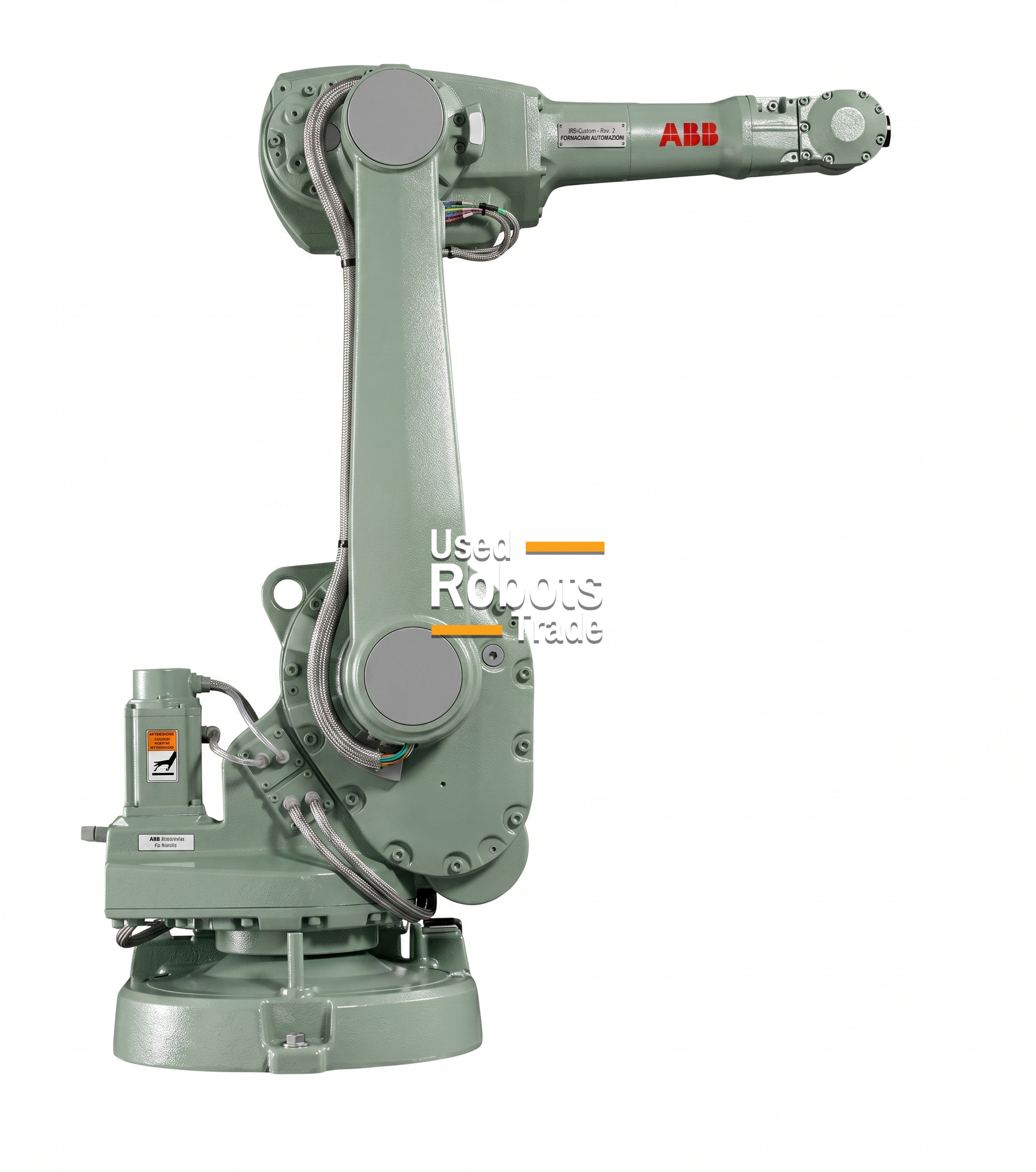

ABB IRB 1600 6/1.20-1.45 - 10/1.20-1.45
Robot details
The ABB IRB 1600 is a high‑performance 6‑axis industrial robot, designed to deliver an excellent combination of speed, accuracy, payload capacity, and flexibility. Available in multiple configurations, the IRB 1600 series covers payloads from 6 to 10 kg and reaches from 1,200 mm up to 1,450 mm, making it suitable for a wide range of industrial automation tasks.
Optimized for high‑speed production, the IRB 1600 features a rigid mechanical structure and powerful motors that enable fast acceleration, smooth motion, and stable path accuracy, even in demanding, high‑duty cycles. Its compact footprint allows easy integration into dense production layouts while maintaining a generous working envelope.
Powered by the ABB IRC5 controller, the IRB 1600 benefits from ABB’s advanced motion technologies such as TrueMove™ and QuickMove™, ensuring precise trajectory control, synchronized axis movement, and reduced cycle times. The robot supports multiple mounting configurations and can be adapted for different industrial environments.
The ABB IRB 1600 is an ideal solution for manufacturers seeking a reliable, fast, and versatile mid‑range industrial robot.
Robot applications
TECHNICAL DATA – ABB IRB 1600 SERIES
- Robot type: 6‑axis articulated industrial robot
- Payload options: 6 kg / 10 kg
- Reach options: 1,200 mm / 1,450 mm
- Repeatability: ±0.02 mm
- Number of axes: 6
- Robot weight: approx. 250 kg
- Protection rating: IP40 (higher protection available depending on configuration)
- Controller: ABB IRC5 / IRC5 Compact
- Motion control: ABB QuickMove™ and TrueMove™ technologies
- Installation options: Floor, wall, inverted, angled mounting
TYPICAL APPLICATIONS
- Machine tending (CNC, die casting, injection molding)
- High‑speed material handling
- Pick and place operations
- Assembly and sub‑assembly
- Packaging and pallet preparation
- General industrial automation
- Automotive and metalworking processes
